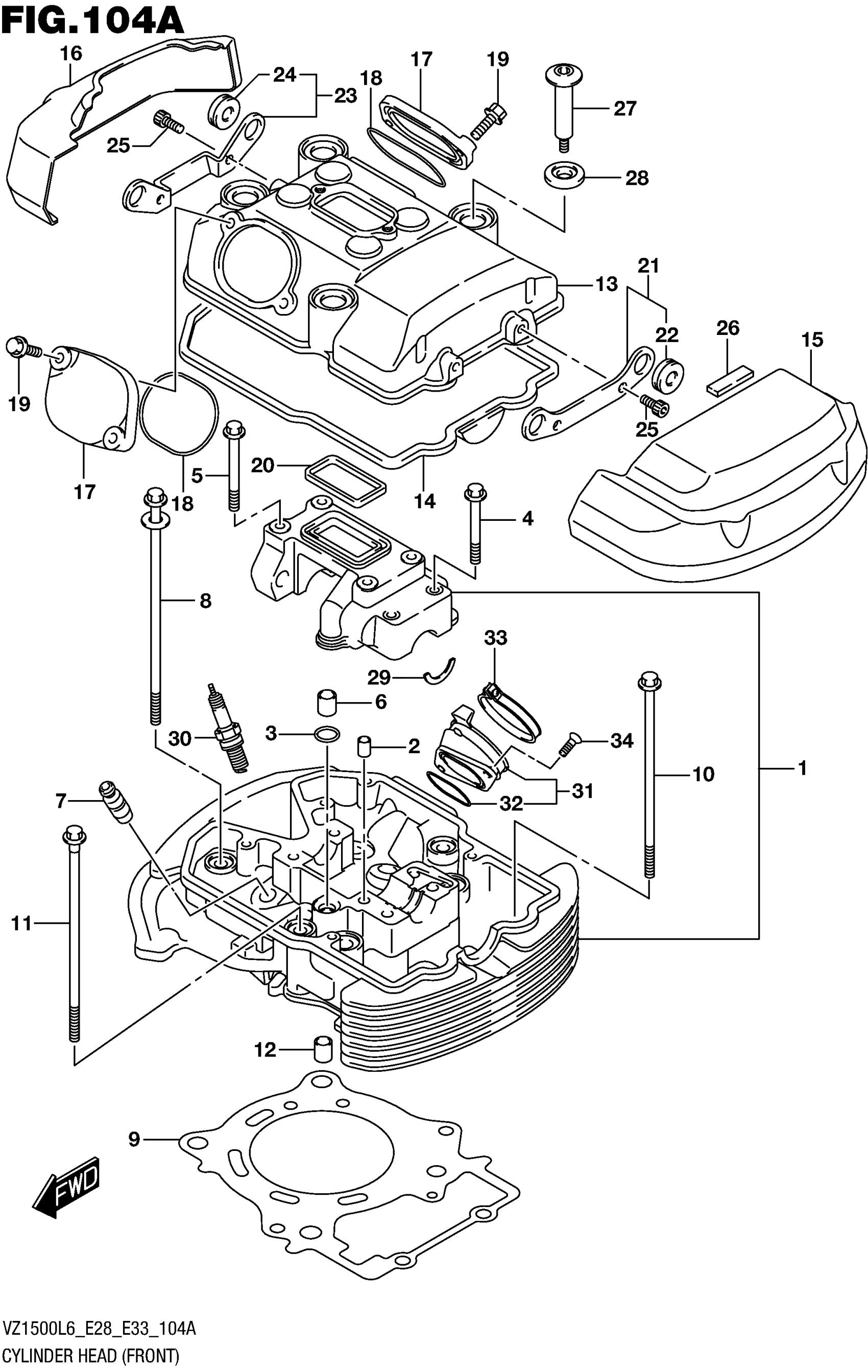

Suzuki VZ1500L6 (2016) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT

11101-40H00

Unavailable

2

.PIN (8X11)

09206-08001

$1.78

3

.O RING (D:2.4,ID:10.8)

09280-11001

$1.98

4

BOLT

01547-0650A

$2.46

5

BOLT

01547-0665A

$2.32

6

.PIN

04211-11129

$1.76

7

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$33.35

8

BOLT, CYLINDER HEAD

11117-05H00

$15.67

9

GASKET, CYLINDER HEAD FRONT

11141-40H00

$64.68

10

BOLT (8X160)

09103-08528

$7.42

11

BOLT (8X180)

09103-08529

$8.08

12

PIN

04211-13189

$2.19

13

COVER, CYLINDER HEAD

11171-40H00

Unavailable

14

GASKET, CYLINDER HEAD COVER

11173-40H00

$27.96

15

CAP, CYLINDER HEAD COVER NO.1

11174-40H00

$122.58

16

CAP, CYLINDER HEAD COVER NO.2

11175-40H00

$99.63

17

CAP, INSPECTION

11176-40H00

Unavailable

18

O RING (D:2.4,ID:23)

09280-60004

$3.76

19

BOLT

01547-0620A

$2.03

20

GASKET, CYLINDER HEAD COVER

11177-40H00

$8.28

21

BRACKET, HEAD COVER CAP NO.1

11180-40H00

Unavailable

22

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

23

BRACKET, HEAD COVER CAP NO.2

11180-40H10

Unavailable

24

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

25

BOLT

07130-0612A

$2.50

26

CUSHION, HEAD COVER CAP

94424-03H00

Unavailable

27

BOLT (7X57)

09106-07022

$9.10

28

WASHER

11191-27E00

$4.27

29

C-RING

09390-22002

$2.27

30-1

SPARK PLUG (CR6E) | NGK

09482-00528

$6.47

30-2

SPARK PLUG (U20ESR-N) | DENSO

09482-00529

$7.27

30-3

SPARK PLUG (CR7E) | OPT

09482-00516

$6.47

30-3

SPARK PLUG (CR7E) | NGK

09482-00516

$6.47

30-4

SPARK PLUG (U22ESR-N) | OPT

09482-00515

$5.97

30-4

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

$5.97

31

PIPE ASSY, INTAKE

13101-40H00

Unavailable

32

.O RING (D:2.4,ID:44.7)

09280-45004

$3.68

33

CLAMP

13170-40H01

Unavailable

34

BOLT (6X20.5)

09120-06008

$3.05
