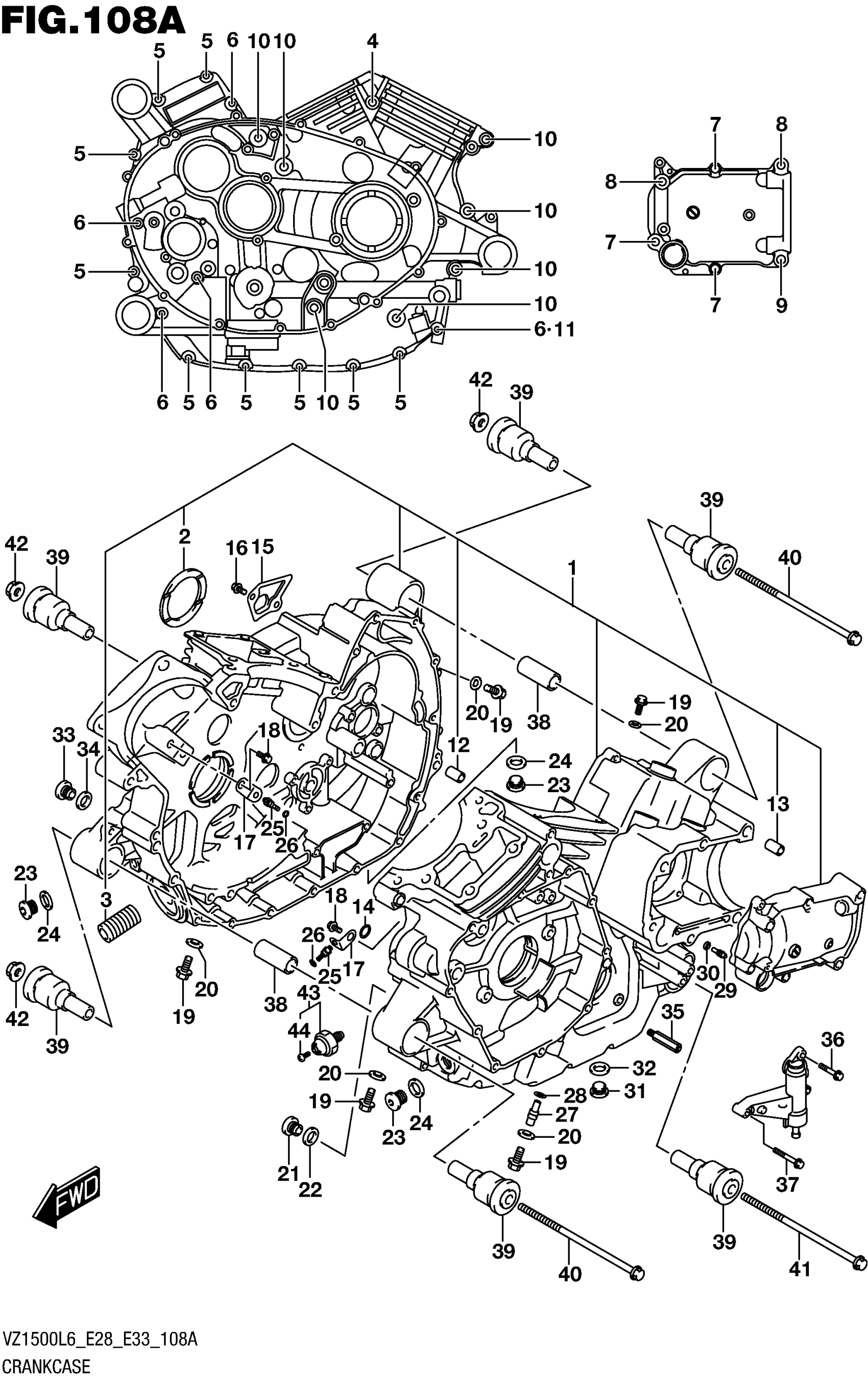

Suzuki VZ1500L6 (2016) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-40871

$3,447.43

2-1

.BEARING, CRANK THRUST

12228-40H00-0A0

Unavailable

2-1

(T:1.925)

12228-40H00-0A0

Unavailable

2-2

.BEARING, CRANK THRUST

12228-40H00-0B0

Unavailable

2-2

(T:1.950)

12228-40H00-0B0

Unavailable

2-3

.BEARING, CRANK THRUST

12228-40H00-0C0

Unavailable

2-3

(T:1.975)

12228-40H00-0C0

Unavailable

2-4

.BEARING, CRANK THRUST

12228-40H00-0D0

Unavailable

2-4

(T:2.000)

12228-40H00-0D0

Unavailable

2-5

.BEARING, CRANK THRUST

12228-40H00-0E0

Unavailable

2-5

(T:2.025)

12228-40H00-0E0

Unavailable

2-6

.BEARING, CRANK THRUST

12228-40H00-0F0

Unavailable

2-6

(T:2.050)

12228-40H00-0F0

Unavailable

3

UNION,OIL STAND

16591-06B01

$7.05

4

.BOLT (8X110)

09103-08134

$3.40

5

BOLT

01547-0645A

$2.42

6

.BOLT

01547-0685A

Unavailable

7

.BOLT

01550-0845A

$3.14

8

.BOLT

01550-0860A

$4.17

9

.BOLT

01550-0870A

$4.32

10

.BOLT

01550-0880A

$3.61

11

.GASKET (5.8X13X1.2)

09168-06023

$2.35

12

PIN,CRANKCASE

11319-33E50

$5.32

13

.PIN (8.4X11X20)

09206-11007

$2.37

14

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

15

PLATE, OIL SEPARATOR

11313-40H00

Unavailable

16

BOLT

01547-0612A

$2.03

17

PLATE, PISTON JET REAR

16439-38B00

Unavailable

18

BOLT

01547-0612A

$2.03

19

BOLT (8X12)

01550-0812A

$2.32

20

GASKET (8.2X14X1)

09168-08016

$1.65

21

PLUG (10X10)

09248-10010

$4.17

22

GASKET (10X14X3.6)

09168-10002

$2.13

23

PLUG (16X8)

09248-16012

$4.64

24

GASKET (16X22X2)

09168-16002

$1.91

25

JET, PISTON-COOLING (0.8)

09493-80009

$20.72

26

O RING (D:1.2,ID:4)

09280-04004

$1.91

27

JET(12)

09493-24009

Unavailable

28

O RING (D:1.2,ID:4)

09280-04004

$1.91

29

JET, OIL GALY

09493-36004

$16.87

30

O RING (D:1.2,ID:4)

09280-04004

$1.91

31

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

32

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

33

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

34

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

35

BOLT, SEC DRIVE UNIT COVER

11372-22H00

$15.00

36

BOLT

01547-0620A

$2.03

37

BOLT

01547-0630A

$2.32

38

SPACER, ENGINE MOUNTING

11611-48G00

Unavailable

39

BUSH, ENGINE MOUNTING

11652-40H00

$30.22

40

BOLT (10X215)

09103-10041-A05

$10.40

41

BOLT (10X195)

09103-10118

$11.56

42

NUT

08319-3110A

$2.73

43

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

44

.BOLT

37822-33D00

$4.35
