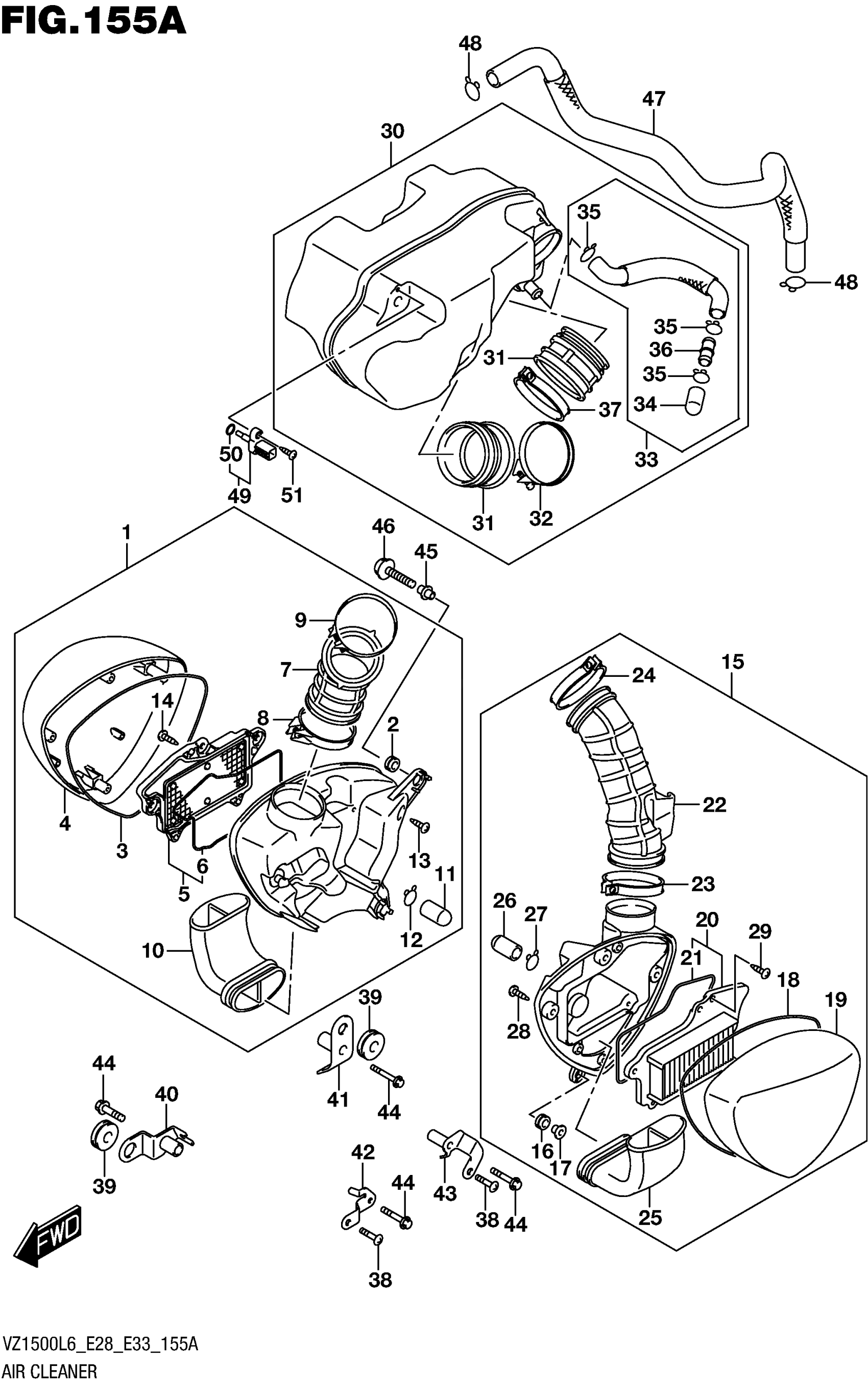

Suzuki VZ1500L6 (2016) AIR CLEANER Diagram

#

Description
Price

1

CLEANER, AIR RH

13701-40H20

Unavailable

2

.CUSHION

09320-09016

$1.97

3

.GASKET

13756-40H00

$7.77

4

.CAP, AIR CLEANER

13741-40HB0

$223.45

5

.FILTER ASSY

13780-40H00

$39.02

6

..GASKET

13787-40H00

$6.75

7

.TUBE, JOINT RH

13738-40H00

$101.83

8

.CLAMP

13826-40HA0

$16.08

9

.CLAMP

13826-40H00

Unavailable

10

.TUBE, INLET

13891-40H01

Unavailable

11

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

12

.CLIP

09401-14101

$2.37

13

.SCREW

03211-0520A

$2.88

14

.SCREW

03541-0516A

$1.37

15

CLEANER, AIR LH

13702-40HB0

$491.73

16

.CUSHION

09320-09016

$1.97

17

.COLLAR

13812-29C50

$3.05

18

.GASKET

13756-40H00

$7.77

19

.CAP, AIR CLEANER

13741-40HB0

$223.45

20

.FILTER ASSY

13780-40H00

$39.02

21

..GASKET

13787-40H00

$6.75

22

.TUBE, JOINT LH

13739-40H00

$101.83

23

.CLAMP

13826-40HA0

$16.08

24

CLAMP,INTAKE PIPE

13827-40H01

$17.33

25

.TUBE, INLET

13891-40H01

Unavailable

26

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

27

.CLIP

09401-14101

$2.37

28

.SCREW

03211-0520A

$2.88

29

.SCREW

03541-0516A

$1.37

30

CHAMBER, AIR CLEANER

13710-40H01

Unavailable

31

.TUBE, OUTLET

13881-40H01

Unavailable

32

.CLAMP

13170-39H00

Unavailable

33

.TUBE, DRAIN

13870-40H00

Unavailable

34

.PLUG

13859-41B10

$6.94

35

..CLIP

09401-14101

$2.37

36

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$9.35

37

.CLAMP

13826-40HB0

Unavailable

38

SCREW (6X20)

09139-06056

$2.95

39

CUSHION

09320-08028

$2.80

40

BRACKET, RH NO.1

13760-40H00

Unavailable

41

BRACKET, LH NO.1

13770-40H00

Unavailable

42

BRACKET, LH NO.2

13770-40H11

$22.08

43

BRACKET, LH NO.3

13770-40H20

$21.62

44

BOLT (6X30)

09103-06509

Unavailable

45

SPACER

13838-40H00

Unavailable

46

SCREW (6X35)

09136-06167

$5.42

47

TUBE, BREATHER

13850-40H00

Unavailable

48

CLIP

09401-20405

$4.43

49

SENSOR, AIR TEMP

13650-41F10

$71.40

50

O-RING

13655-41F10

Unavailable

51

SCREW

03511-0516B

$2.29
