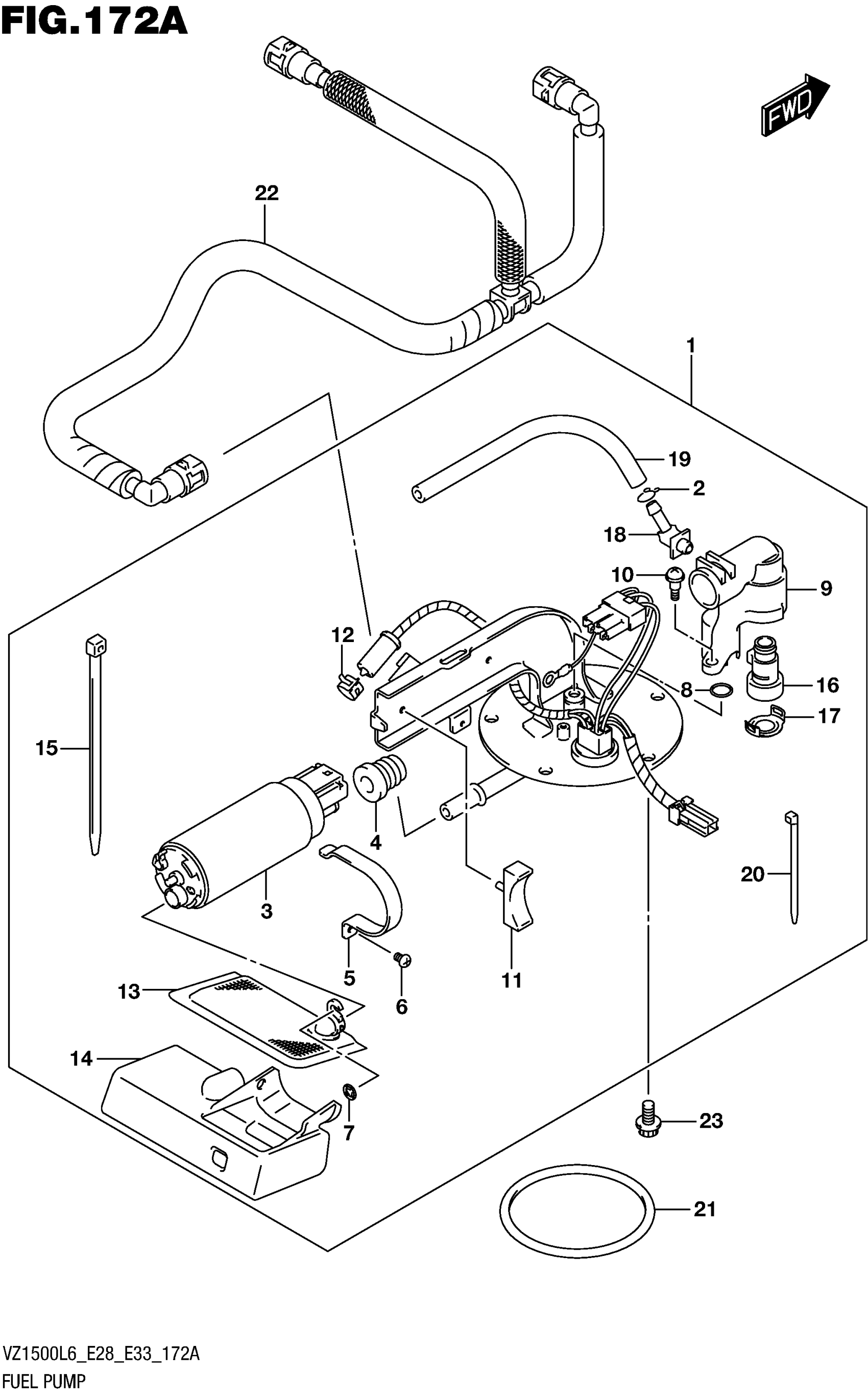

Suzuki VZ1500L6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-40H00.

15100-40H01

$637.07

2

.CLIP

13693-24F00

$3.62

3

.PUMP

15110-48G00

$508.25

4

.INSULATOR This part replaces 15114-48G00.

15114-48G01

$23.10

5

.HOLDER

15115-14G00

Unavailable

6

.SCREW

15116-48G00

$6.30

7

.PLATE

15119-14G00

$6.08

8

.O RING

15125-48G00

$16.10

9

.ADAPTER

15131-48G00

Unavailable

10

.SCREW

15135-48G00

Unavailable

11

.INSULATOR

15141-48G00

Unavailable

12

.CLAMP

15175-48G00

Unavailable

13

.FILTER

15420-22H00

$113.37

14

.COVER

15425-40H00

Unavailable

15

.BAND

15426-48G00

$14.47

16

.REGULATOR

15610-48G00

$224.25

17

.CLIP

15613-48G00

Unavailable

18

.JOINT

15614-48G00

Unavailable

19

.HOSE

15615-48G00

$28.58

20

.BAND

13432-43E00

Unavailable

21

O-RING

15201-35F00

$25.27

22

HOSE

15810-40H01

$203.92

23

BOLT

07120-0612A

$2.50
