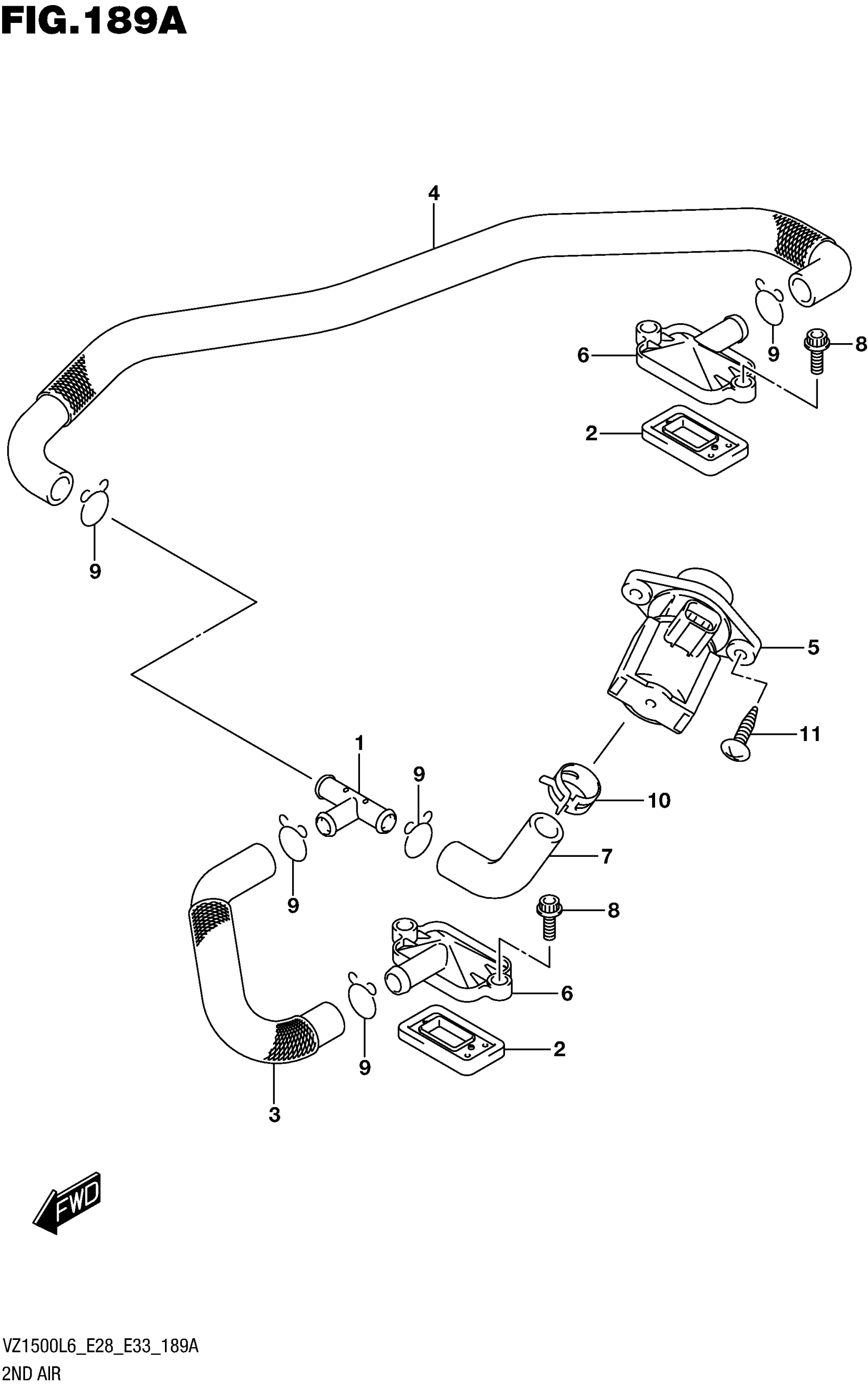

Suzuki VZ1500L6 (2016) 2ND AIR Diagram

#

Description
Price

1

UNION, 2ND AIR HOSE

13855-18A03

$5.50

2

.VALVE ASSY,2ND AIR REED

18450-06G00

$36.82

3

HOSE

18461-40H00

Unavailable

4

HOSE

18471-40H00

Unavailable

5

VALVE ASSY,AIR CUT This part replaces 18510-27G01.

18510-27G02

$91.03

6

COVER

18531-49F00

Unavailable

7

HOSE

18711-40H00

Unavailable

8

BOLT (6X20)

09103-06201

$2.64

9

CLIP

09401-15101

$2.26

10

CLIP

09401-17401

$3.08

11

SCREW

03541-0520A

$1.80
