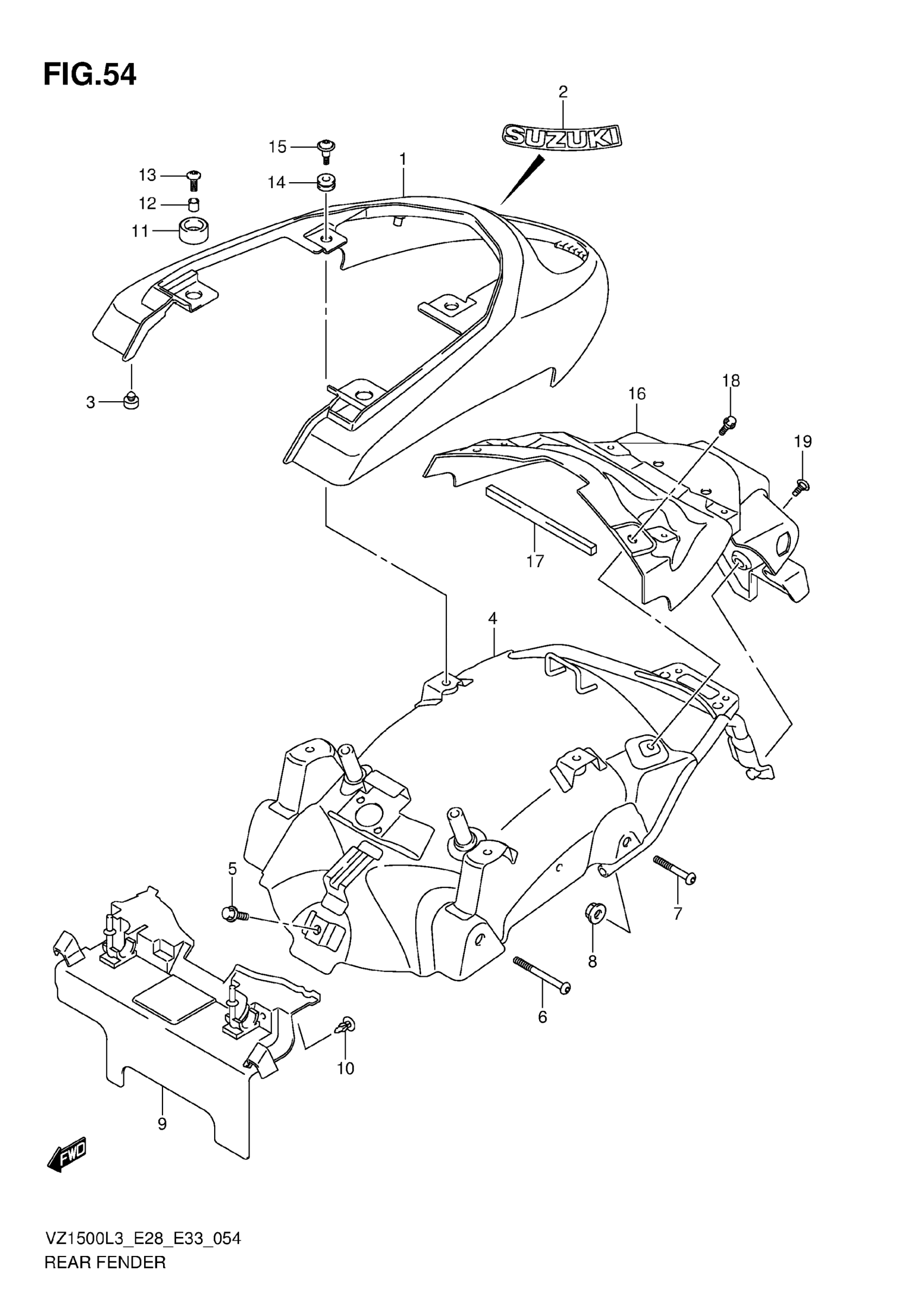

Suzuki VZ1500L3 (2013) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-40H00-YLF.

63110-40H01-YLF

$387.25

1

FENDER, REAR (BLACK)

63110-40H00-YVB

Unavailable

2

.EMBLEM,SUZUKI (SILVER) This part replaces 68641-19F00-YES.

68641-19F01-YES

$10.10

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

4

BRACE, FENDER

63140-40H10

$431.08

5

BOLT (8X12)

01550-0812A

$2.32

6

BOLT (8X70)

09106-08182

$4.17

7

BOLT (8X50)

09106-08183

$3.70

8

NUT

08316-1008A

$2.45

9

MUDGUARD, FRONT

63112-40H00

Unavailable

10

CLIP

09409-06318

Unavailable

11

CUSHION

09320-10045

$3.76

12

SPACER (6.5X10X9.4)

09180-06286

$2.50

13

SCREW (6X16)

09139-06139

$3.23

14

CUSHION

09320-09016

$1.97

15

BOLT (6X20)

09139-06190

$4.17

16

EXTENSION

63311-40H00

$96.22

17

CUSHION

47161-29B00

$7.50

18

BOLT (6X12)

09111-06107

$2.60

19

SCREW (6X12)

09139-06144

$2.50
