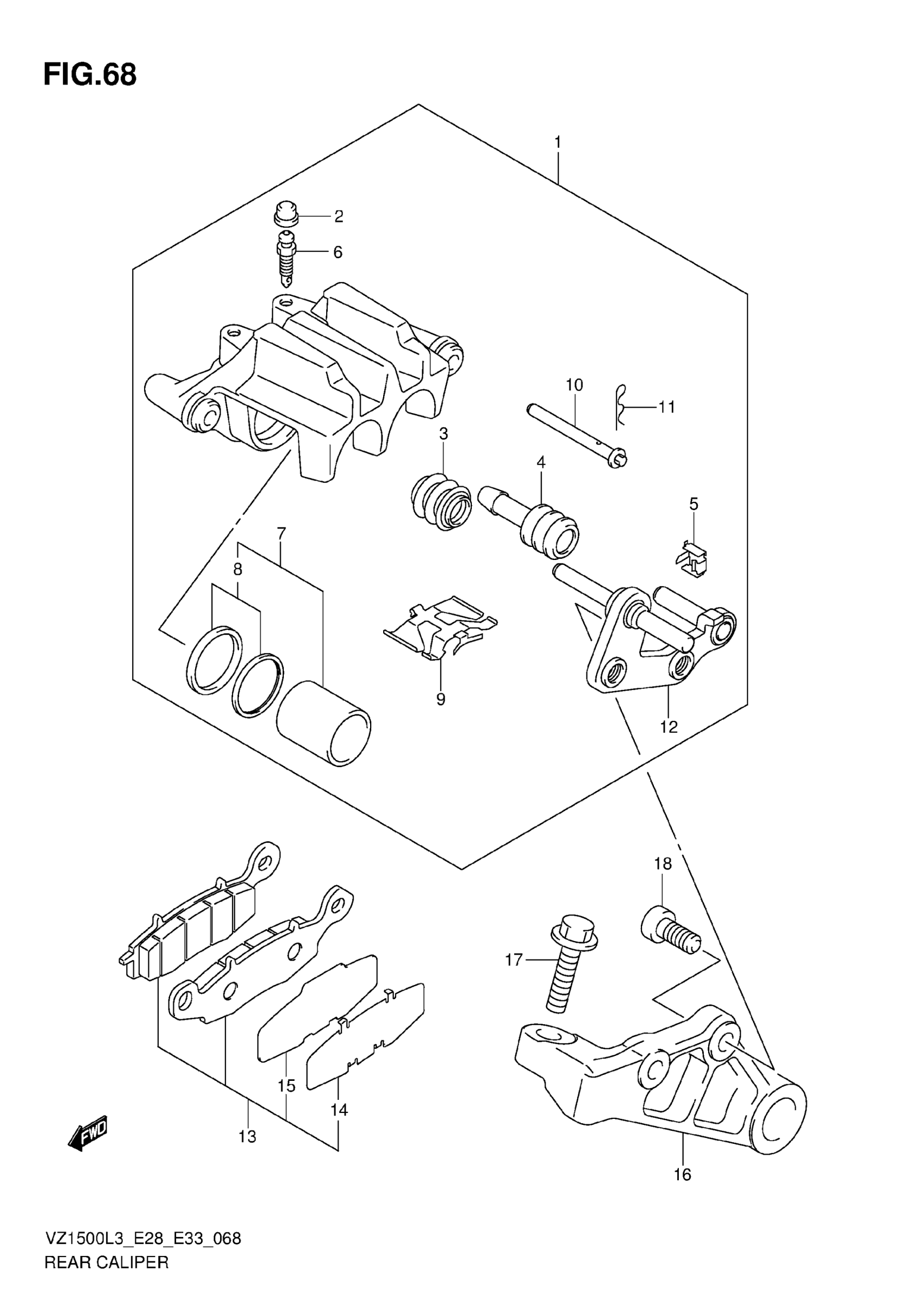

Suzuki VZ1500L3 (2013) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-01D40-999

$440.57

2

CAP, BLEEDER PLUG

55156-66310

$4.73

3

BOOT, AXLE

59112-44B00

$8.15

4

INSULATOR, AXLE

59113-01D00

$11.48

5

.GUIDE, PAD

59116-33D00

$7.51

6

BLEEDER

59121-03B00

$23.17

7

PISTON SET

69100-01840

$140.80

8

SEAL SET, PISTON

59300-33841

$14.15

9

SPRING, PAD

69115-01D40

$20.72

10

PIN, PAD

69141-01D40

$14.10

11

.CLIP, PAD PIN

69142-45000

$3.97

12

CARRIER, CALIPER

69150-01D40

Unavailable

13

PAD & SHIM SET

69100-01890

$93.65

14

.SHIM, PAD NO.2

59172-33D00

$18.93

15

INSULATOR

69172-01D40

$29.25

16

BRACKET, REAR CALIPER

69721-48G30

Unavailable

17

BOLT (12X40)

09103-12109

$5.75

18

BOLT (10X20)

09106-10062

Unavailable
