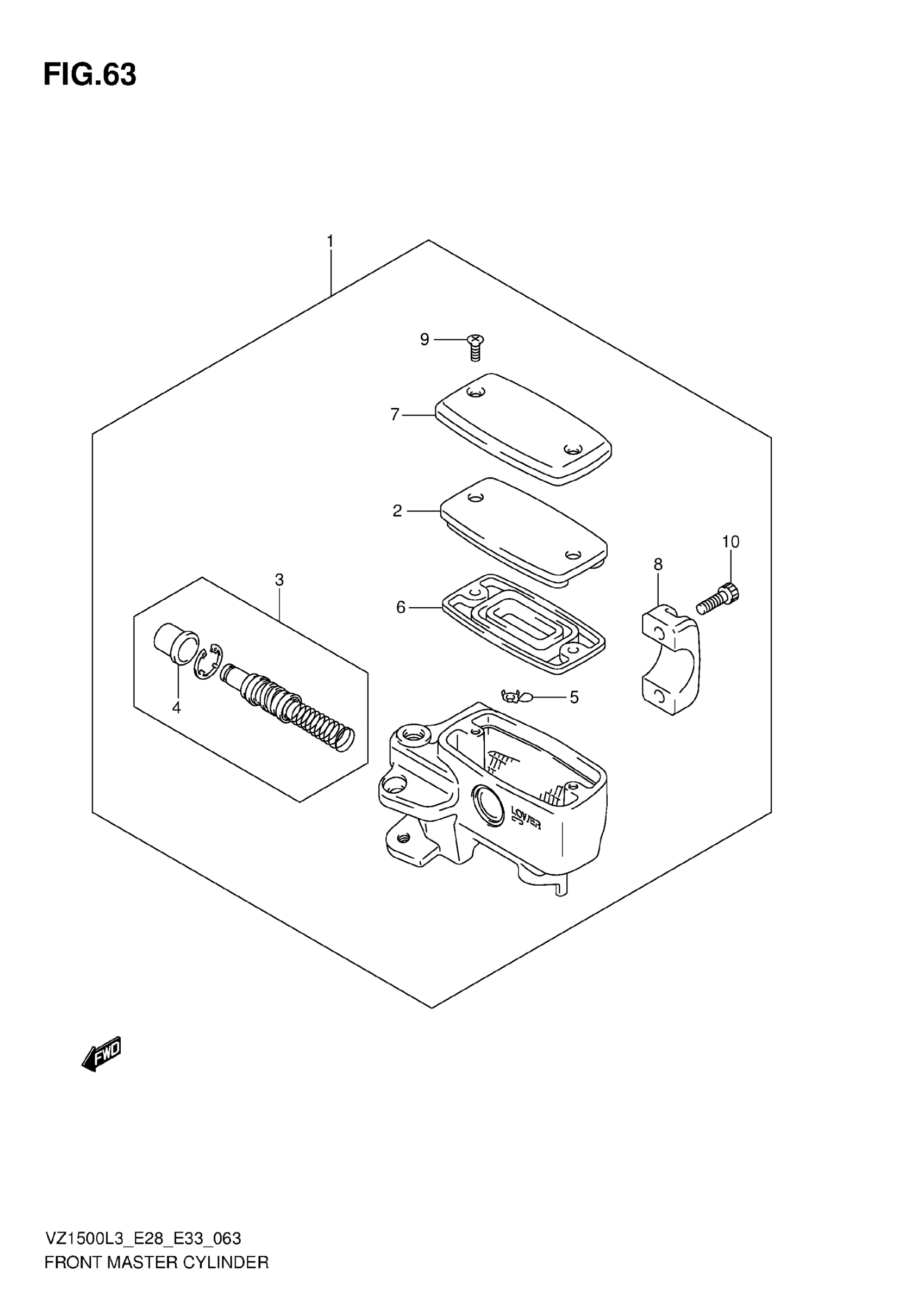

Suzuki VZ1500L3 (2013) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10F61

$468.58

2

PLATE, DIAPHRAGM

57437-10F00

$23.73

3

PISTON/CUP SET

59601-45810

$61.78

4

BOOT

59666-44300

$5.30

5

PROTECTOR

59664-32F00

$13.20

6

DIAPHRAGM

59667-10F00

$11.40

7

CAP

59669-10F10

$64.25

8

HOLDER

59671-10F00

$55.50

9

SCREW

02122-04127

$1.97

10

BOLT

07130-06207

$2.80
