Description

Price

1

COVER, THERMOSTAT

17661-48G10

$29.83

2

CONNECTOR, HERMOSTAT INLET

17662-40H00

Unavailable

3

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$25.77

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

5

BOLT

01547-0620A

$2.03

6

BOLT

01547-0625A

$2.01

7

HOSE, RADIATOR INLET

17851-40H10

$26.40

8

HOSE, RADIATOR OUTLET

17852-40H00

$50.10

9

HOSE, CYLINDER INLET

17853-40H00

Unavailable

10

HOSE, WATER BYPASS UPPER

17854-40H00

Unavailable

11

HOSE, WATER BYPASS LOWER

17855-40H00

Unavailable

12

HOSE, REAR CYL HEAD OUTLET

17856-40H00

$23.63

13

HOSE, THERMOSTAT OUTLET

17857-40H00

Unavailable

14

HOSE, CONDUCTION

17858-40H00

$32.27

15

PIPE, CYL WATER INLET

17860-40H00

Unavailable

16

UNION

17890-06G20

$14.43

17

TANK ASSY, RESERVOIR

17910-40H00

Unavailable

18

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

19

HOSE, TANK OVERFLOW

17982-40H00

Unavailable

20

HOSE, TANK INLET NO.1

17981-40H00

Unavailable

21

HOSE (5X9X600) | L:600->500

09352-50901-600

$8.06

22

UNION

09364-06005

$5.72

23

BOLT (6X12)

09111-06085

$4.54

24

CLIP

09401-08411

$1.78

25

CLIP

09401-10411

$2.80

26

CLAMP (L:125)

09407-14403

$2.26

27

CLAMP (L:190)

09407-19401

$3.05

28

CAP

17730-14G00

$42.83

29

CONDUCTION

17791-14G00

$23.47

30

BOLT

01547-0512A

$1.49

31

BRACKET

17792-40H00

Unavailable

32

BOLT

01547-0612A

$2.03

33

SENSOR, WATER TEMP

13650-49X00

$90.19

34

GASKET (12X17X1)

09168-12017

$1.95

35

JOINT, 3 WAY

17891-48G00

$11.37

36

BOLT (6X16)

09103-06274

$2.03

37

BOLT

07130-0612A

$2.50

38

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

39

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

40

CLIP This part replaces 09401-12409.

09401-12414

$3.26

41

CLAMP

09402-32512

$12.85

42

CLAMP

09402-38512

$11.72

43

TAPE

63131-10F00

$14.02

44

LABEL, RADIATOR CAP

17995-14JP0

Unavailable

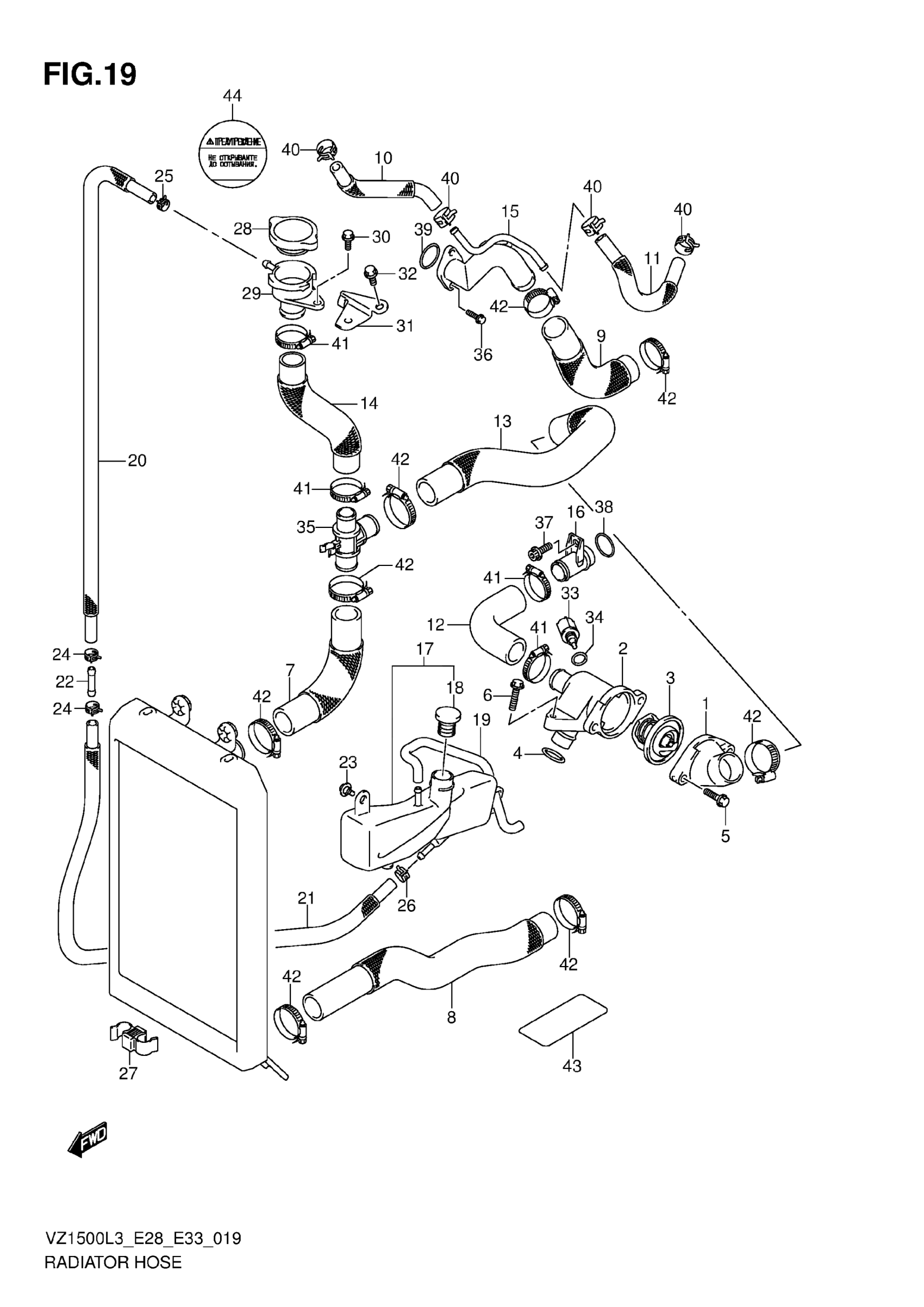

Suzuki VZ1500L3 (2013) RADIATOR HOSE Diagram

COVER, THERMOSTAT

CONNECTOR, HERMOSTAT INLET

THERMOSTAT,WATER This part replaces 17670-06G50.

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

BOLT

BOLT

HOSE, RADIATOR INLET

HOSE, RADIATOR OUTLET

HOSE, CYLINDER INLET

HOSE, WATER BYPASS UPPER

HOSE, WATER BYPASS LOWER

HOSE, REAR CYL HEAD OUTLET

HOSE, THERMOSTAT OUTLET

HOSE, CONDUCTION

PIPE, CYL WATER INLET

UNION

TANK ASSY, RESERVOIR

.CAP,RESERVOIR TANK

HOSE, TANK OVERFLOW

HOSE, TANK INLET NO.1

HOSE (5X9X600) | L:600->500

UNION

BOLT (6X12)

CLIP

CLIP

CLAMP (L:125)

CLAMP (L:190)

CAP

CONDUCTION

BOLT

BRACKET

BOLT

SENSOR, WATER TEMP

GASKET (12X17X1)

JOINT, 3 WAY

BOLT (6X16)

BOLT

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

O RING (D:2.4,ID:26.2)

CLIP This part replaces 09401-12409.

CLAMP

CLAMP

TAPE

LABEL, RADIATOR CAP
