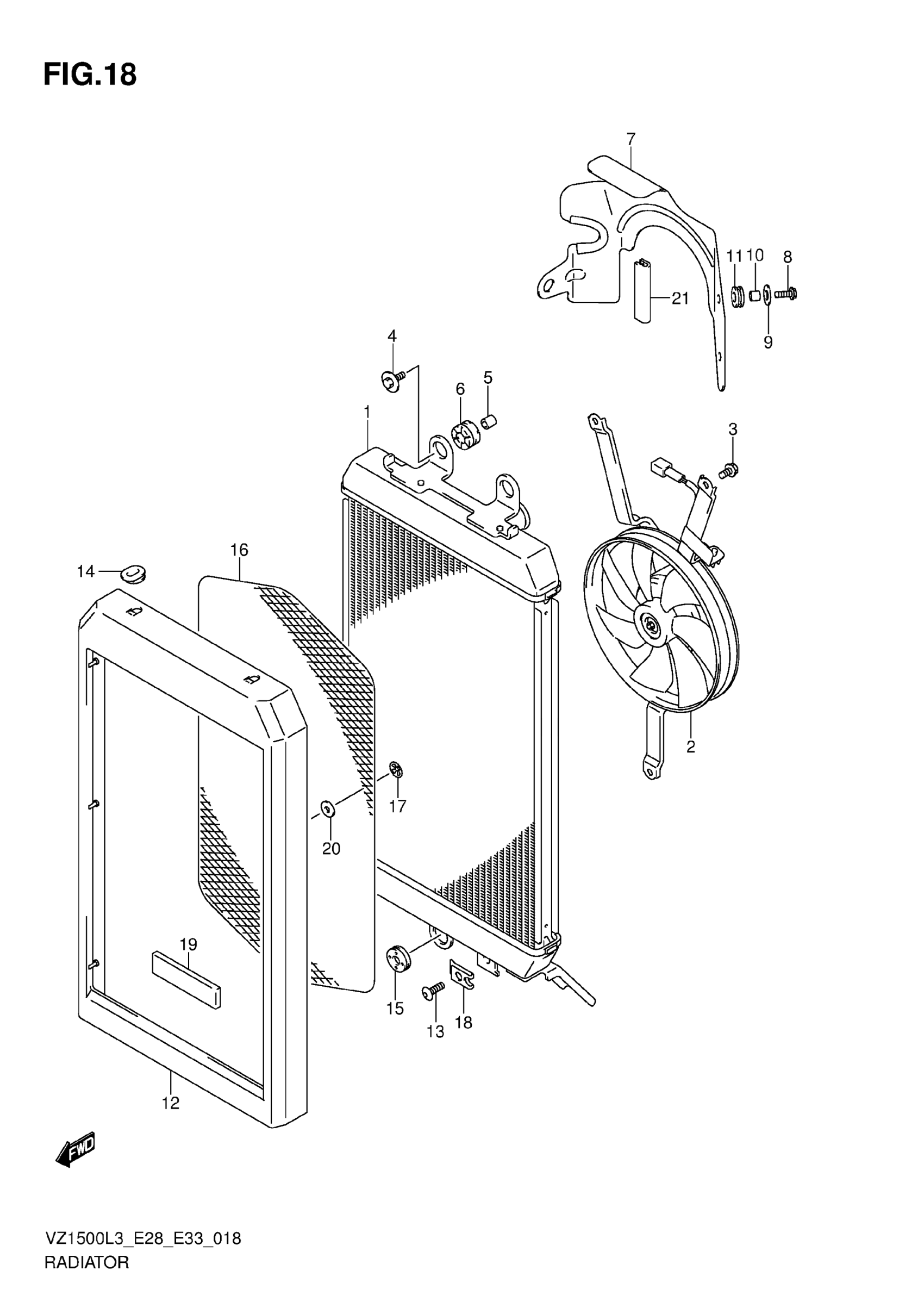

Suzuki VZ1500L3 (2013) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-40H10

$1,161.00

2

FAN ASSY, RADIATOR

17800-40H00

$711.80

3

BOLT

17711-40H00

Unavailable

4

BOLT (6X25)

09118-06097

$2.50

5

SPACER (6.5X10X12)

09180-06290

$2.35

6

CUSHION

09320-10051

$2.99

7

SHIELD, RADIATOR HEAT

17771-40H10

Unavailable

8

BOLT

01547-0616B

$2.45

9

WASHER (6.5X20X1.2)

09160-06152

$2.28

10

SPACER

09180-06001

$2.30

11

CUSHION (8.4X18X6)

09320-08066

$8.24

12

COVER, RADIATOR NO.1

17760-40H00

$59.07

13

SCREW (6X16)

09139-06039

$2.19

14

CUSHION

09320-03004

$2.12

15

CUSHION

09320-08028

$3.04

16

NET, RADIATOR COVER

17765-40H00

Unavailable

17

NUT

09148-03010

$2.63

18

NUT

09148-06021

$3.56

19

CUSHION

92141-43EU0

Unavailable

20

CUSHION

09320-04501

$2.61

21

MOLDING

17762-18H00

Unavailable
