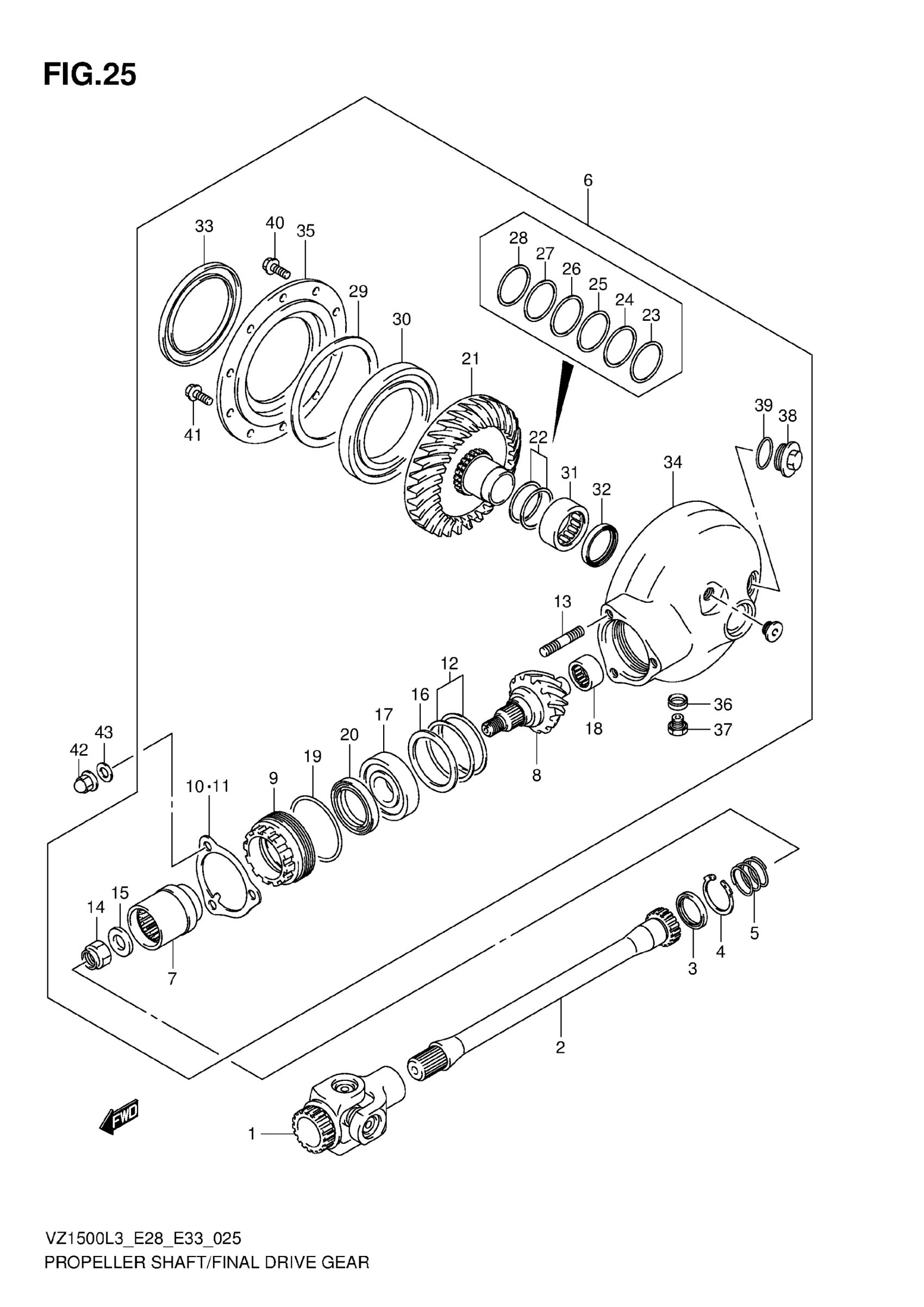

Suzuki VZ1500L3 (2013) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

1

YOKE, UNIVERSAL JOINT

27100-48G20

$351.00

2

SHAFT, PROPELLER (L:434)

27151-40H00

Unavailable

3

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

4

CIRCLIP

09381-40003

$4.64

5

SPRING

09440-30008

$3.72

6

GEAR & CASE SET, FINAL BEVEL (SILVER)

27300-48860-20H

$2,602.07

7

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

8

GEAR, FINAL DRIVE BEVEL (NT:12)

27311-24A10

Unavailable

9

STOPPER, FINAL DRIVE BEARING

27312-24A02

$74.08

10

PLATE, BEARING STOPPER

27313-38B00

$7.37

11

PLATE, BEARING STOPPER

27313-38B10

$7.37

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

13

STUD BOLT

09108-10106

$4.68

14

NUT

09159-16003

$4.00

15

WASHER (16X29X4)

09160-16029

$6.35

16

WASHER (54X68X1.5)

09160-54001

Unavailable

17

BEARING (28X68X18)

09262-28023

$127.87

18

BEARING (20X34X18)

09263-20062

$46.98

19

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

20

OIL SEAL (45.5X58X7)

09283-47002

$17.18

21

GEAR, FINAL DRIVEN

27320-48G00

Unavailable

22

SHIM SET, FINAL DRIVEN, LH | T:1.25/1.35/1.45

27326-48811

$103.03

23

SHIM (40X46.8X0.95)

09181-40011

$3.27

24

SHIM (40X46.8X1.05)

09181-40013

$3.97

25

SHIM (40X46.8X1.1)

09181-40014

Unavailable

26

SHIM (40X50X1.2)

09181-40176

Unavailable

27

SHIM (40X50X1.4)

09181-40182

Unavailable

28

SHIM (40X50X1.5)

09181-40212

Unavailable

29

SHIM SET, FINAL DRIVE, RH | T:0.35/0.40/0.50/0.60

27327-38810

$108.97

30

BEARING (85X130X14)

09262-85001

$202.27

31

BEARING (40X50X20)

09263-40016

$68.97

32

OIL SEAL (38X46X6) | LH

09283-38026

$16.33

33

OIL SEAL (85X110X11) | RH

09289-85001

$41.81

34

CASE, FINAL GEAR (SILVER)

27450-48G70-20H

$930.82

35

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

36

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

37

PLUG (MAGNETO)

09247-14002

$5.24

38

PLUG (30X9)

09259-30007

$18.39

39

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

40

BOLT

01550-0825A

$2.32

41

BOLT (10X20)

01550-1025A

$3.05

42

NUT

09159-10026

$6.20

43

WASHER

09164-10008

$1.71
