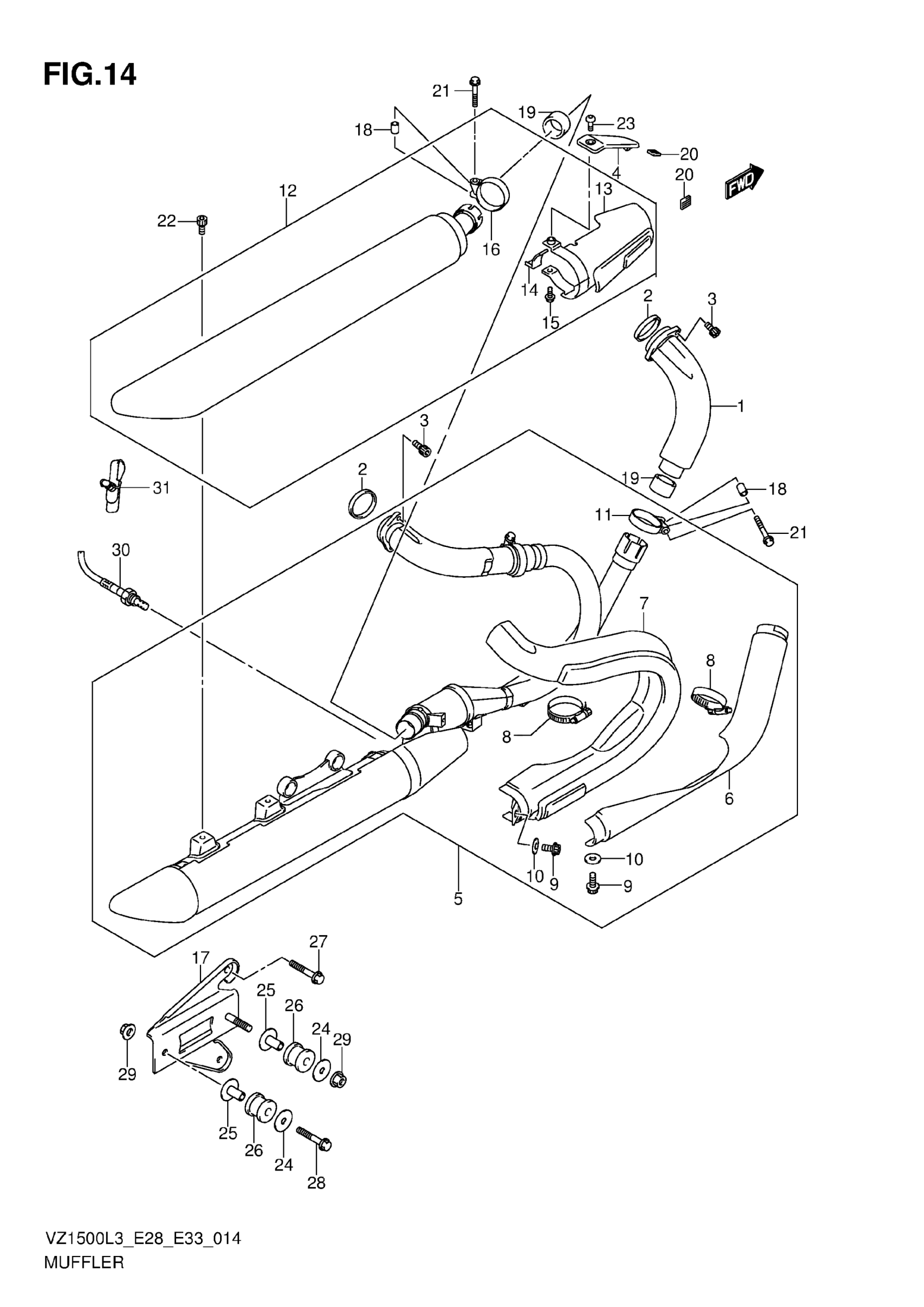

Suzuki VZ1500L3 (2013) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FR

14150-40H00

Unavailable

2

GASKET, EXHAUST PIPE

14181-31D00

$10.28

3

BOLT (8X25)

09106-08165

$4.03

4

COVER, MUF REAR UPPER

14260-40H00

$137.02

5

MUFFLER, FR

14305-40H20-H01

Unavailable

6

COVER, EXHAUST FR

14170-40H00

Unavailable

7

COVER, EXHAUST RR

14180-40H00

Unavailable

8

CLAMP

09402-45504

Unavailable

9

BOLT

14451-40H00

Unavailable

10

SPACER

14176-40H00

Unavailable

11

CLAMP, CONNECTOR

14459-40H00

$29.97

12

BODY, MUFFLER RR

14340-40H20-H01

Unavailable

13

COVER, MUFFLER

14398-40H00

Unavailable

14

CLAMP

14399-40H00

Unavailable

15

BOLT

14451-40H00

Unavailable

16

CLAMP, CONNECTOR

14459-40H00

$29.97

17

BRACKET

14410-40H00

Unavailable

18

SPACER

14458-45G10

$8.18

19

CONNECTOR

14771-40H00

$36.55

20

GROMMET

14795-10FA0

$5.58

21

BOLT (8X35)

09103-08365

$3.91

22

BOLT (8X20)

09106-08107

$2.81

23

SCREW (6X10)

09139-06172

$3.04

24

WASHER (8.5X33X1.5)

09160-08146

$2.60

25

SPACER (8.6X12X27.1)

09180-08156

$6.70

26

CUSHION

09320-12049

$10.68

27

BOLT (8X16)

01550-0816A

$2.32

28

BOLT

01550-0845A

$3.14

29

NUT

08361-2508A

$1.97

30

SENSOR, OXYGEN

18213-48G00

Unavailable

31

CLAMP (L:88)

09407-05403

$2.38
