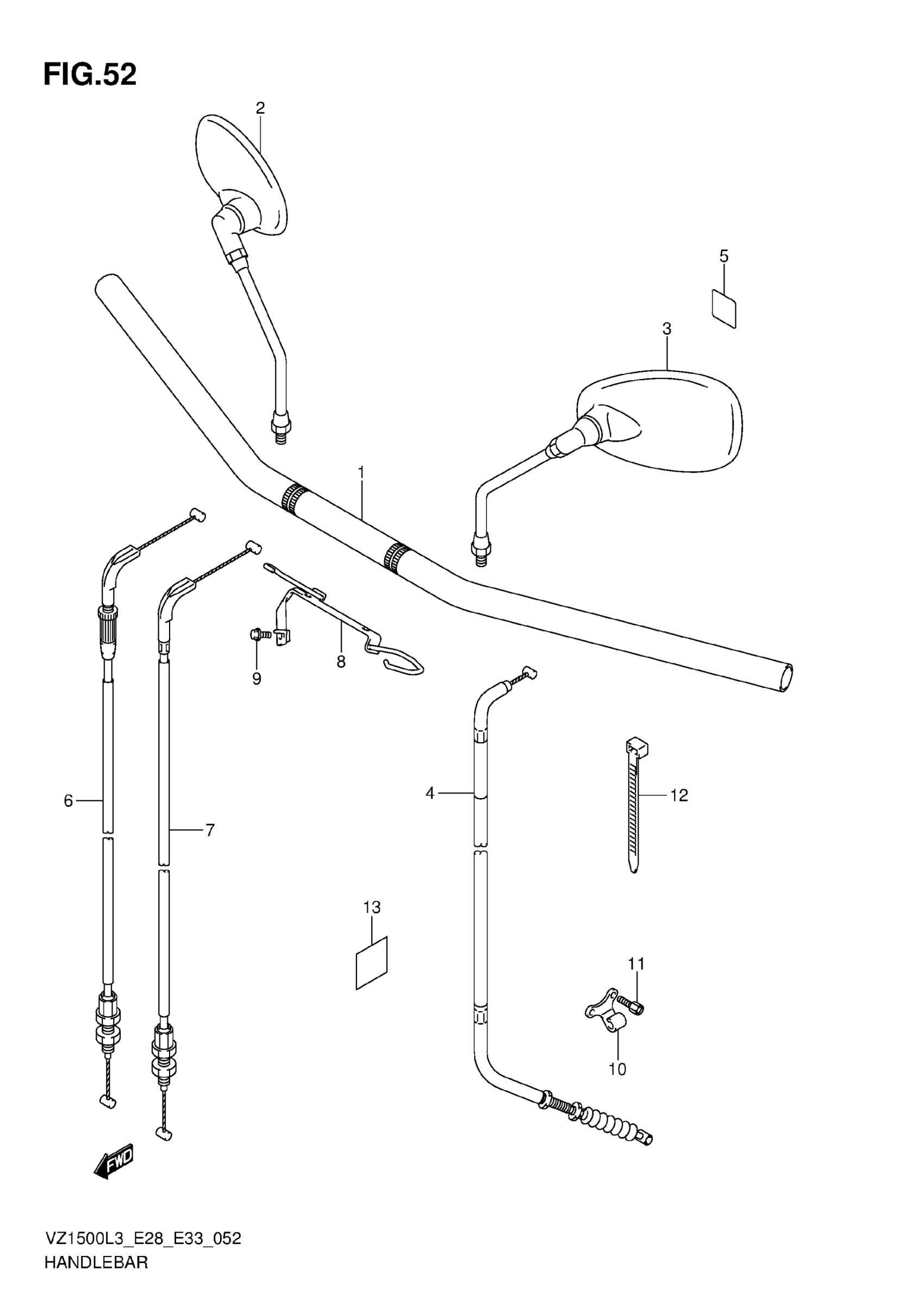

Suzuki VZ1500L3 (2013) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-40H00

$257.33

2

MIRROR ASSY, REAR VIEW RH

56500-14G20

$162.17

3

MIRROR ASSY, REAR VIEW LH

56600-14G20

$162.17

4

CABLE ASSY, CLUTCH

58200-40H00

$84.50

5

TAPE, HEAD PIPE

87873-56K50

$9.90

6

CABLE ASSY, THROTTLE NO.1

58300-40H00

$43.27

7

CABLE ASSY, THROTTLE NO.1

58300-40H10

$37.82

8

GUIDE, CABLE

58620-40H00

Unavailable

9

BOLT

01547-0612B

$1.49

10

STOPPER, CABLE

58634-40H00

$15.42

11

BOLT

01547-0612A

$2.03

12

CLAMP (L:190)

09407-19401

$3.05

13

PROTECTOR, WIRING HARNESS

36611-41F00

Unavailable
