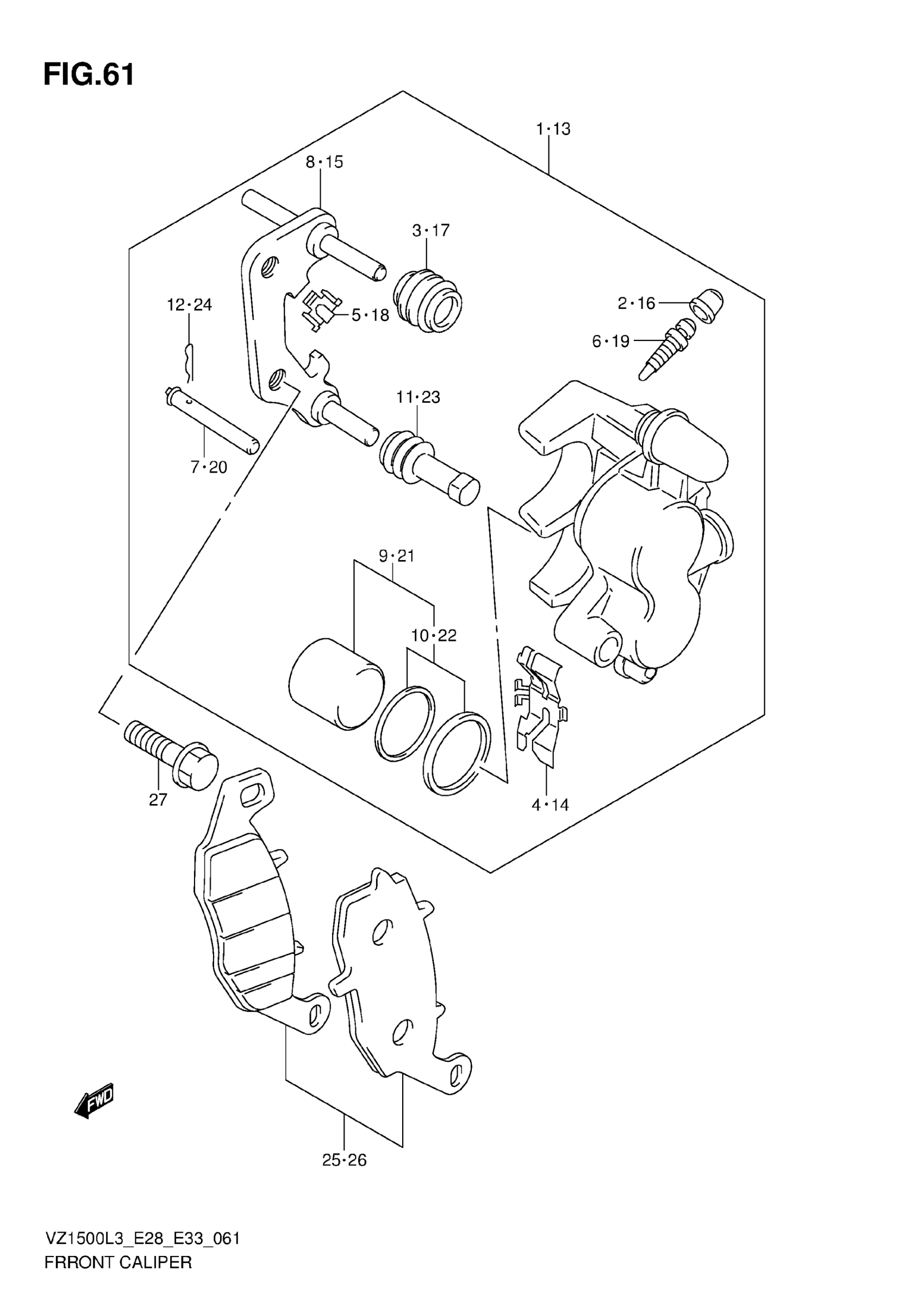

Suzuki VZ1500L3 (2013) FRRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-33DH1-999

Unavailable

2

CAP, BLEEDER PLUG

55156-66310

$5.17

3

BOOT, AXLE

59112-44B00

$8.91

4

.SPRING, PAD RH

59115-33D00

$14.90

5

.GUIDE, PAD

59116-33D00

$7.97

6

BLEEDER

59121-18410

$8.73

7

.PIN, PAD

59141-44B01

$9.09

8

.CARRIER, CALIPER RH

59150-33D01

$109.85

9

PISTON SET

59301-20820

$37.59

10

SEAL SET, PISTON

59300-33841

$15.45

11

.INSULATOR, AXLE

59313-36500

$5.99

12

.CLIP, PAD PIN

69142-45000

$4.34

13

CALIPER ASSY, FRONT LH

59300-33DH1-999

Unavailable

14

.SPRING, PAD LH

59315-33D00

$14.90

15

.CARRIER, CALIPER LH

59350-33D01

$109.85

16

CAP, BLEEDER PLUG

55156-66310

$5.17

17

BOOT, AXLE

59112-44B00

$8.91

18

.GUIDE, PAD

59116-33D00

$7.97

19

BLEEDER

59121-18410

$8.73

20

.PIN, PAD

59141-44B01

$9.09

21

PISTON SET

59301-20820

$37.59

22

SEAL SET, PISTON

59300-33841

$15.45

23

.INSULATOR, AXLE

59313-36500

$5.99

24

.CLIP, PAD PIN

69142-45000

$4.34

25

PAD SET RH

59101-33880

$60.80

26

PAD SET LH

59302-33890

$63.33

27

BOLT (10X30)

09103-10379

$4.52
