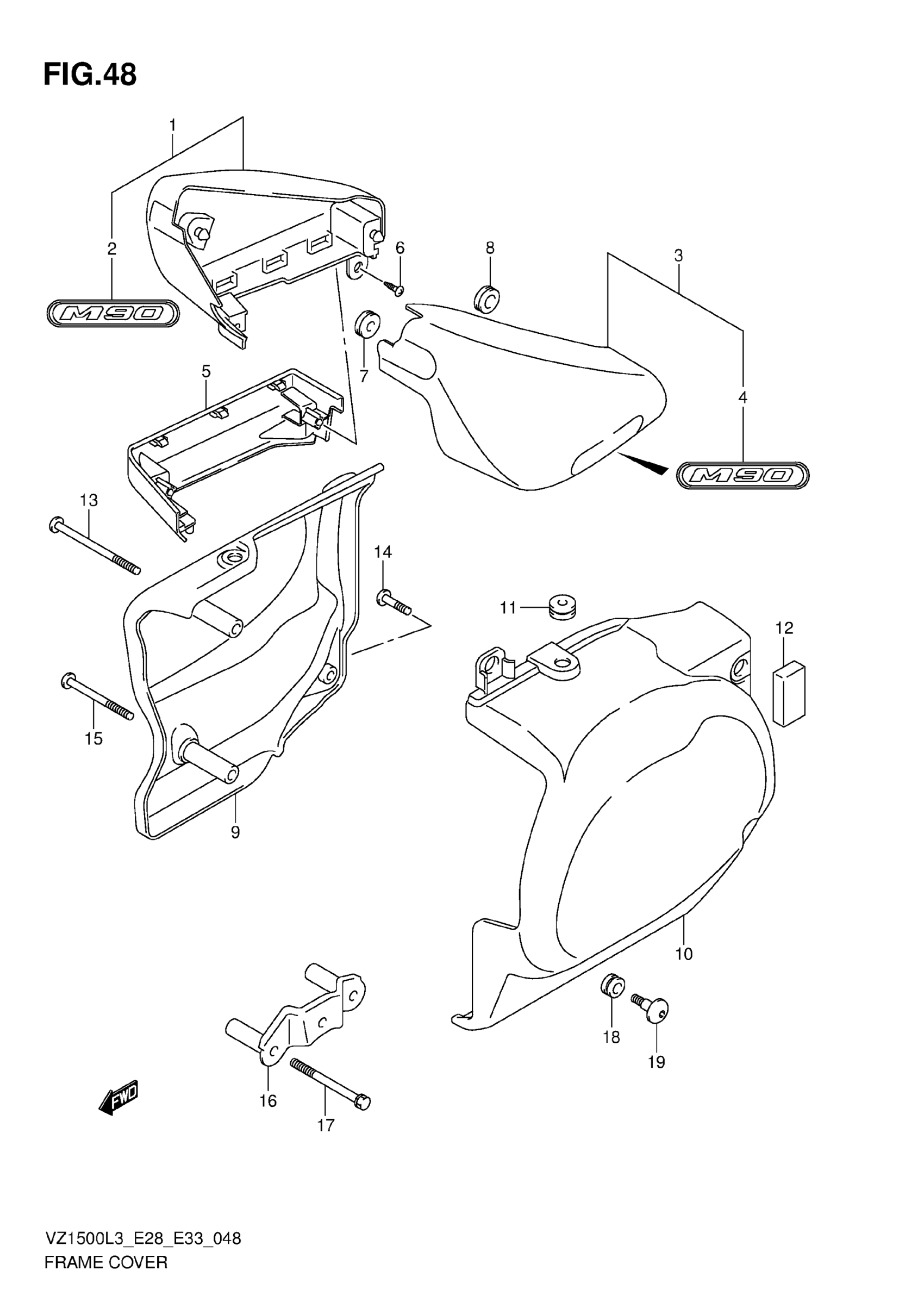

Suzuki VZ1500L3 (2013) FRAME COVER Diagram

#

Description
Price

1

COVER,SIDE,R(GR This part replaces 47110-40H00-YLF.

47110-40H01-YLF

$257.17

1

COVER, SIDE RH (BLACK) This part replaces 47110-40H00-YVB.

47110-40H01-YVB

$214.63

2

EMBLEM This part replaces 68131-40H00.

68131-40H01

$34.07

3

COVER,SIDE,L(GR This part replaces 47210-40H00-YLF.

47210-40H01-YLF

$211.40

3

COVER, SIDE LH (BLACK) This part replaces 47210-40H00-YVB.

47210-40H01-YVB

$214.63

4

EMBLEM This part replaces 68131-40H00.

68131-40H01

$34.07

5

COVER, SIDE LOWER RH

47121-40H00

$75.23

6

SCREW

03541-0516A

$1.49

7

CUSHION

09320-08049

$3.26

8

CUSHION

09320-08018

$3.04

9

COVER, LOWER RH

47130-40H00

Unavailable

10

COVER, LOWER LH

47231-40H00

$320.57

11

CUSHION

09320-06504

$4.96

12

CUSHION, LH

51827-01A00

$6.17

13

SCREW, RH FRONT UPPER

47139-40H00

Unavailable

14

SCREW (6X16)

09139-06140

$4.25

15

SCREW, RH FRONT LOWER

47138-40H00

Unavailable

16

BRACKET, LOWER LH

47250-06J00

$29.15

17

BOLT

01547-0650A

$2.46

18

CUSHION

09320-09016

$1.97

19

SCREW (6X20)

09139-06126

$4.04
