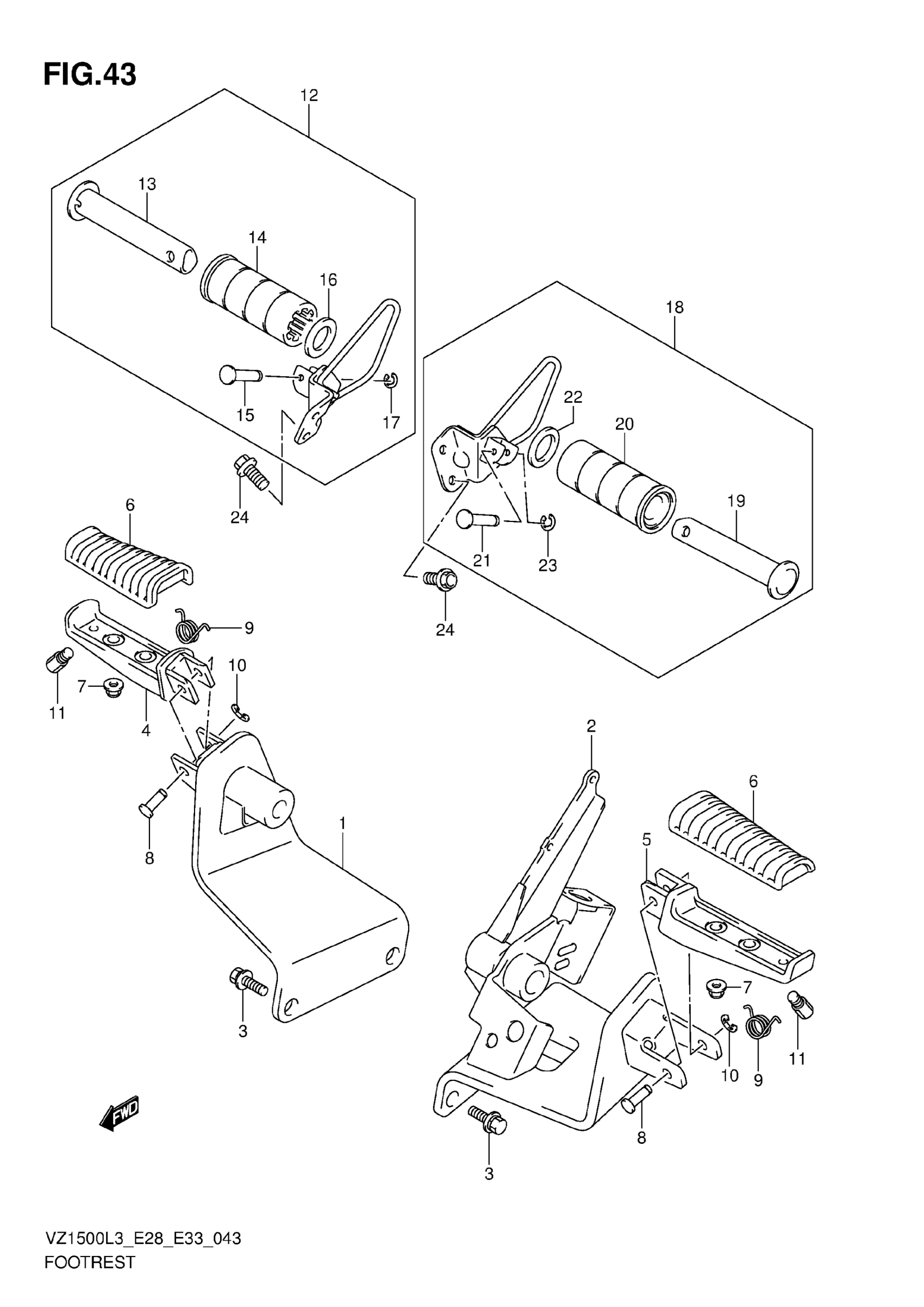

Suzuki VZ1500L3 (2013) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-40H00

$294.05

2

BRACKET, FRONT FOOTREST LH

43520-40H00

$194.35

3

BOLT (10X25)

09103-10378

$3.07

4

BAR, FRONT FOOTREST RH This part replaces 43531-48G00.

43531-48G01

$47.17

5

BAR, FRONT FOOTREST LH This part replaces 43541-48G00.

43541-48G01

$39.11

6

RUBBER

43550-48G00

$30.05

7

NUT

08319-2106A

$1.91

8

PIN (8X33.2)

09208-08010

$2.91

9

SPRING

09448-14047

$4.19

10

E RING

08332-1106A

$1.49

11

.BOLT,BANK SENSOR

43576-07D01

$8.85

12

FOOTREST, PILLION RH

43600-40H50

$173.75

13

BAR

43610-39G00

$22.52

14

RUBBER

43612-39G00

$10.02

15

PIN

09208-06007

$3.29

16

WASHER (19.5X32X2)

09160-19024

$2.65

17

E RING

08332-1104A

$1.49

18

FOOTREST, PILLION LH

43700-40H50

Unavailable

19

BAR

43610-39G00

$22.52

20

RUBBER

43612-39G00

$10.02

21

PIN

09208-06007

$3.29

22

WASHER (19.5X32X2)

09160-19024

$2.65

23

E RING

08332-1104A

$1.49

24

BOLT (8X16)

09103-08412

$3.03
