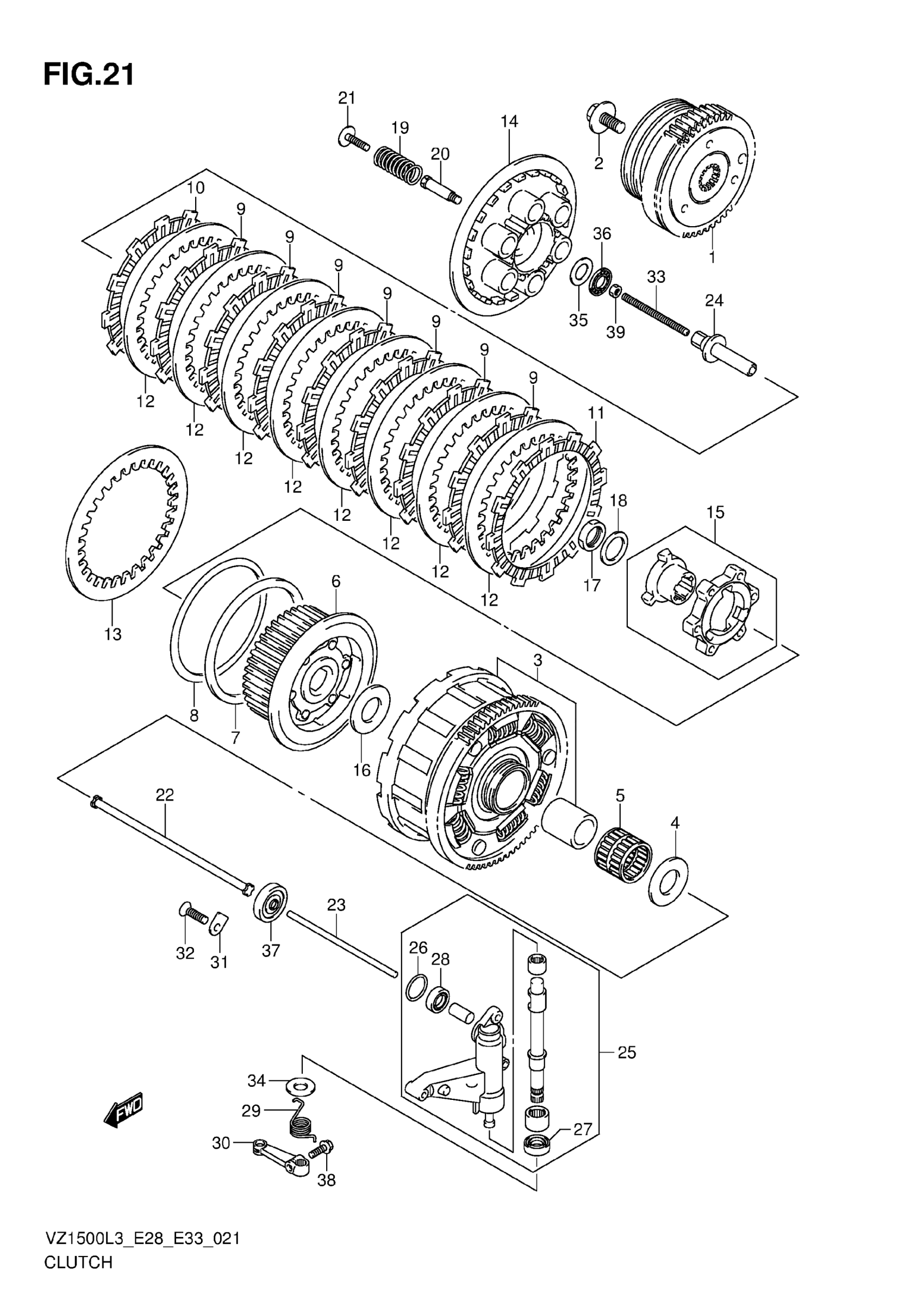

Suzuki VZ1500L3 (2013) CLUTCH Diagram

#

Description
Price

1

GEAR SET,PRI DR This part replaces 21100-40810.

21100-40811

$730.65

2

BOLT (14X28)

09103-14010

$17.50

3

GEAR This part replaces 21200-40890.

21200-40891

$551.97

4

WASHER (25X52X2.5)

09160-25074

$7.82

5

BEARING (35X40X39.8)

09263-35013

$35.56

6

HUB, SLEEVE

21410-40H00

Unavailable

7

.SEAT,WAVE WASHER

21471-24F00

$14.26

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.50

9

PLATE, CLUTCH DRIVE (T:3.8)

21441-24F40

$35.47

10

PLATE, CLUTCH DRIVE (T:3.8)

21441-24F10

$24.03

11

PLATE, CLUTCH DRIVE (T:3.8)

21442-24F00

$24.15

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

13

PLATE, CLUTCH DRIVEN, (T:2.3)

21451-24F10

$11.59

14

DISC, CLUTCH PRESSURE

21462-16G00

$67.93

15

CAM SET, CLUTCH

21610-02F20

$249.02

16

WASHER (25X50X3.5)

09160-25079

Unavailable

17

NUT

09159-24010

$13.22

18

WASHER

09164-24008

$4.60

19

SPRING, CLUTCH

21413-40H00

$6.72

20

BOLT, CLUTCH SPRING SUPPORT This part replaces 21481-24F31.

21481-24F32

$9.87

21

BOLT, CLUTCH SPRING

21482-24F30

$3.43

22

ROD, CLUTCH

23110-24F00

$22.23

23

ROD, CLUTCH PUSH, L

23111-40H00

Unavailable

24

PIECE, CLUTCH PUSH

23121-41G00

$49.02

25

CAMSHAFT SET, CLUTCH RELEASE

23120-41810

Unavailable

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

OIL SEAL (10X20X6)

09282-10012

$7.98

28

OIL SEAL (10X17X5)

09285-10004

$3.37

29

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$3.95

30

ARM, CLUTCH RELEASE

23271-48G00

$76.63

31

RETAINER

24741-20A00

$2.81

32

SCREW (6X12)

09126-06011

$2.03

33

SCREW (6X73)

09134-06015

$6.88

34

WASHER (10.5X24X1)

09160-10020

$2.05

35

WASHER (15.5X28X1)

09160-15045

$3.89

36

BEARING (15X28X2)

09263-15003

$8.29

37

OIL SEAL (6X18X5)

09283-06005

$11.28

38

BOLT

01547-0620A

$2.03

39

NUT

08310-0006A

$1.84
