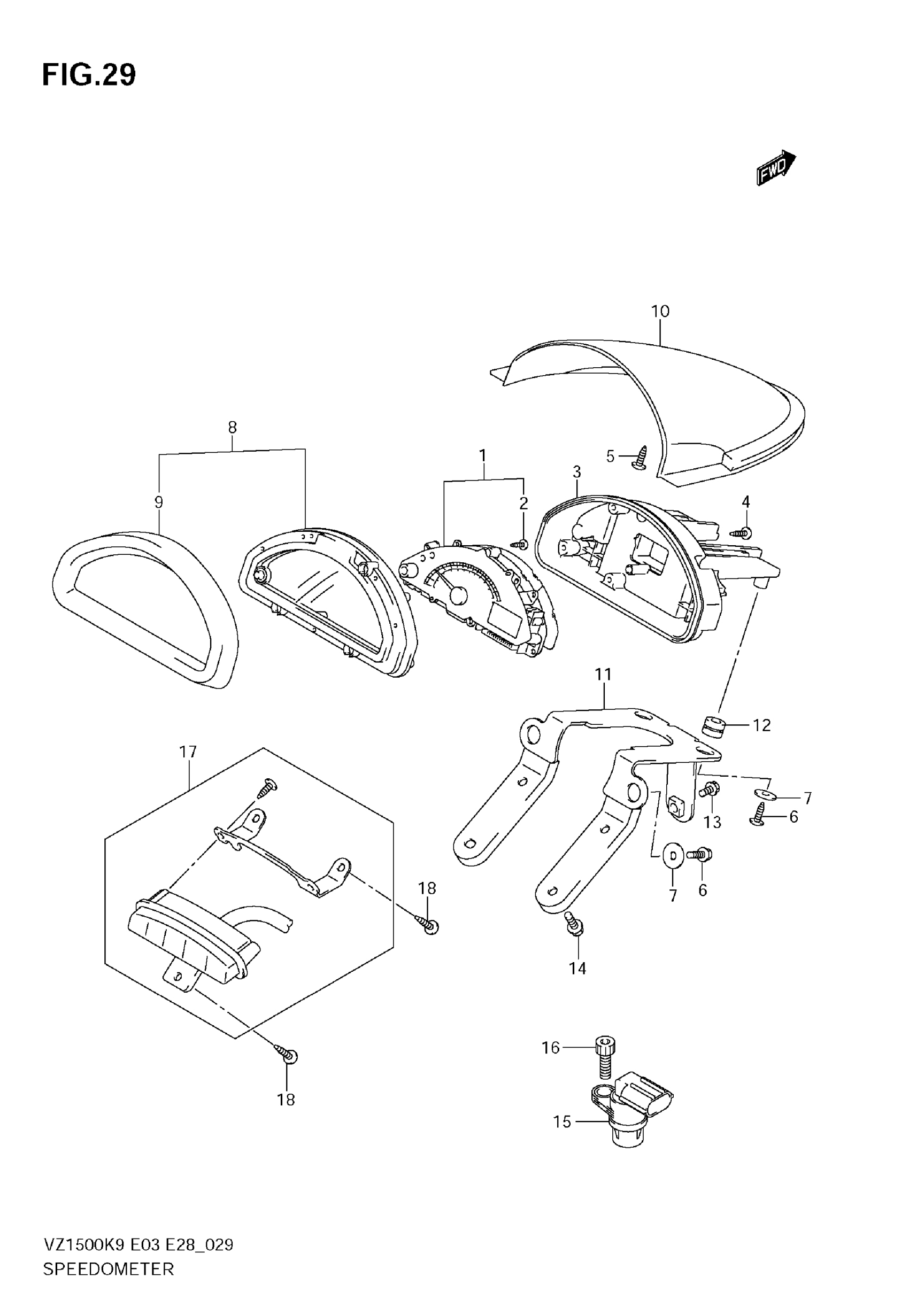

Suzuki VZ1500 (2009) SPEEDOMETER Diagram

#

Description
Price

1

COMBINATION METER

34120-40H10

Unavailable

1

COMBINATION METER | E28; Includes Item(s) 2

34120-40H00

Unavailable

2

SCREW (3X14)

34149-03G00

$3.71

3

COVER, CASE

34111-40H00

Unavailable

4

SCREW (3X14)

34149-03G00

$3.71

5

SCREW (4X14)

34149-17E10

$6.23

6

SCREW (5X16)

34149-40H00

Unavailable

7

WASHER (5.2X20X1.0)

34189-40H00

Unavailable

8

UPPER CASE | Includes Item(s) 9

34150-40H00

Unavailable

9

UPPER COVER

34256-40H00

Unavailable

10

LOWER COVER

34257-40H00

Unavailable

11

BRACKET

34952-40H00

Unavailable

12

DAMPER

34955-40H00

Unavailable

13

BOLT, SPEEDOMETER

01550-0610A

$1.97

14

SCREW, SPEEDOMETER

07120-06127

$3.85

15

SENSOR, SPEED This part replaces 34990-31G00.

34990-31G01

$112.55

16

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

17

BOX ASSY, PILOT LAMP This part replaces 36380-40H00.

36380-40H01

$217.78

18

SCREW, PILOT BOX

03541-0512A

$1.49
