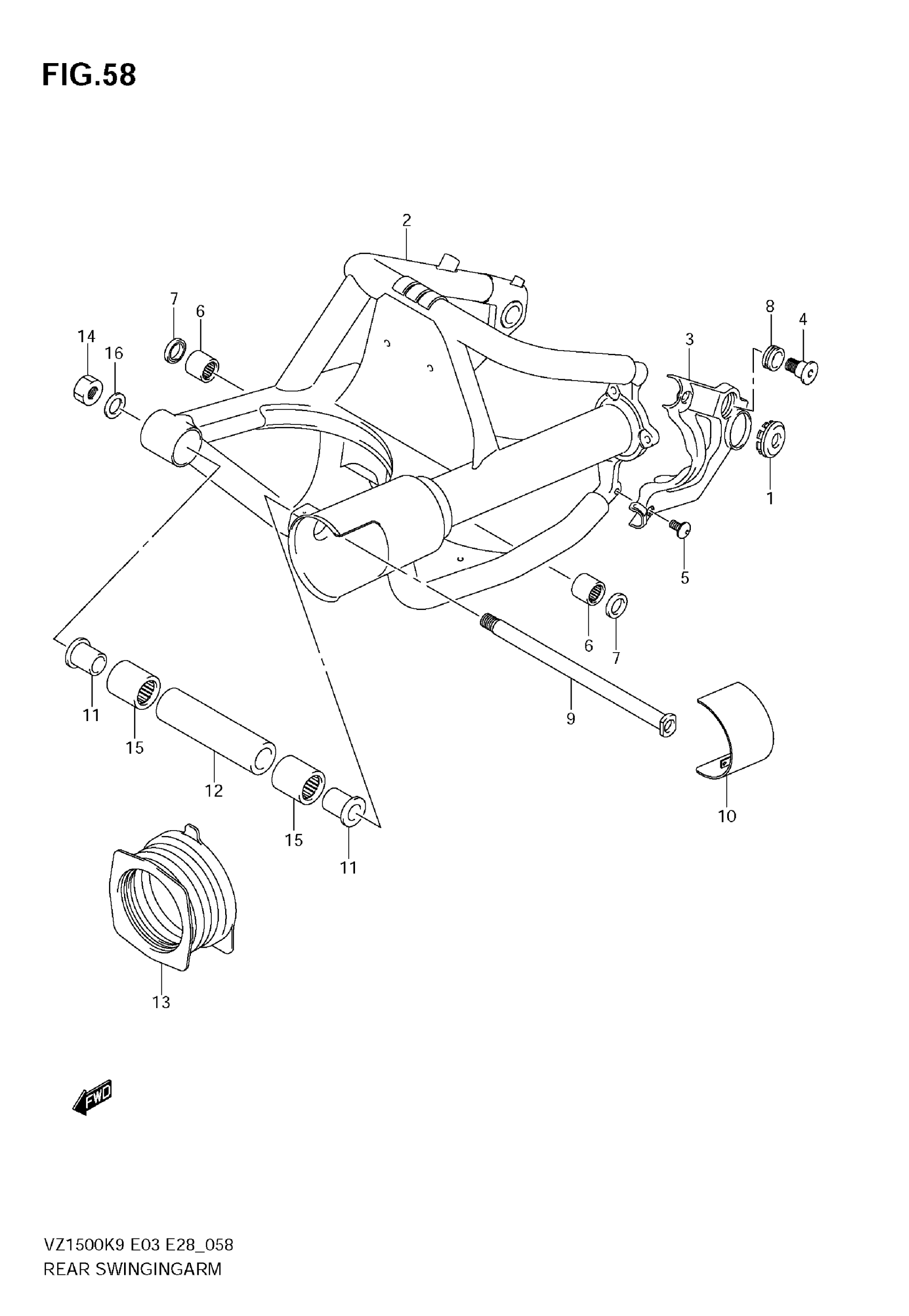

Suzuki VZ1500 (2009) REAR SWINGINGARM Diagram

CAP, RR SWGARM COVER

41899-42F10

$18.87

SWINGINGARM, REAR (BLACK)

61100-40H00-019

Unavailable

COVER, RR SWGARM LH (BLACK)

61126-40H00-019

$269.72

BOLT, COVER REAR This part replaces 61127-41F10.

61127-41F20

$23.95

BOLT, RR SWGARM COVER FR

09139-08007

$3.70

BEARING, RR CUSHION ROD

09263-22071

Unavailable

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

CUSHION This part replaces 09320-22003.

09320-22004

$3.73

SHAFT, RR SWGARM PIVOT

61211-22D00

Unavailable

COVER, RR SWGARM PIVOT LH

61230-40H00

Unavailable

SPACER,PIVOT BEARING

61251-31E00

$59.25

SPACER, RR SWGARM CTR

61280-48G01

Unavailable

BOOT, PROPELLER SHAFT

61372-40H00

Unavailable

NUT, RR SWGARM PIVOT

09159-18007

$19.68

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

WASHER, RR SWGARM PIVOT

08322-0118B

$2.70
