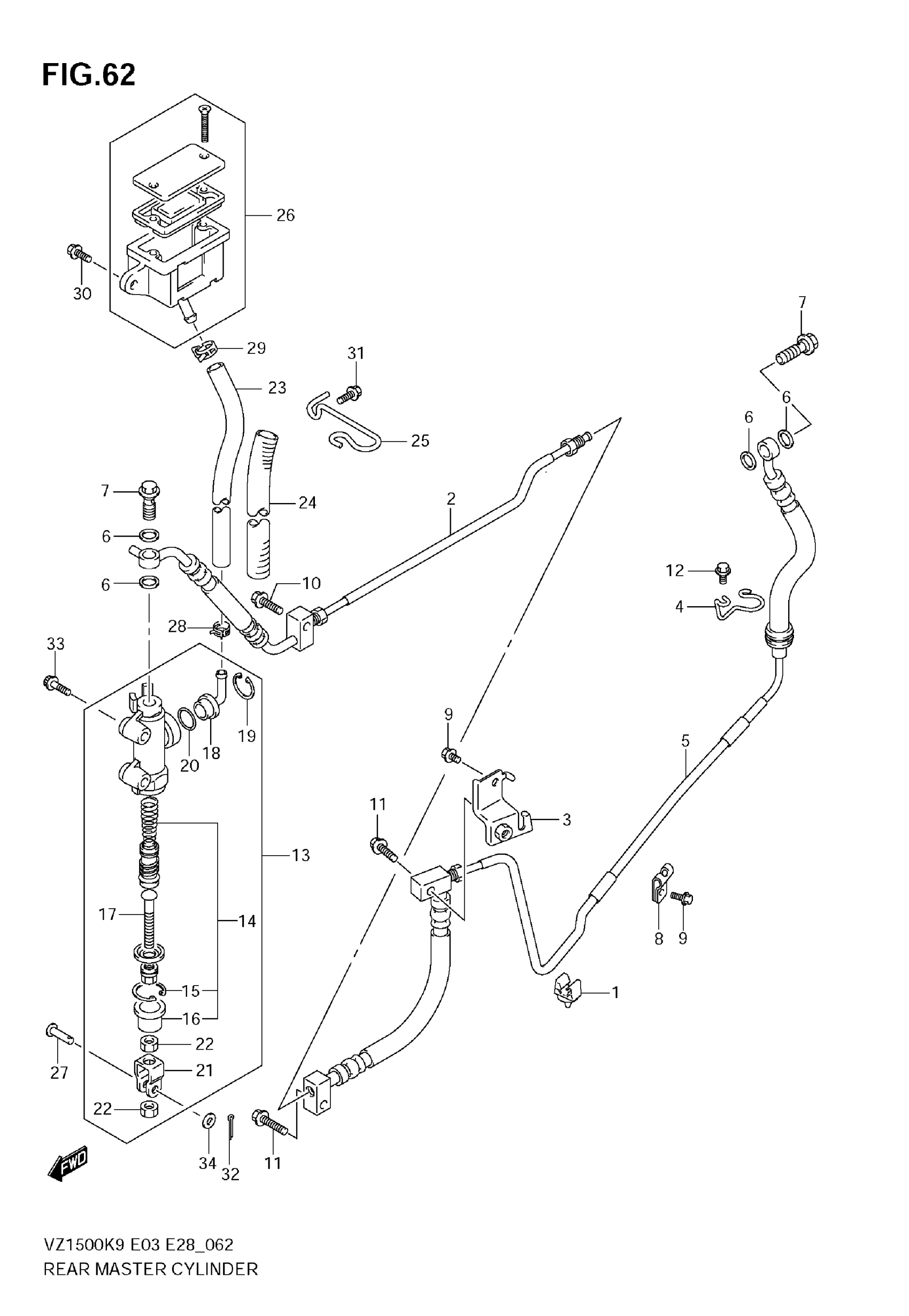

Suzuki VZ1500 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, RR BRAKE PIPE

51761-79J00

Unavailable

2

HOSE ASSY, RR BRAKE NO.1

69200-40H00

Unavailable

3

CLAMP, REAR BRAKE HOSE

69260-40H00

Unavailable

4

GUIDE, RR BRAKE HOSE

69278-40H00

Unavailable

5

HOSE This part replaces 69400-40H00.

69400-40H01

$209.35

6

WASHER (10X15X1.5)

09161-10009

$1.84

7

BOLT, BRAKE FLUID

09360-10062

$6.43

8

CLAMP, RR BRAKE PIPE

09403-07401

Unavailable

9

BOLT, RR BRAKE HOSE CLAMP

01547-0612A

$2.03

10

BOLT, RR BRAKE HOSE CLAMP

01547-0620A

$2.03

11

BOLT, RR BRAKE HOSE CLAMP

01547-0625A

$2.01

12

BOLT, RR BRAKE HOSE GUIDE

01550-0612A

$1.97

13

CYLINDER ASSY, REAR MASTER | Includes Item(s) 14 - 22

69600-48G10

Unavailable

14

PISTON, MCUP SET

69600-40810

Unavailable

15

CIRCLIP

51162-70040

$3.25

16

.BOOT

69691-00A00

$5.30

17

ROD, PUSH

69670-44B00

Unavailable

18

CONNECTOR

69672-00B20

$7.01

19

CIRCLIP

69674-00B20

$3.97

20

O RING

69686-34200

$2.93

21

YOKE

69692-19A00

$16.87

22

NUT

69693-05A00

$1.96

23

HOSE, REAR RESERVOIR TANK

69730-40H00

Unavailable

24

HEATSHIELD, RR RESERVOIR TANK

69732-40H00

Unavailable

25

GUIDE, RR RESERVER TANK HOSE

69738-40H00

Unavailable

26

TANK ASSY, REAR RESERVO

69740-40H00

Unavailable

27

PIN, RR MASTER CYLINDER

09200-06068

$4.11

28

CLIP, RR RESERVER TANK HOSE

09401-12404

$2.34

29

CLIP, RR RESERVER TANK HOSE

09401-13417

$2.26

30

BOLT, RESERVOIR TANK

01547-0616A

$2.03

31

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

32

PIN, RR MASTER CYLINDER

04111-2015A

$1.49

33

BOLT, REAR MASTER CYLINDER

07120-0625A

$2.50

34

WASHER, REAR MASTER CYLINDER

08322-0106A

$1.84
