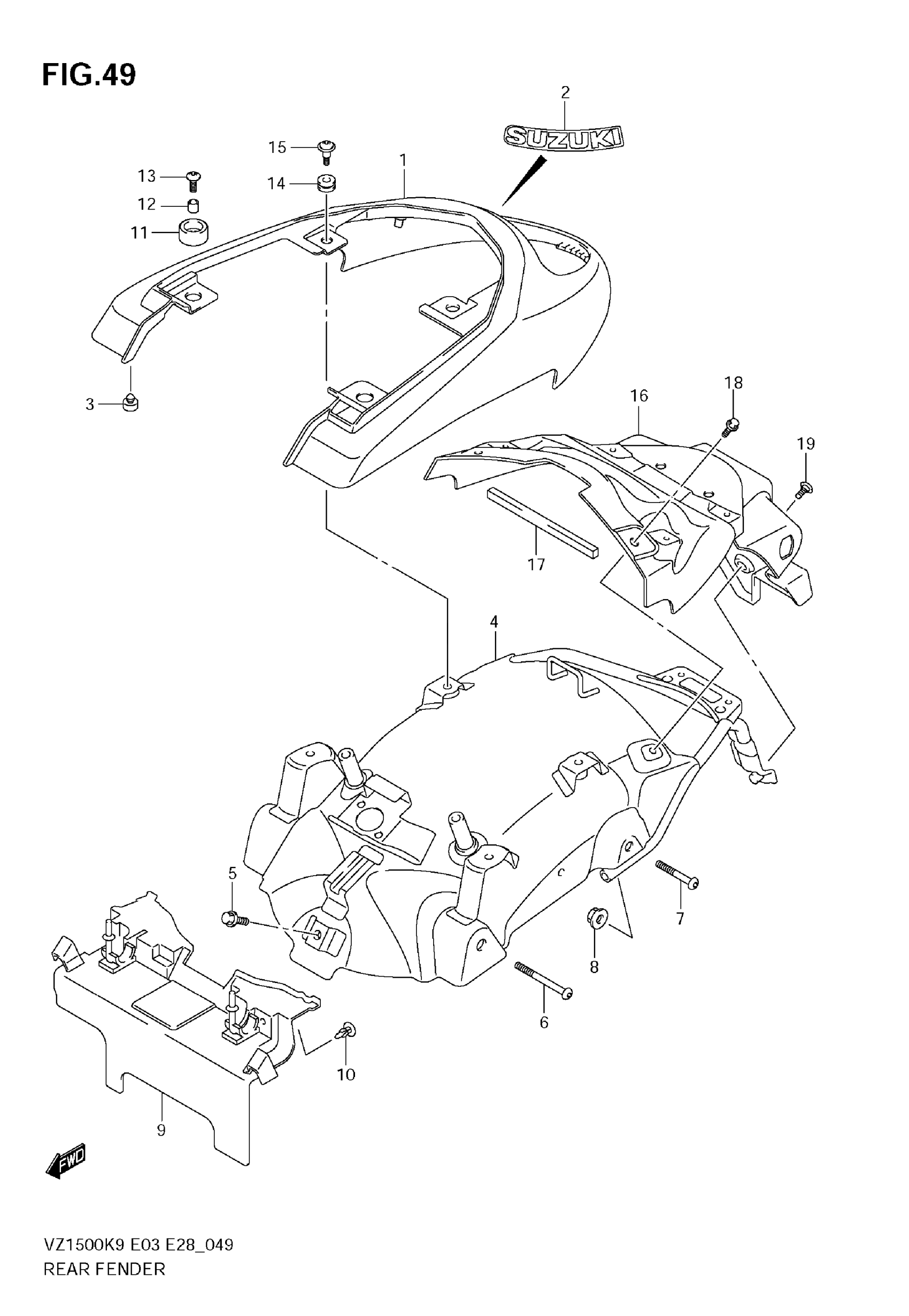

Suzuki VZ1500 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63110-40H00-YAY

Unavailable

1

FENDER, REAR (RED)

63110-40H00-YHL

Unavailable

1

FENDER, REAR (BLUE) | Includes Item(s) 2 - 3

63110-40H00-YSF

Unavailable

2

.EMBLEM,SUZUKI (SILVER) This part replaces 68641-19F00-YES.

68641-19F01-YES

$10.10

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

4

BRACE, FENDER This part replaces 63140-40H00.

63140-40H10

$431.08

5

BOLT (8X12)

01550-0812A

$2.32

6

BOLT, BRACE FRONT

09106-08182

$4.17

7

BOLT, BRACE REAR

09106-08183

$3.70

8

NUT

08316-1008A

$2.45

9

MUDGUARD, FRONT

63112-40H00

Unavailable

10

CLIP (BLACK)

09409-06314-5PK

$2.78

11

CUSHION, FRONT

09320-10045

$3.76

12

SPACER

09180-06286

$2.50

13

BOLT, FRONT

09139-06030

$3.70

14

CUSHION, REAR

09320-09016

$1.97

15

BOLT, REAR

09139-06126

$4.04

16

EXTENSION

63311-40H00

$96.22

17

CUSHION

47161-29B00

$7.50

18

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

19

BOLT, REAR

09139-06144

$2.50
