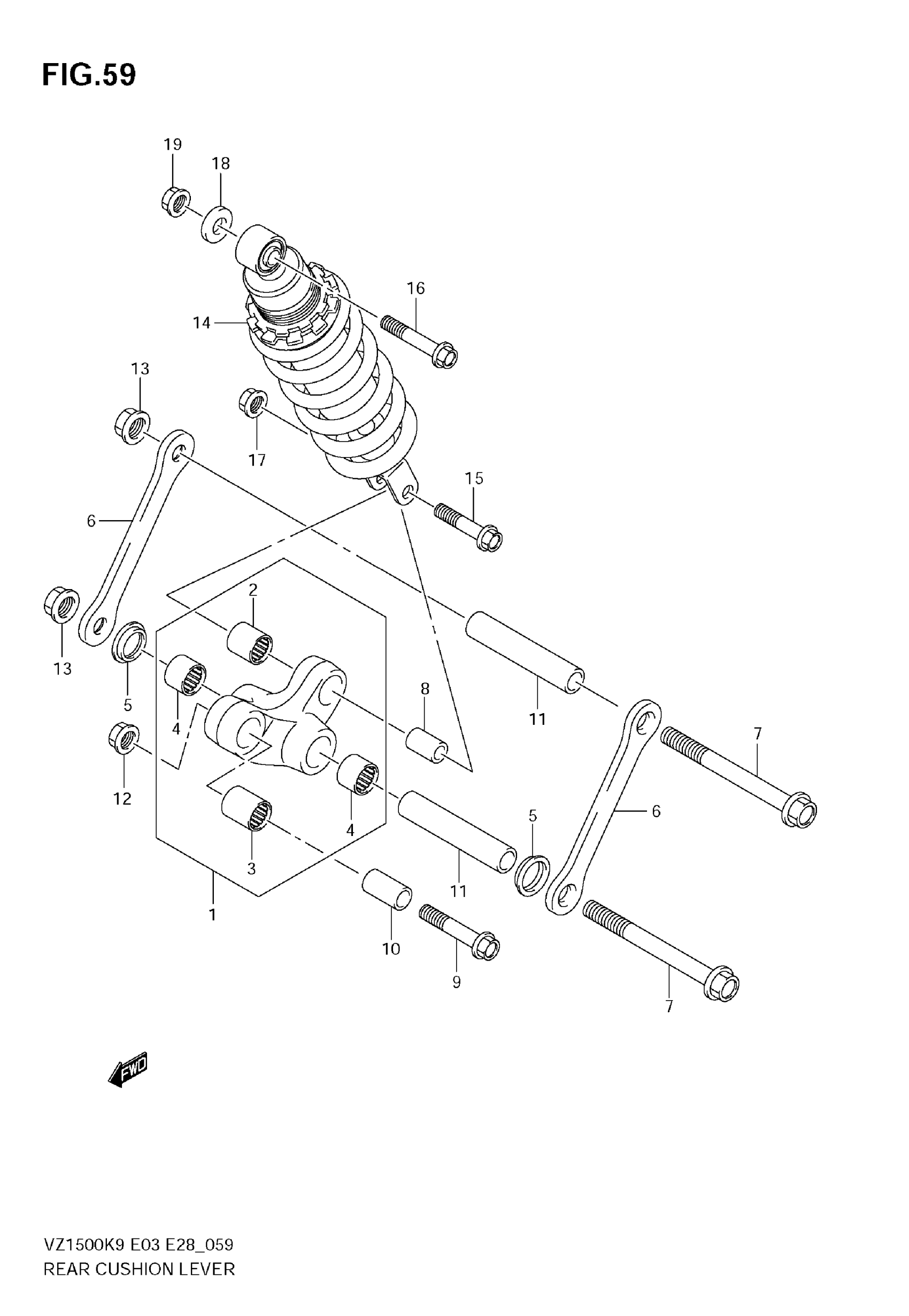

Suzuki VZ1500 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER, REAR CUSHION | Includes Item(s) 2 - 4

62600-40840

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

4

BEARING, RR CUSHION LEVER CTR

09263-22062

$31.08

5

SEAL, RR CUSHION LEVER CTR

62624-37E00

$8.98

6

ROD, RR CUSHION

62641-40H00

Unavailable

7

BOLT, RR CUSHION ROD

62658-44G10

Unavailable

8

SPACER, RR CUSHION LEVER RR

62684-01D00

$19.37

9

BOLT, RR CUSHION LEVER FR

09103-14016

Unavailable

10

SPACER, RR CUSHION LEVER FR

09180-14014

$17.50

11

SPACER, RR CUSHION ROD

09180-16049

Unavailable

12

NUT, RR CUSHION LEVER FR

08319-3114A

$9.66

13

NUT, RR CUSHION ROD

08319-3116A

$14.74

14

ABSORBER ASSY, REAR SHOCK | E28

62100-40H00

Unavailable

14

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-40H10

Unavailable

15

BOLT, RR SHOCK ABSORBER, LOWER

62668-42A02

$10.67

16

BOLT, RR SHOCK ABSORBER, UPPER

62658-27C10

$11.68

17

NUT, RR SHOCK ABSORBER, LOWER

08319-3112A

$3.76

18

SPACER, RR SHOCK ABSORBER, UPPER

09180-12157

Unavailable

19

NUT, RR SHOCK ABSORBER, UPPER

09159-12056

$7.37
