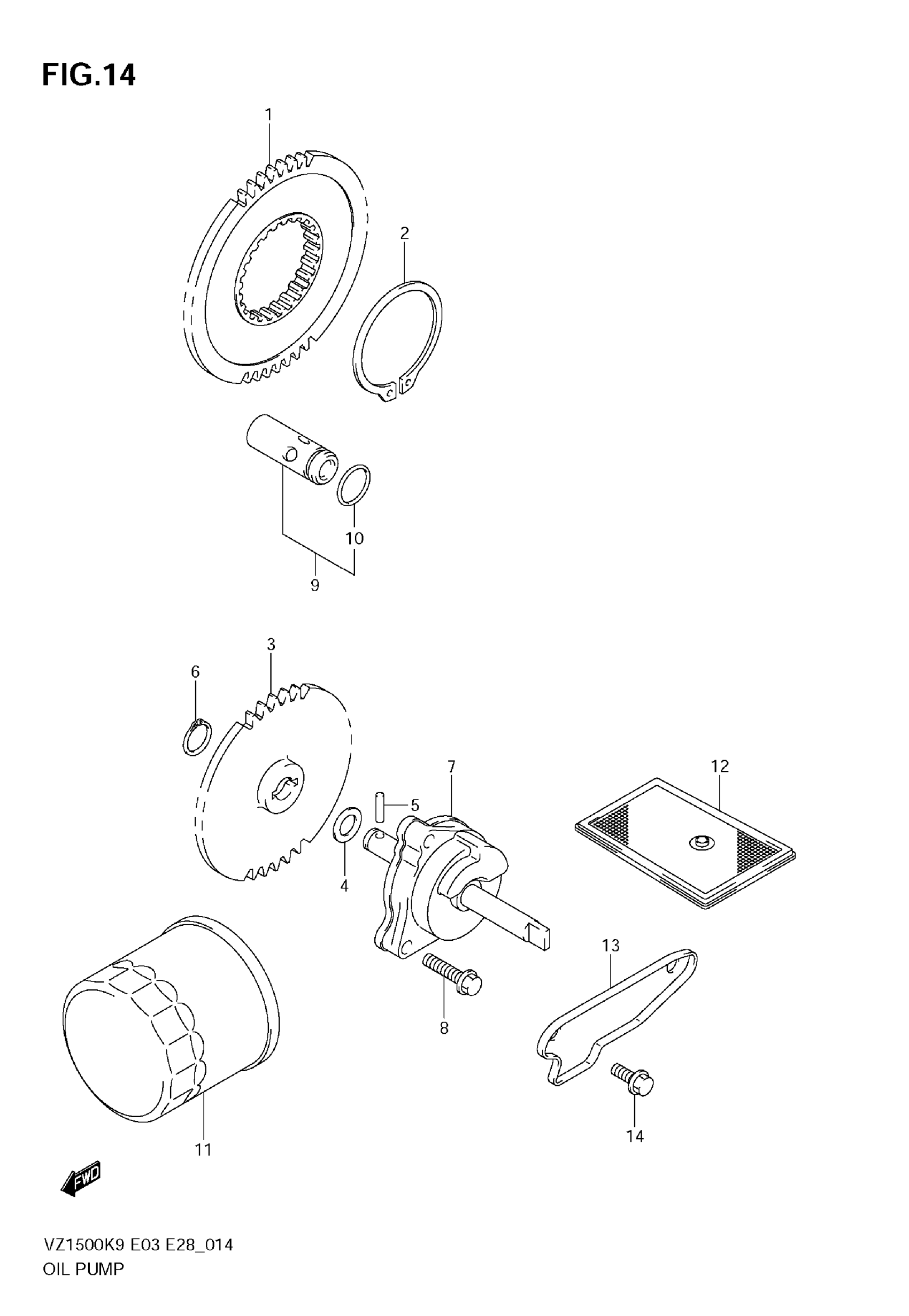

Suzuki VZ1500 (2009) OIL PUMP Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE

16321-40H00

Unavailable

2

CIRCLIP, OIL PUMP DRIVE

08331-31529

Unavailable

3

GEAR, OIL PUMP DRIVEN

16331-40H00

Unavailable

4

WASHER

09181-10158

$1.97

5

PIN

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

PUMP ASSY, ENG OIL

16400-40H00

$235.62

8

BOLT, OIL PUMP

01547-0625A

$2.01

9

VALVE ASSY, OIL RELIEF | Includes Item(s) 10

16440-24F00

$50.04

10

O RING

09280-13004

$2.17

11

FILTER, ENGINE OIL This part replaces 16510-03G00.

16510-07J00

$13.10

12

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

13

CAP,OIL STRAINER

16523-17G00

Unavailable

14

BOLT

01547-0612A

$2.03
