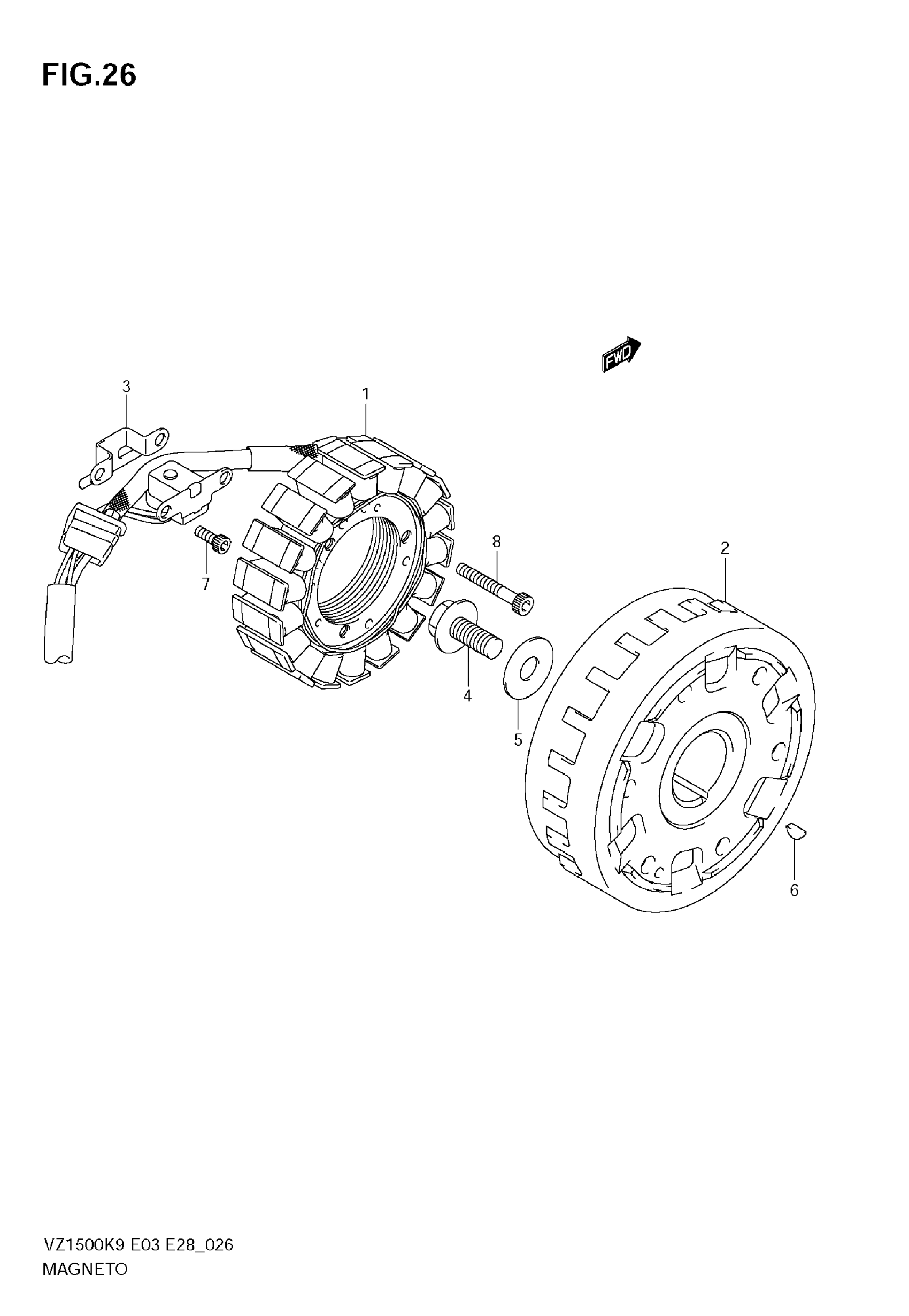

Suzuki VZ1500 (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-40H00.

32101-40H01

$533.98

2

ROTOR ASSY, MAGNETO

32102-40H00

Unavailable

3

CLAMP, MAGNETO LEAD

32371-40H00

Unavailable

4

BOLT, MAGNETO ROTOR (14X43)

09103-14001

$11.82

5

WASHER, MAGNETO ROTOR | 14X29X14

09160-14021

$6.63

6

KEY, MAGNETO ROTOR

08341-31059

$2.48

7

BOLT, PICK UP & CLAMP

07130-0512A

$2.19

8

BOLT, MAGNETO STATOR

07130-0635A

$3.16
