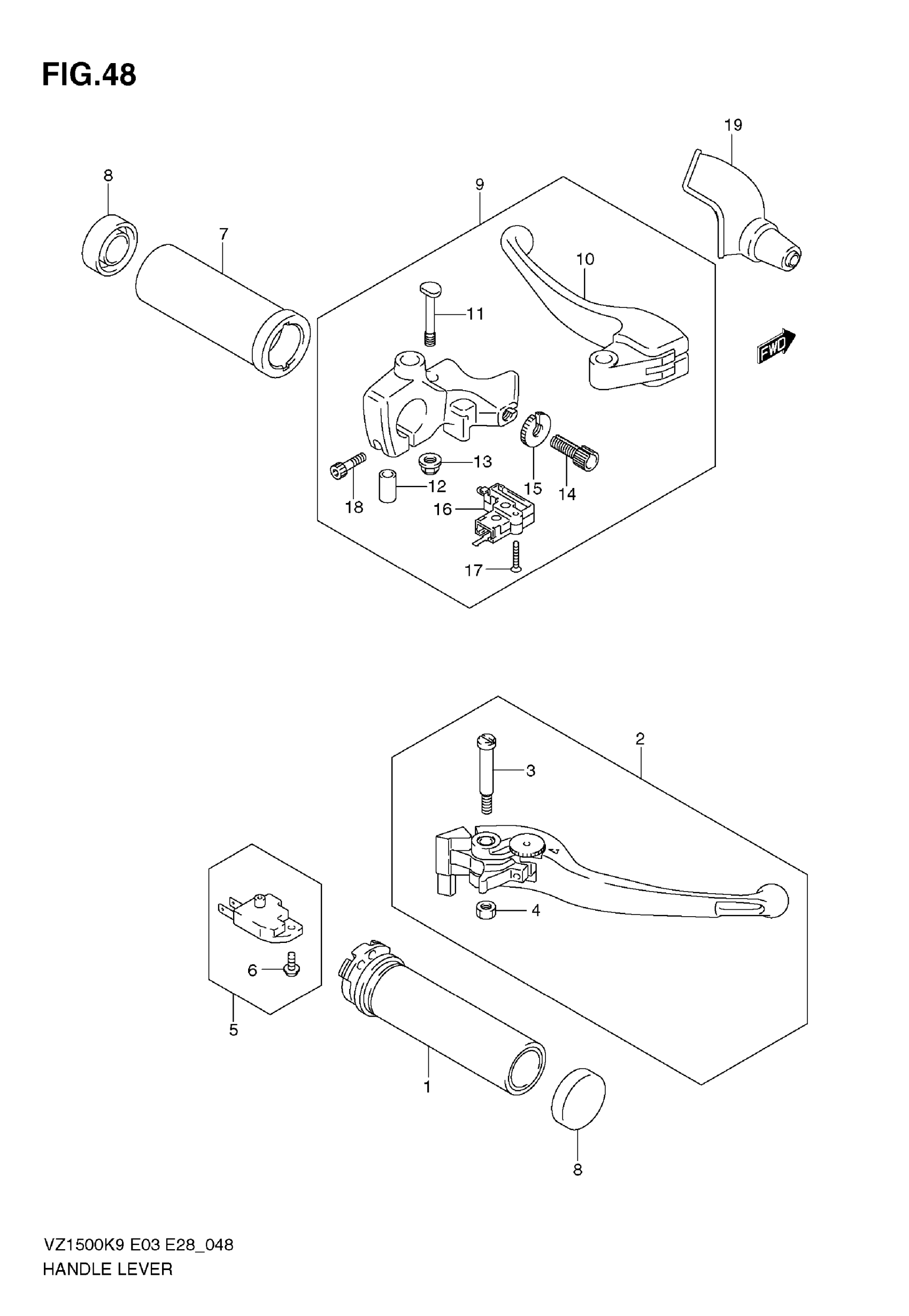

Find the part on the Handle Lever diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZ1500 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$43.12

In stock

2

1

$50.95

In stock

3

BOLT, PIVOT

57431-48G00

1

$10.42

In stock

4

NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

1

$30.14

In stock

8

CAP, GRIP END

57216-38A00

2

$7.20

In stock

10

1

$34.51

In stock

11

BOLT, PIVOT

57531-48G00

1

$42.35

In stock

12

SPACER

57623-48G00

1

$33.85

In stock

13

NUT

08319-3106B

1
Out of stock

14

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

15

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

16

.SWITCH ASSY,CLUTCH

57560-05A10

1

$31.62

In stock

17

SCREW

02112-0320B

1
Out of stock

18

BOLT

07130-0620A

1
Out of stock

19

1

$10.98

In stock
