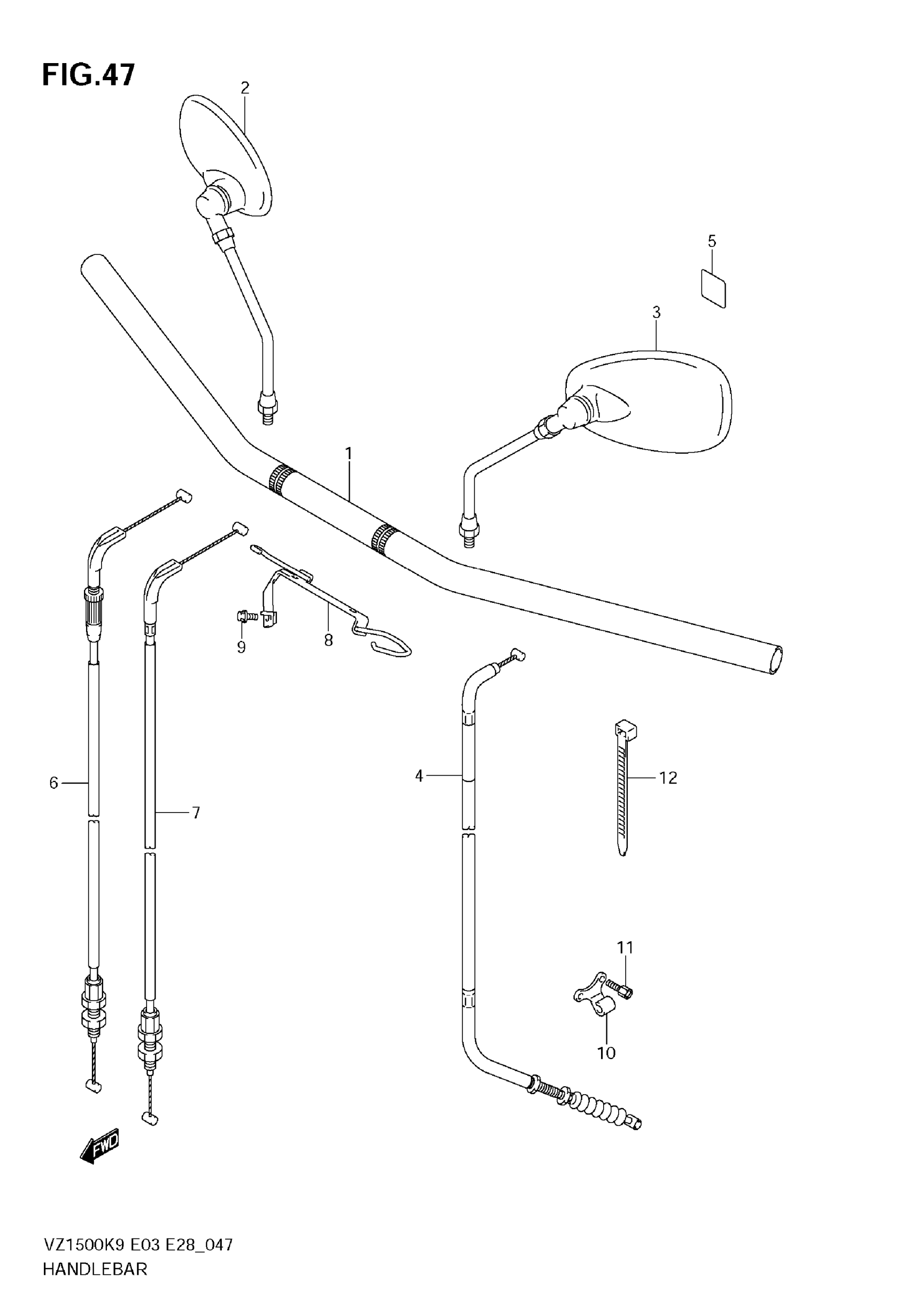

Suzuki VZ1500 (2009) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-40H00

$286.35

2

MIRROR ASSY, REAR VIEW RH

56500-14G20

$182.15

3

MIRROR ASSY, REAR VIEW LH

56600-14G20

$182.15

4

CABLE ASSY, CLUTCH

58200-40H00

$94.90

5

TAPE, HEAD PIPE

87873-56K50

$11.18

6

CABLE ASSY, THROTTLE NO.1

58300-40H00

Unavailable

7

CABLE ASSY, THROTTLE NO.1

58300-40H10

$42.68

8

GUIDE, CABLE

58620-40H00

Unavailable

9

BOLT, GUIDE

01547-0612B

$1.25

10

STOPPER, CABLE

58634-40H00

$17.40

11

BOLT, STOPPER

01547-0612A

$2.09

12

CLAMP

09407-10403

Unavailable
