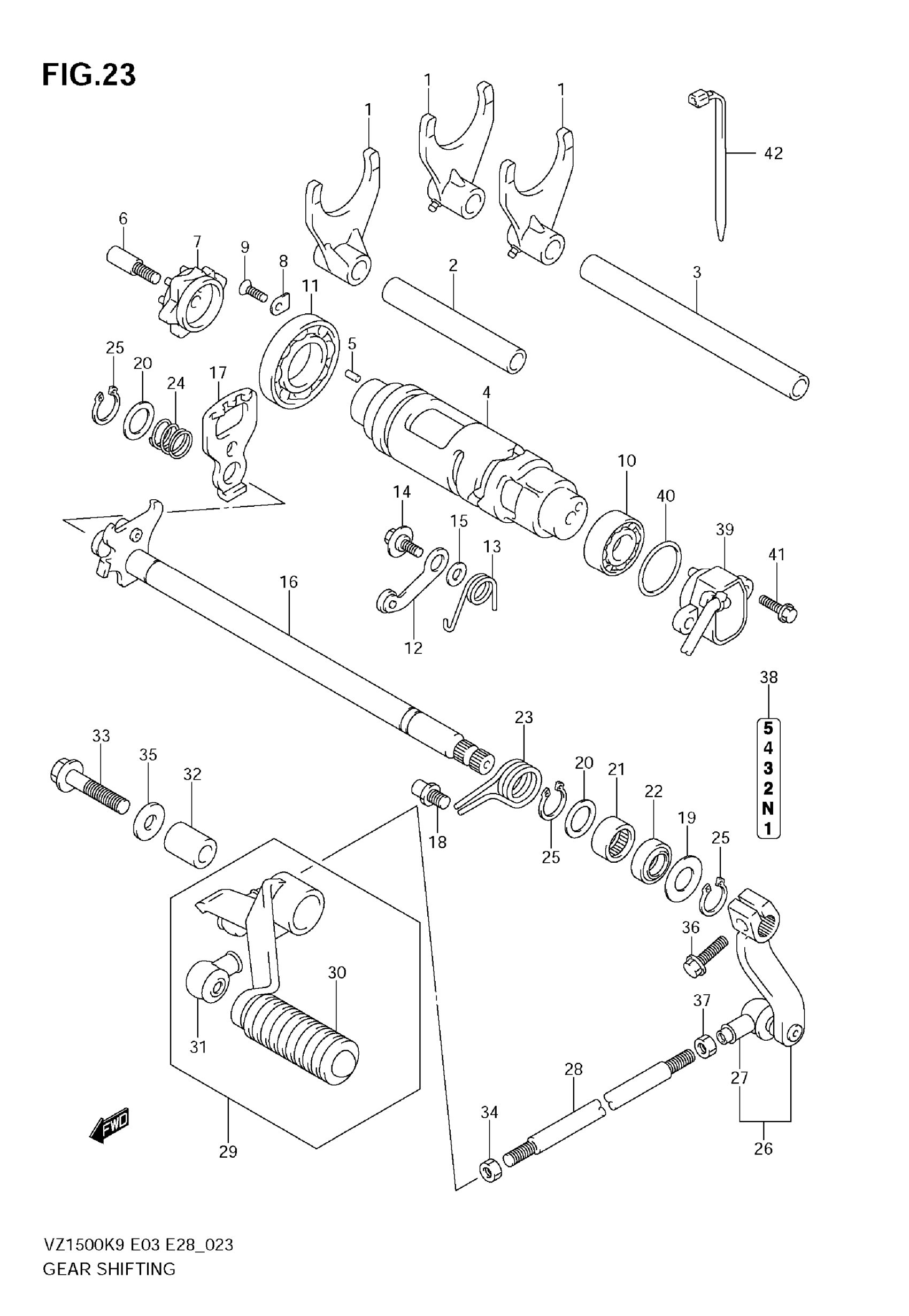

Suzuki VZ1500 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT

25211-35F11

$86.59

2

SHAFT, GEAR SHIFT FORK

25411-38B01

$28.93

3

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$31.70

4

CAM, GEAR SHIFT | Includes Item(s) 5

25310-40H00

$265.62

5

PIN (4X13.8)

04221-04089

$1.49

6

STOPPER, SHIFT CAM DRIVE

25312-42F01

$7.95

7

PLATE, GEAR SHIFT CAM

25381-13E00

$56.02

8

RETAINER

24741-20A00

$2.81

9

SCREW, REATAINER (6X12)

09126-06011

$2.03

10

BEARING

08113-69050

$35.66

11

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$21.39

12

STOPPER, SHIFT CAM

25350-24F00

$34.15

13

SPRING, GR SHF CAM STOPPER ARM

25355-24F00

$7.16

14

BOLT, SHIFT CAM STOPPER ARM

09111-06041

$2.61

15

WASHER, CAM STOPPER THRUST

08211-06141

$1.59

16

SHAFT, GEAR SHIFT

25510-40H00

Unavailable

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

18

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

19

WASHER, GEAR SHIFT, L | 14X29X0.8

09160-14016

$1.93

20

WASHER, GEAR SHIFT SHAFT | 14X22X1.0

09181-14167

$2.53

21

BEARING, GEAR SHIFT SHAFT

09263-14027

$13.52

22

SEAL, GEAR SHIFT SHAFT OIL

09283-14006

$6.70

23

SPRING, GEAR SHIFT PLATE

09440-17009

$1.71

24

SPRING, SHIFT SHAFT

09444-20001

$5.24

25

CIRCLIP, GEAR SHIFT

08331-3114A

$1.91

26

ARM,GEAR SHIFT | Includes Item(s) 27 This part replaces 25520-40H00.

25520-40H01

$45.92

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28

ROD, GEAR SHIFT LINK (L:310)

25525-17C20

$17.03

29

LEVER ASSY,GEAR | Includes Item(s) 30 - 31 This part replaces 25600-40H00.

25600-40H01

$119.85

30

RUBBER, GEAR SHIFT

25652-38B00

$5.36

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

32

SPACER, GEAR SHIFT

25617-10F00

$14.02

33

BOLT, GEAR SHIFT (10X40)

09103-10300

$6.28

34

NUT, GEAR SHIFT LINK, L

09140-06025

$2.05

35

WASHER, GEAR SHIFT LEVER | 10.5X24X2.3

09160-10093

$2.35

36

BOLT, GEAR SHIFT LINK

01547-0620A

$2.03

37

.NUT

08310-00067

$2.13

38

LABEL, GEAR SHIFT

68392-38B00

Unavailable

39

SENSOR ASSY,GEA This part replaces 37730-18H01.

37730-18H03

$83.58

40

O RING (DD:2.4,ID:26.2)

09280-26005

$2.30

41

BOLT

07120-0516A

$2.28

42

CLAMP, SHIFT SW (L:125)

09407-14403

$2.26
