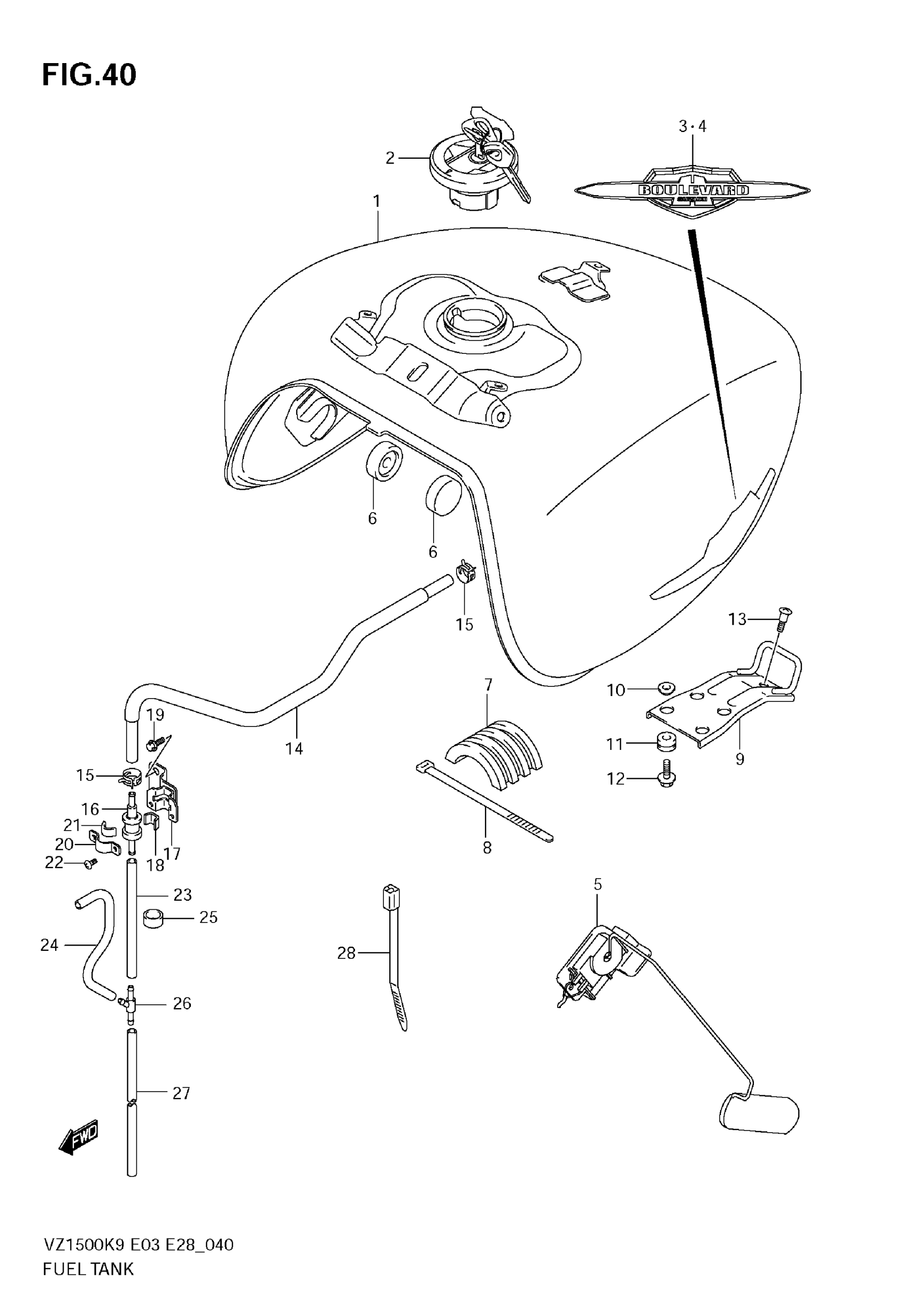

Suzuki VZ1500 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-40H20-YAY

Unavailable

1

TANK ASSY, FUEL (RED)

44100-40H20-YHL

Unavailable

1

TANK ASSY, FUEL (BLUE)

44100-40H20-YSF

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-39840.

44200-39841

$180.32

3

EMBLEM, RH

68111-40H00

$71.38

4

EMBLEM, LH

68121-40H00

$72.73

5

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION, SIDE

44541-04F00

Unavailable

8

CLAMP

09407-30402

$4.11

9

BRACKET, REAR

44530-40H00

Unavailable

10

SPACER

09169-06062

$2.50

11

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

12

BOLT, BRACKET

09116-06192

$2.30

13

BOLT (8X12)

01550-0812A

$2.32

14

HOSE, TANK & VALVE

44434-40H10

Unavailable

15

CLIP

09401-11413

$2.26

16

VALVE, BREATHER

44240-38A00

$61.15

17

BRACKET | Includes Item(s) 18

44880-40H00

Unavailable

18

CUSHION (10X30X2)

44894-24A00

$1.72

19

BOLT

01547-0610A

$2.45

20

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 21

44892-24A00

$4.52

21

CUSHION (10X30X2)

44894-24A00

$1.72

22

SCREW

02142-0408A

$1.55

23

.HOSE This part replaces 09352-50903-600.

09352-50006-600

$7.48

24

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

25

HOSE, JOINT (L600!10)

09352-13162-600

$24.87

26

3 WAY

09367-06007

$3.46

27

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

28

CLAMP

09407-19401

$3.05
