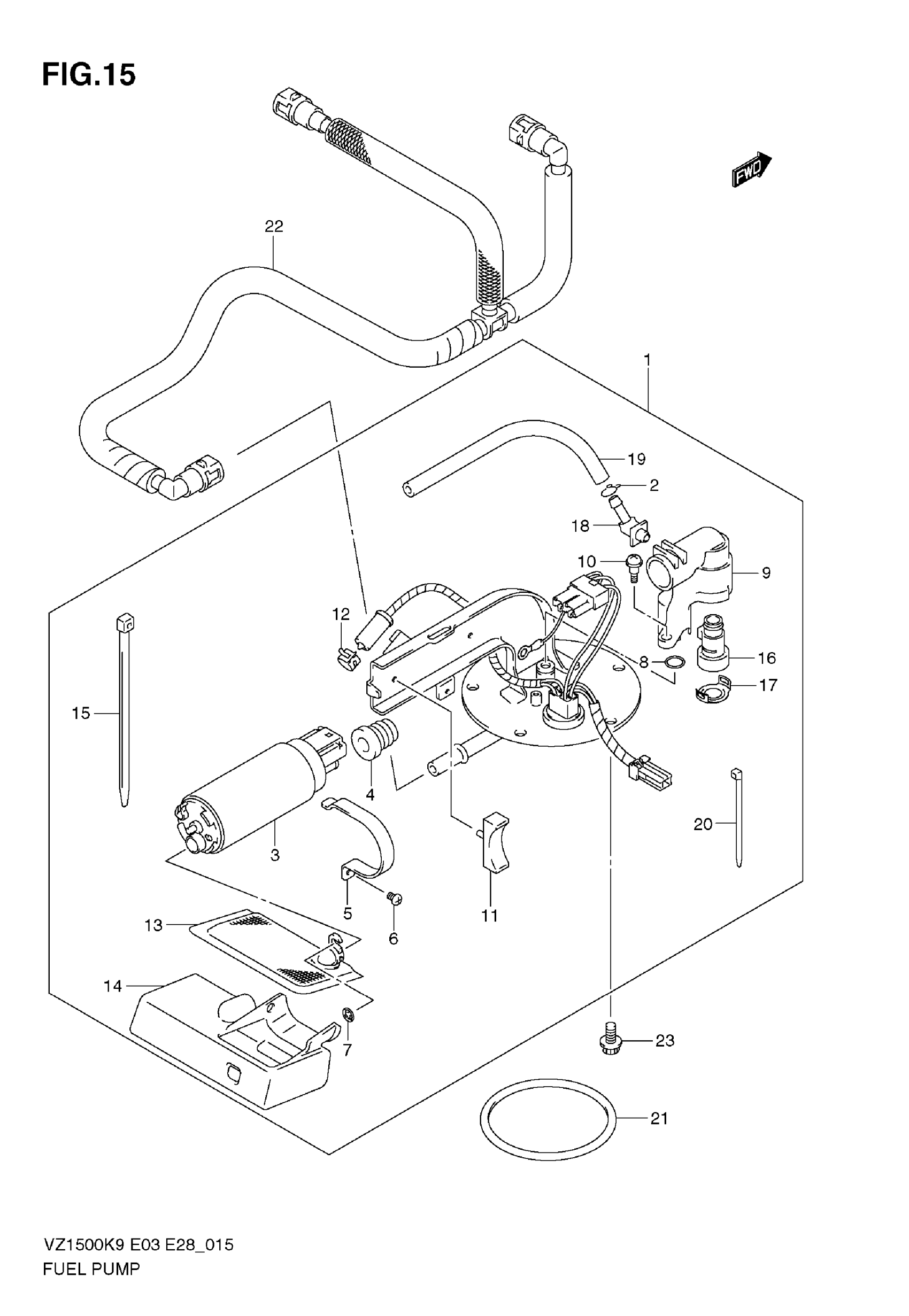

Suzuki VZ1500 (2009) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 20 This part replaces 15100-40H00.

15100-40H01

$583.50

2

CLIP

13693-24F00

$3.22

3

PUMP

15110-48G00

$388.23

4

.INSULATOR This part replaces 15114-48G00.

15114-48G01

$20.47

5

HOLDER

15115-14G00

Unavailable

6

SCREW

15116-48G00

$5.58

7

PLATE

15119-14G00

$5.38

8

O RING

15125-48G00

$14.27

9

ADAPTER

15131-48G00

Unavailable

10

SCREW

15135-48G00

Unavailable

11

INSULATOR

15141-48G00

Unavailable

12

CLAMP

15175-48G00

Unavailable

13

FILTER

15420-22H00

$100.92

14

COVER

15425-40H00

Unavailable

15

BAND

15426-48G00

$12.82

16

REGULATOR

15610-48G00

$201.52

17

CLIP

15613-48G00

Unavailable

18

JOINT

15614-48G00

Unavailable

19

HOSE

15615-48G00

$25.33

20

BAND

13432-43E00

Unavailable

21

O-RING

15201-35F00

$27.60

22

HOSE This part replaces 15810-40H00.

15810-40H01

$183.25

23

BOLT

07120-0612A

$2.50
