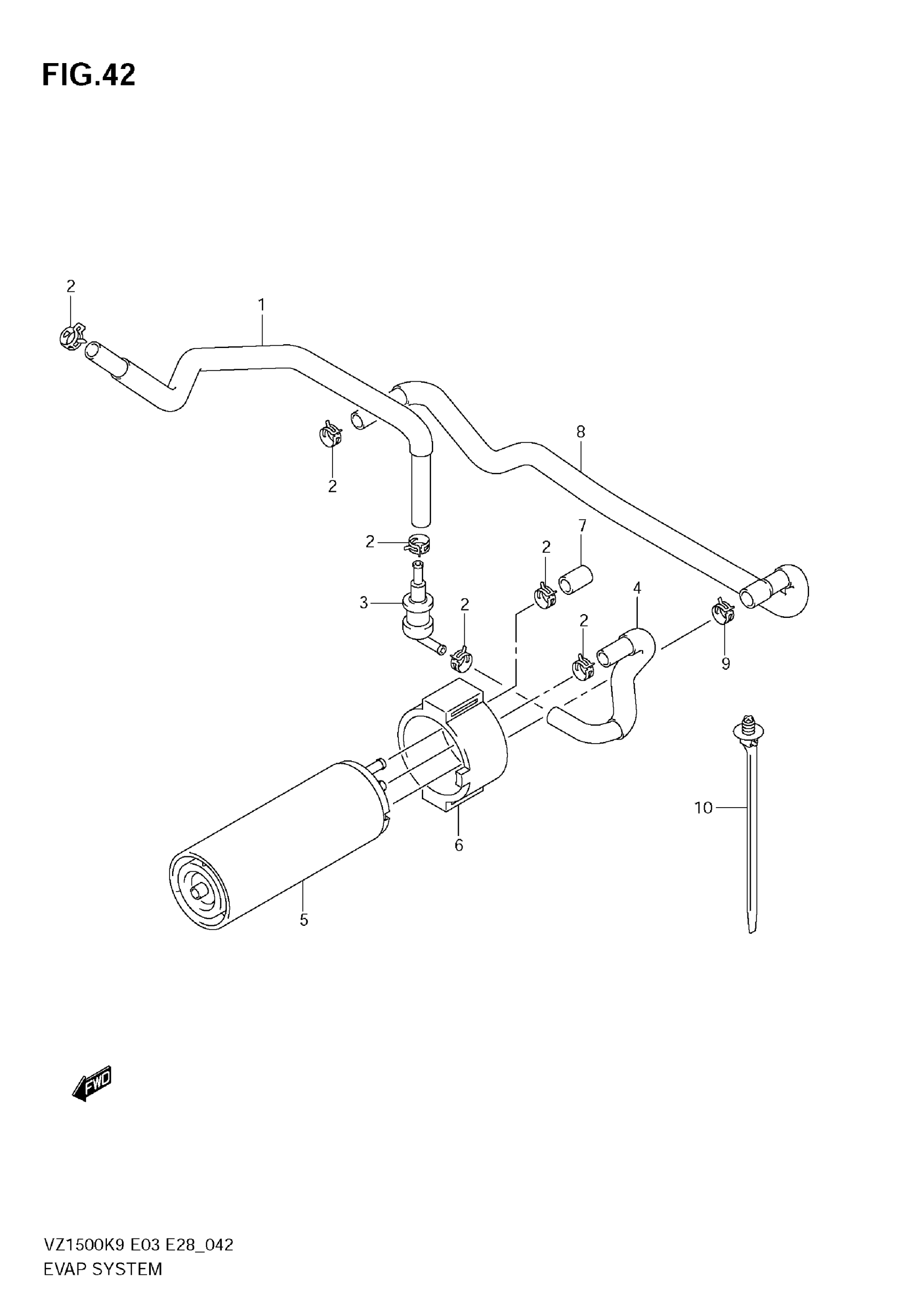

Suzuki VZ1500 (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-40H00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

HOSE, VALVE & CANISTER

44435-40H00

Unavailable

5

CANISTER ASSY

17210-15H00

$305.77

6

CUSHION

44883-48G00

Unavailable

7

CAP

09251-07003

$2.53

8

HOSE, CANISTER PURGE

44436-40H00

Unavailable

9

CLIP

09401-12404

$2.34

10

CLAMP

09407-17403

$4.91
