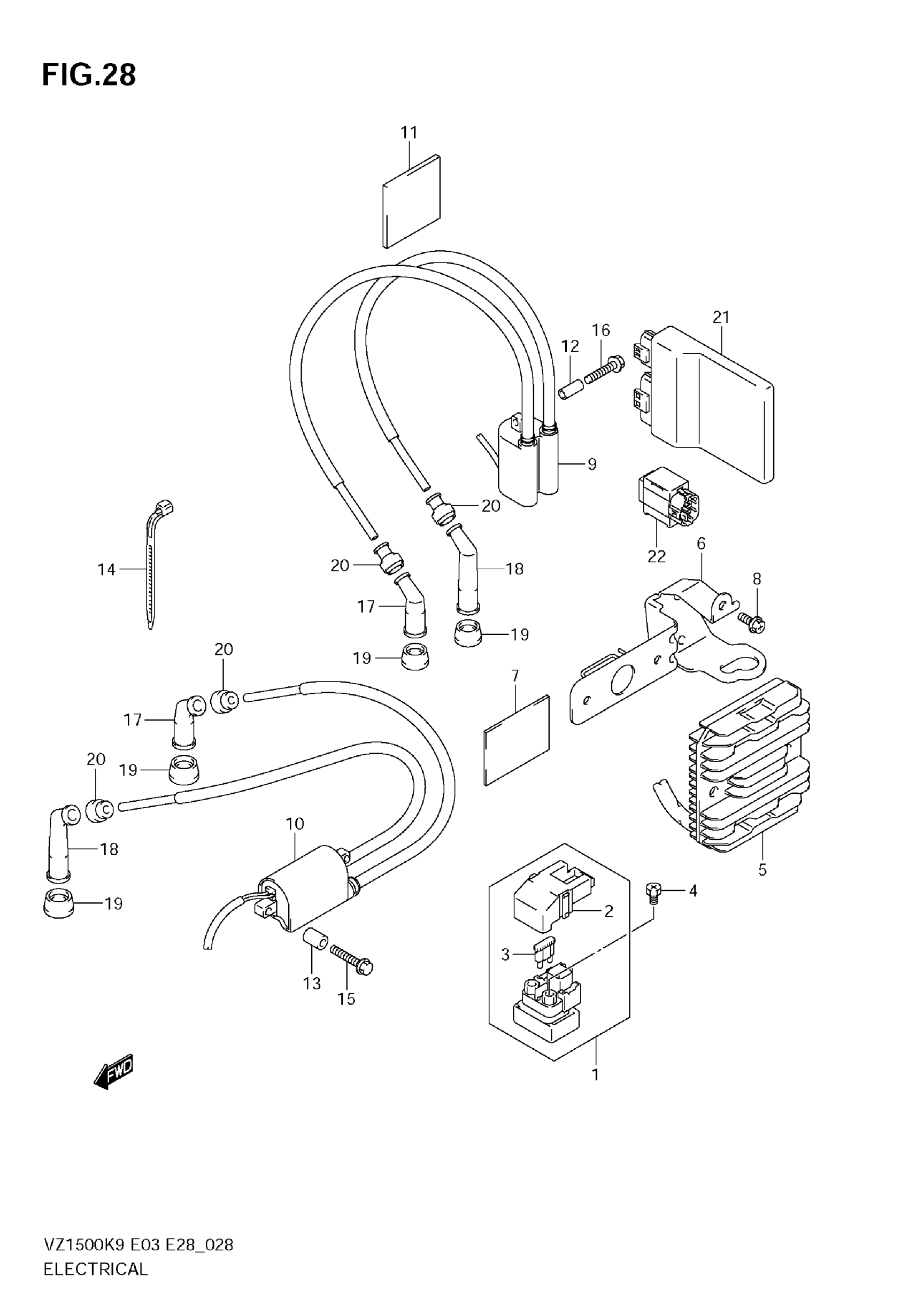

Suzuki VZ1500 (2009) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-06G00.

31800-06G02

$67.32

COVER

31861-47E00

$16.15

FUSE (30A)

09481-30101

$2.26

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

RECTIFIER ASSY This part replaces 32800-10G10.

32800-10G20

$271.06

BRACKET, RECT FTG

32830-40H00

Unavailable

PROTECTOR, RECT (80X80X2) | CUT AS REQUIRED(40X70)

33652-07D00

$5.64

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$106.57

COIL ASSY, IGNITION, FRONT

33420-40H00

Unavailable

CUSHION, HIGH TENSION CORD | 58X58X10

33442-41F00

Unavailable

SPACER, IGN RR (6.4X10X22)

09180-06178

$4.50

SPACER, IGN FR (6.2X12X16)

09180-06198

$4.32

CLAMP (L:165)

09407-18402

$2.19

BOLT, IG FR

01547-0635A

$2.30

BOLT, IG RR

01547-0640A

$2.32

CAP ASSY, SPARK (SIDE)

33510-38B00

$31.72

CAP ASSY, SPARK (CENTER)

33510-45010

$24.99

SEAL, SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL, UNIT, FI

32920-40H10

Unavailable

CONTROL, UNIT, FI | E33

32920-40H20

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
