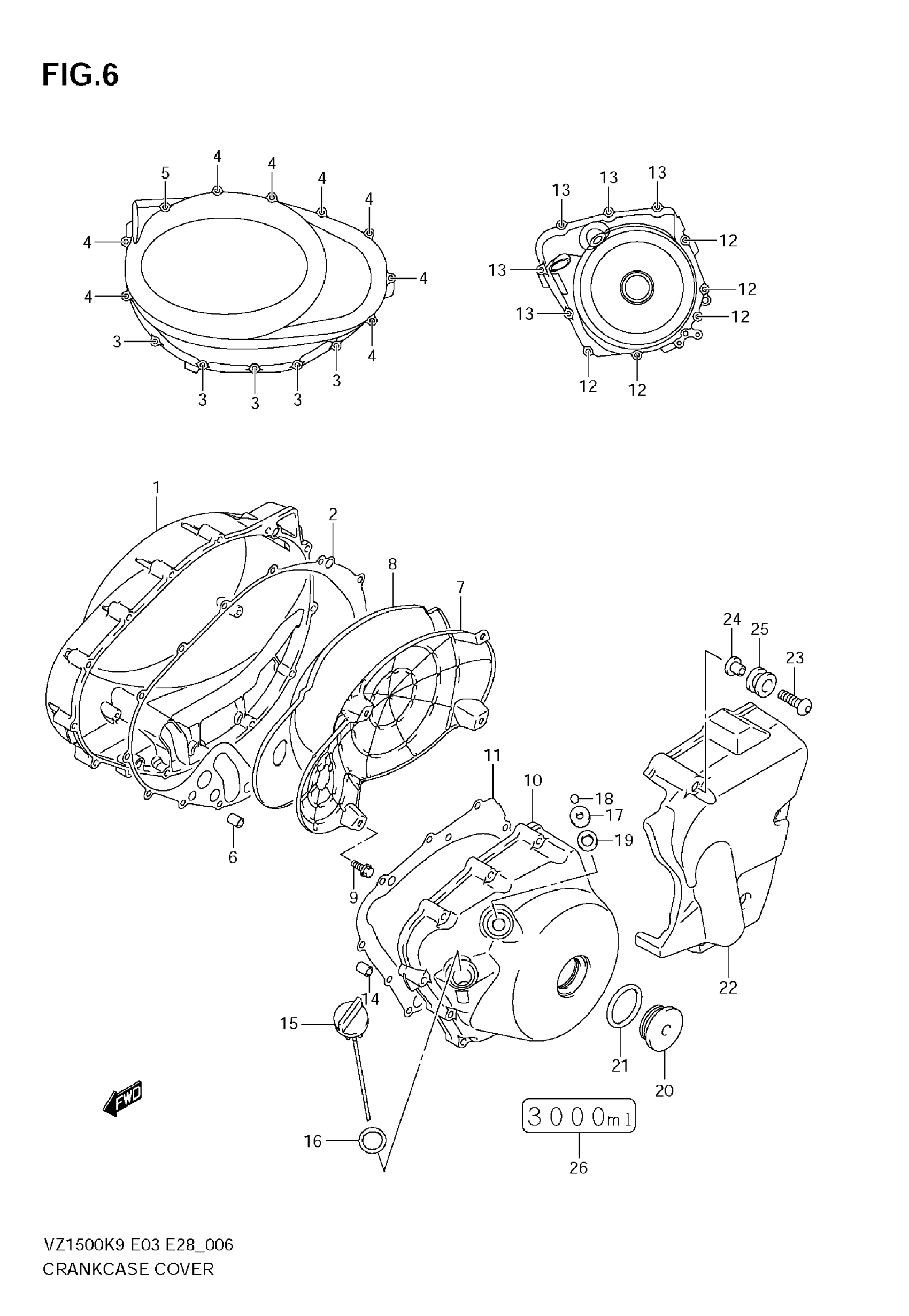

Suzuki VZ1500 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-40H00

Unavailable

2

GASKET, CLUTCH COVER

11482-40H00

$23.82

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X40)

09103-06215

$2.78

5

BOLT (6X50)

09103-06238

$2.66

6

PIN

04211-09189

$1.65

7

PLATE, CLUTCH COVER

11342-40H00

Unavailable

8

DAMPER, CLUTCH COVER

11343-40H00

Unavailable

9

BOLT

01547-0612A

$2.03

10

COVER, MAGNETO This part replaces 11351-40H00.

11351-40H01

Unavailable

11

GASKET, MAGNETO COVER

11483-40H00

$19.32

12

BOLT (6X30)

09103-06213

$2.47

13

BOLT (6X40)

09103-06215

$2.78

14

PIN

04211-09149

$1.65

15

GAUGE, OIL LEVEL

11971-09403

$11.95

16

O RING

09280-17003

$1.65

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

18

CAP, TDC PLUG

09250-08012

$2.15

19

GASKET

09168-14002

$2.26

20

PLUG, CRANKSHAFT HOLE

09259-36008

$8.46

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER, SECONDARY DRIVE

11361-40H00

Unavailable

23

BOLT (6X20)

09139-06028

$3.70

24

SPACER

09169-06062

$2.50

25

CUSHION

09320-09501

$2.03

26

NOTE, ENGINE OIL

68322-40H00

Unavailable
