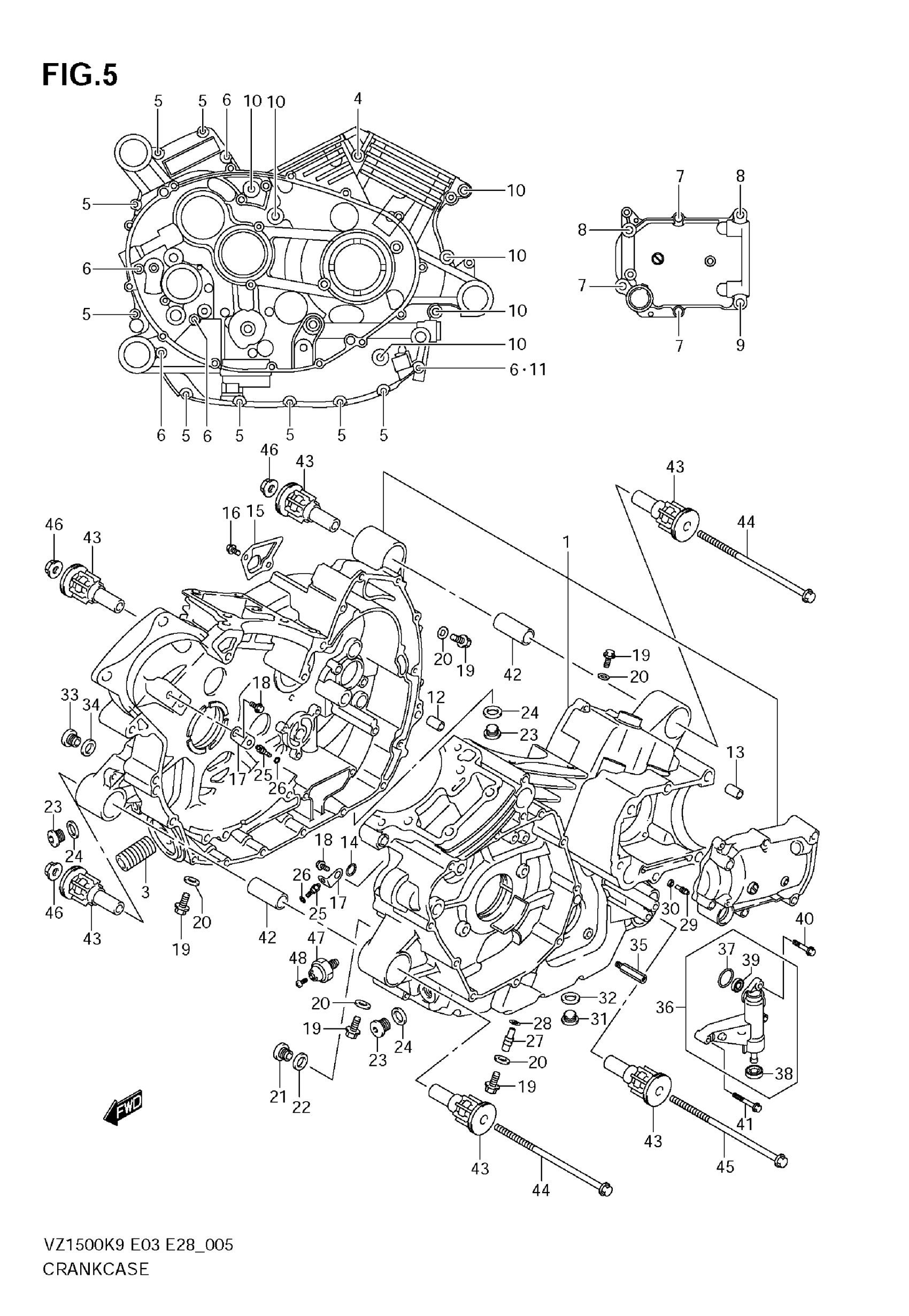

Suzuki VZ1500 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13 This part replaces 11301-40860.

11301-40870

$4,429.62

2

BEARING, CRANK THRUST (T:1.925) | SEE ILLUS ON FIG.7

12228-40H00-0A0

Unavailable

2

BEARING, CRANK THRUST (T:1.950)

12228-40H00-0B0

Unavailable

2

BEARING, CRANK THRUST (T:1.975)

12228-40H00-0C0

Unavailable

2

BEARING, CRANK THRUST (T:2.000)

12228-40H00-0D0

Unavailable

2

BEARING, CRANK THRUST (T:2.025)

12228-40H00-0E0

Unavailable

2

BEARING, CRANK THRUST (T:2.050)

12228-40H00-0F0

Unavailable

3

UNION,OIL STAND

16591-06B01

$7.05

4

BOLT (8X110)

09103-08122

$3.87

5

BOLT

01547-0645A

$2.42

6

BOLT

01547-0685A

Unavailable

7

BOLT

01550-0845A

$3.14

8

BOLT

01550-0860A

$4.17

9

BOLT

01550-0870A

$4.32

10

BOLT

01550-0880A

$3.61

11

GASKET

09168-06023

$2.35

12

PIN,CRANKCASE

11319-33E50

$5.32

13

PIN

09206-11007

$2.37

14

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$3.18

15

PLATE, OIL SEPARATOR

11313-40H00

Unavailable

16

BOLT

01547-0612A

$2.03

17

PLATE, PISTON JET REAR

16439-38B00

Unavailable

18

BOLT

01547-0612A

$2.03

19

BOLT (8X12)

01550-0812A

$2.32

20

GASKET (8.2X14X1)

09168-08016

$1.65

21

PLUG, OIL GALLERY

09248-10010

$4.17

22

GASKET

09168-10002

$2.13

23

PLUG, OIL GALLERY

09248-16012

$4.64

24

GASKET

09168-16002

$1.91

25

JET, PISTON COOLING

09493-80009

$20.72

26

O RING

09280-04004

$1.91

27

JET, MISSION OIL

09493-24009

Unavailable

28

O RING

09280-04004

$1.91

29

JET, SECONDARY OIL

09493-36004

$16.87

30

O RING

09280-04004

$1.91

31

PLUG, OIL DRAIN

09247-14036

$6.17

32

GASKET

09168-14002

$2.26

33

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

34

GASKET

09168-14002

$2.26

35

BOLT

11372-22H00

$15.00

36

CAMSHAFT SET, CLUTCH RELEASE | Includes Item(s) 37 - 39

23120-41810

Unavailable

37

O RING (D:2.5,ID:21)

09280-21008

$1.91

38

SEAL, OIL

09282-10012

$7.98

39

SEAL, OIL

09285-10004

$3.37

40

BOLT

01547-0620A

$2.03

41

BOLT

01547-0630A

$2.32

42

SPACER, ENG MTG

11611-48G00

Unavailable

43

BUSH, ENG MTG

11652-40H00

$30.22

44

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

45

BOLT (10X195)

09103-10118

$11.56

46

NUT

08319-3110A

$2.73

47

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 48 This part replaces 37820-33D10.

37820-33D11

$25.13

48

BOLT

37822-33D00

$4.35
