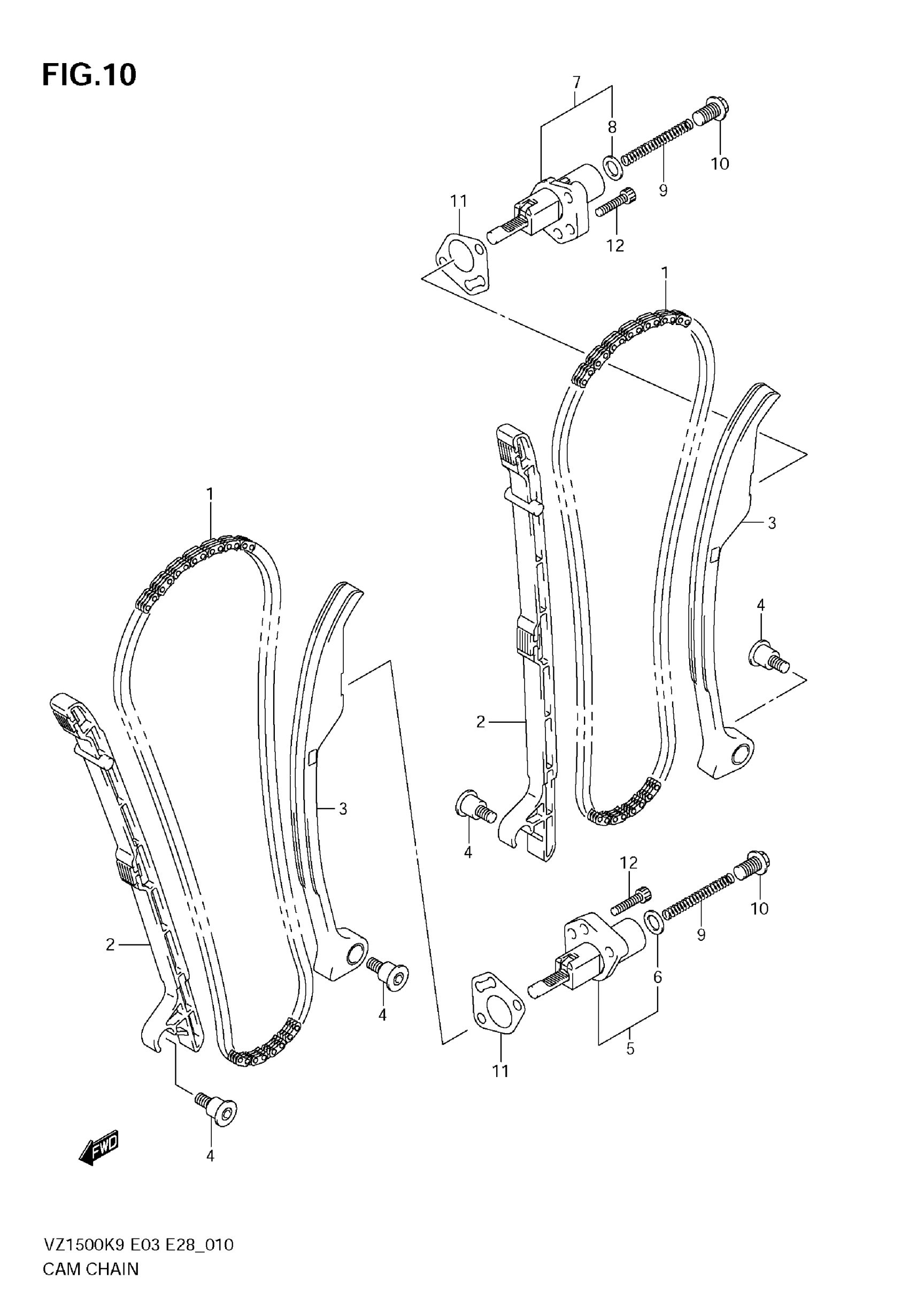

Suzuki VZ1500 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-40H00

Unavailable

2

GUIDE,CAM CHAIN This part replaces 12771-40H00.

12771-40H01

$35.50

3

TENSIONER, CAM CHAIN

12811-40H00

Unavailable

4

BOLT

12812-31G00

$4.58

5

ADJUSTER ASSY, TENSIONER FR | Includes Item(s) 6

12830-40H00

Unavailable

6

GASKET

12837-24F10

$4.78

7

ADJUSTER ASSY, TENSIONER RR | Includes Item(s) 8

12830-40H10

Unavailable

8

GASKET

12837-24F10

$4.78

9

SPRING

12831-41G00

$5.62

10

PLUG

12833-17G00

$7.87

11

GASKET

12837-27G00

$4.72

12

BOLT

07130-0625B

$3.04
