Description

Price

1

STARTER ASY

89A-15710-02-00

Unavailable

2

CASE, STARTER

89A-15711-02-00

Unavailable

3

DRUM, SHEAVE

24W-15714-00-00

$57.99

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

PLATE, DRIVE

21V-15716-00-00

$27.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

11

HANDLE, STARTER

8F3-15755-00-00

$29.99

12

BOLT(8CP)

97017-06014-00

$8.49

13

WASHER(6TA)

92907-06600-00

$2.72

14

PULLEY, STARTER

89A-15723-01-00

Unavailable

15

BOLT(8BT)

97017-10020-00

$8.49

16

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

17

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

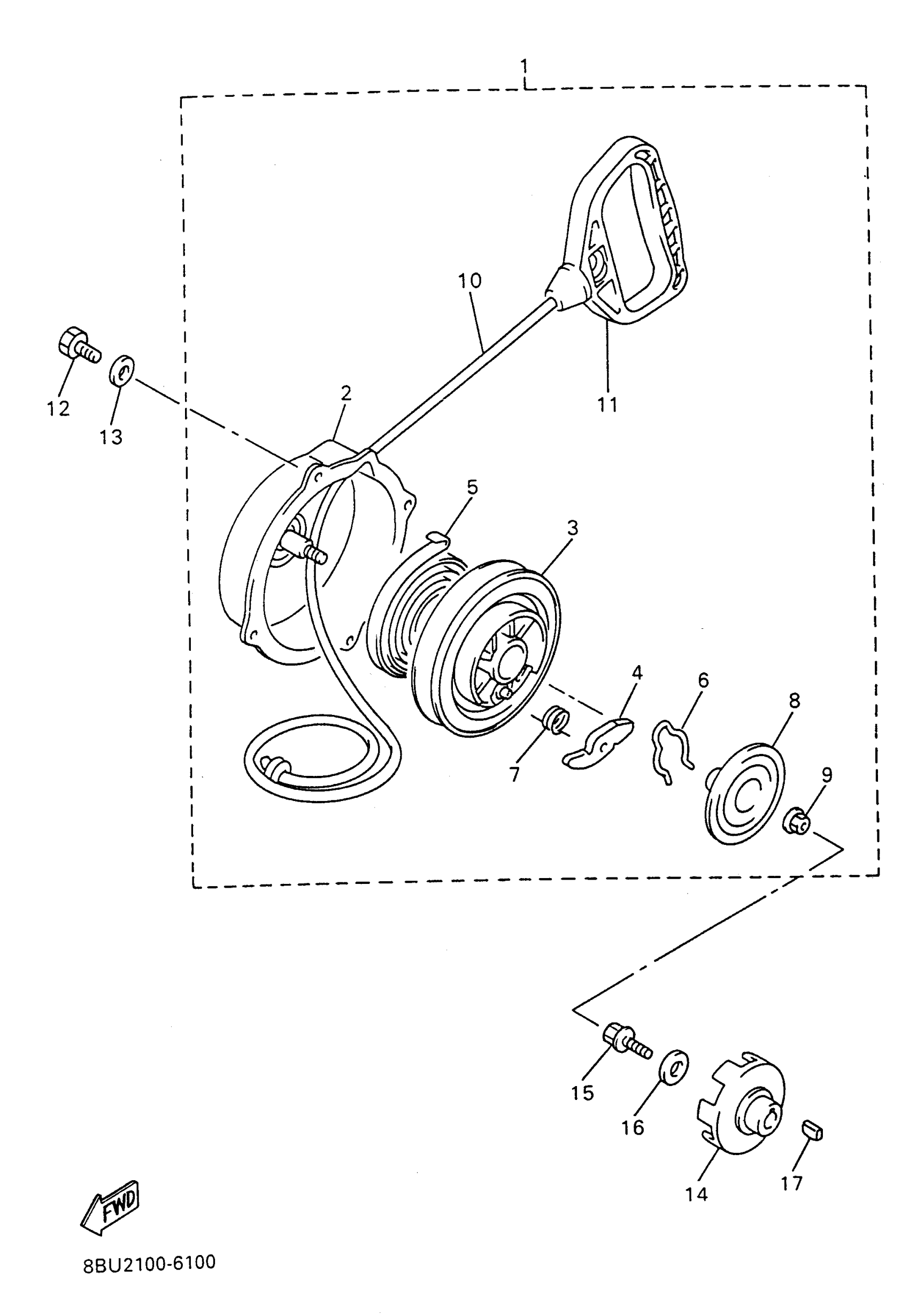

Yamaha VX800W (VMAX-4 800) 1996 STARTER Diagram

STARTER ASY

CASE, STARTER

DRUM, SHEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

SPRING

PLATE, DRIVE

NUT, FLANGE(7NB)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

BOLT(8CP)

WASHER(6TA)

PULLEY, STARTER

BOLT(8BT)

WASHER, PLATE(42X)

KEY, WOOD RUFF (324)
