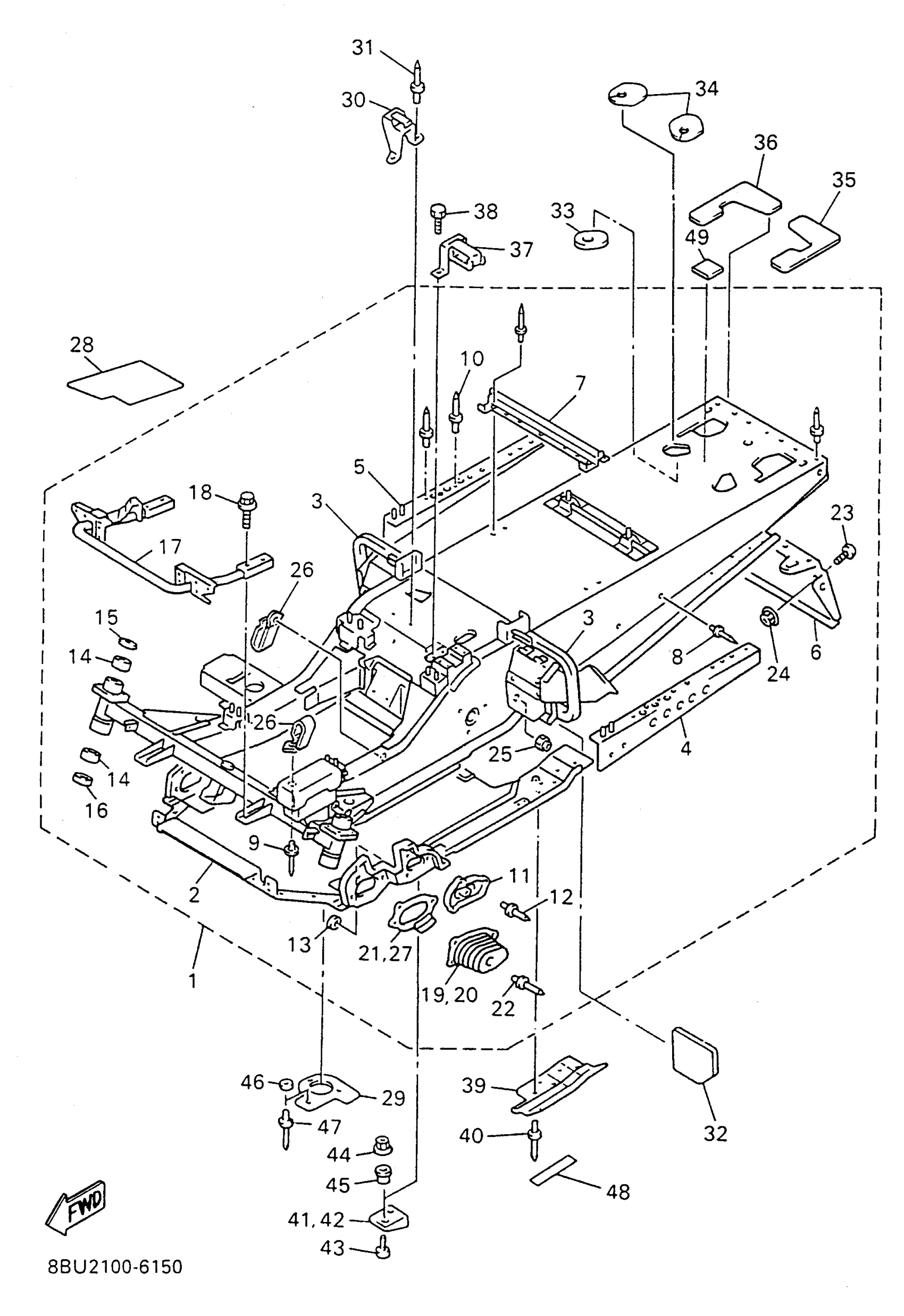

Yamaha VX800W (VMAX-4 800) 1996 FRAME Diagram
#
1
FRAME COMP.
8BU-21910-10-00
Unavailable
2
. PANEL, SUB FRAME 1
89A-21912-00-00
Unavailable
3
. REINFORCEMENT, FOOTREST 1
89A-21926-00-00
Unavailable
4
. PATCH 4
8AB-21964-00-00
Unavailable
5
. PATCH 5
8AB-21965-00-00
Unavailable
6
RNFCMNT,FRAME REAR
89A-21923-20-00
Unavailable
7
. BRACKET, SEAT FITTING
8AB-21946-00-00
Unavailable
8
RIVET, BLIND (8K1)
90267-40076-00
$8.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
RIVET(89R)
90269-04044-00
Unavailable
11
COVER 1
8M6-2198F-00-00
$31.99
12
RIVET, BLIND
90267-40029-00
$8.49
13
WASHER, PLATE
90201-04027-00
$3.02
14
. BUSH, SOLID
90380-38205-00
Unavailable
15
. OIL SEAL
93102-38441-00
Unavailable
16
. OIL SEAL
93103-38172-00
Unavailable
17
. BUMPER, FRONT 2
89A-77512-00-00
Unavailable
18
BOLT, FLANGE
95817-08040-00
Unavailable
19
. COVER 1
89A-2198F-00-00
Unavailable
20
. COVER 3
89A-2198J-00-00
Unavailable
21
. WASHER 2
89A-77526-00-00
Unavailable
22
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
23
SCREW,BINDING
98907-08014-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
NUT, NYLON
95707-06300-00
Unavailable
26
CLAMP(51Y)
90465-08277-00
Unavailable
27
. WASHER 1
89A-77525-00-00
Unavailable
28
SHIELD, HEAT
89A-2199H-01-00
Unavailable
29
SHIELD, NOISE
89A-2199F-00-00
Unavailable
30
BRACKET 4
89A-2196G-00-00
Unavailable
31
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
32
COVER 2
89A-2198G-10-00
Unavailable
33
PATCH 5
82M-21965-00-00
Unavailable
34
PATCH 5
88R-21965-00-00
Unavailable
35
COVER 6
8AB-1246J-00-00
Unavailable
36
COVER 7
8AB-1246K-00-00
Unavailable
37
BRACKET 3
89A-2196F-00-00
Unavailable
38
BOLT(4GV)
97017-05012-00
Unavailable
39
FRAME UNDER 1
89A-2196A-01-00
Unavailable
40
RIVET, BLIND
90267-48018-00
$9.49
41
PAD 1
89A-77151-00-00
Unavailable
42
PAD 2
89A-77152-00-00
Unavailable
43
SCREW, WITH WASHER (5U8)
90159-06056-00
Unavailable
44
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
45
COLLAR (3L6)
90387-06737-00
Unavailable
46
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
47
RIVET, BLIND
90267-48018-00
$9.49
48
TRIM, LOWER
89A-77214-00-00
Unavailable
49
DAMPER
5H0-8235Y-M0-00
Unavailable
