Description

Price

1

STARTER ASY

89A-15710-02-00

Unavailable

2

CASE, STARTER

89A-15711-02-00

Unavailable

3

DRUM, SHEAVE

24W-15714-00-00

$57.99

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

PLATE, DRIVE

21V-15716-00-00

$27.99

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

11

HANDLE, STARTER

8F3-15755-00-00

$29.99

12

BOLT, FLANGE

95817-06012-00

$1.43

13

PULLEY, STARTER

89A-15723-01-00

Unavailable

14

BOLT(8BT)

97017-10020-00

$8.49

15

WASHER, PLATE(42X)

90201-105H3-00

$7.49

16

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable

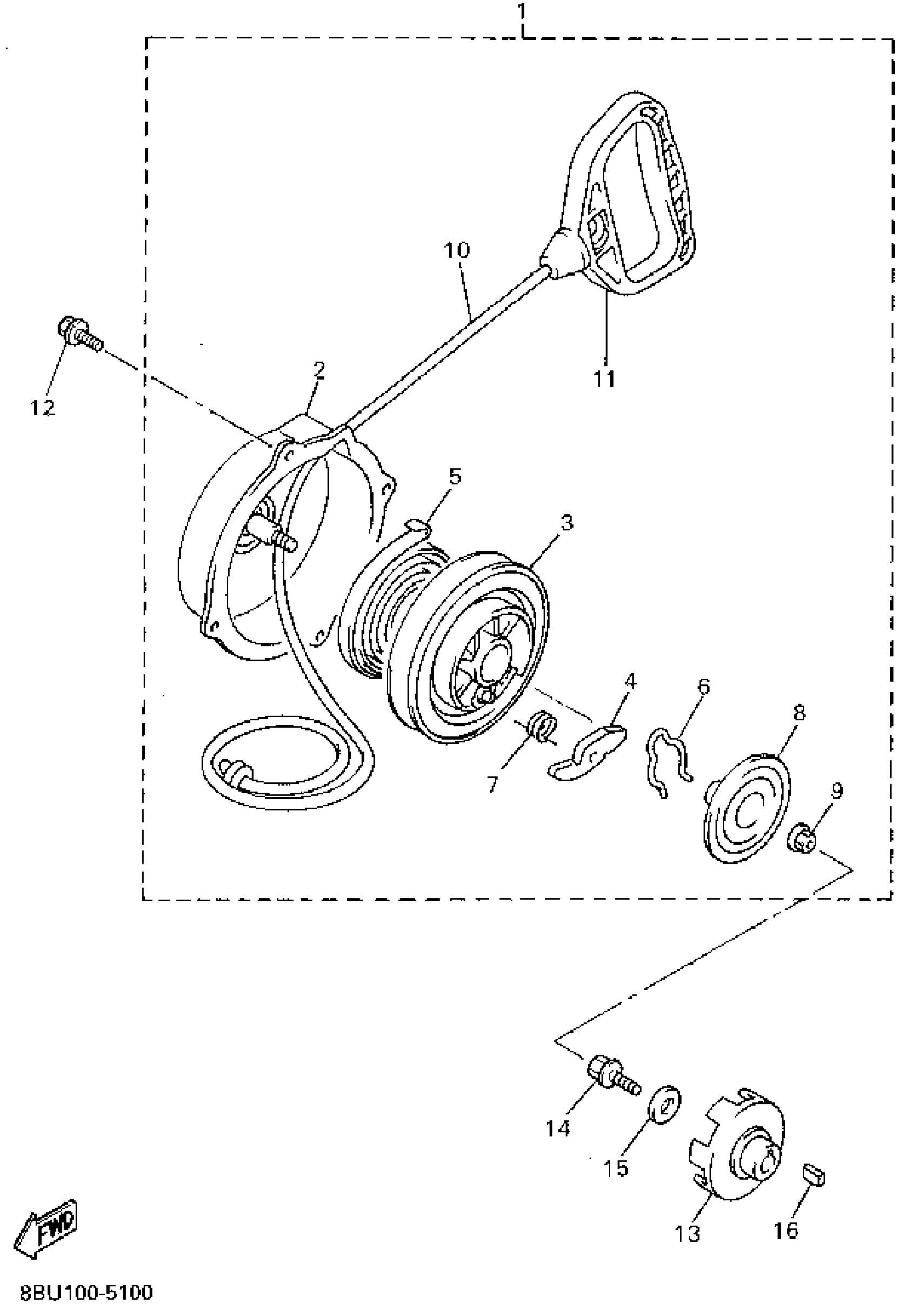

Yamaha VX800V (VMAX-4 800) 8BU1 1995 STARTER Diagram

STARTER ASY

CASE, STARTER

DRUM, SHEAVE

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

SPRING

PLATE, DRIVE

NUT, FLANGE(7NB)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

BOLT, FLANGE

PULLEY, STARTER

BOLT(8BT)

WASHER, PLATE(42X)

KEY, WOOD RUFF (324)
