- VX800V (VMAX-4 800) 8BU1 1995
SECONDARY SHEAVE

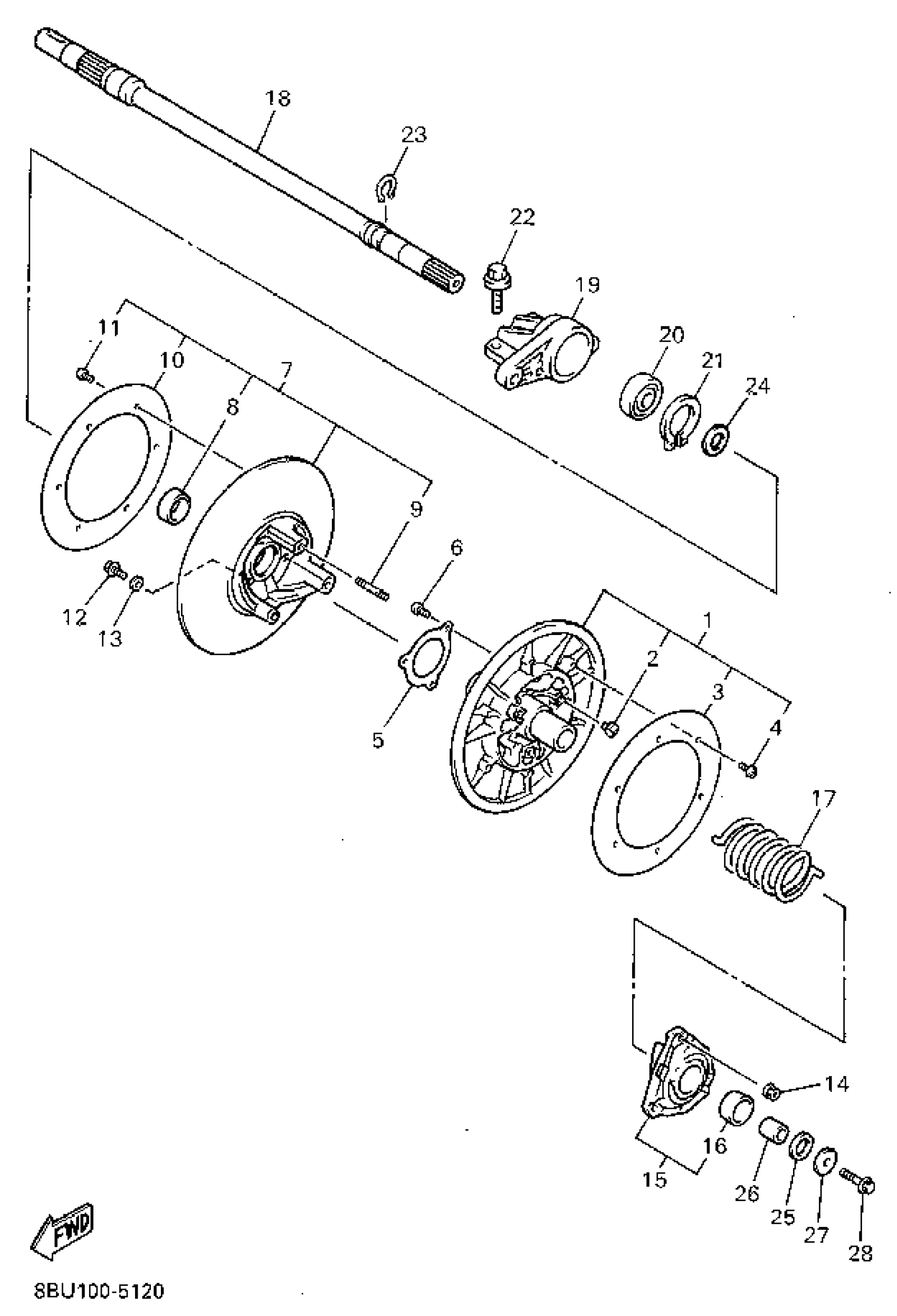

Yamaha VX800V (VMAX-4 800) 8BU1 1995 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
8BU-17660-10-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
. PLATE 1
8BV-17665-00-00
Unavailable
4
GASKET, EXHAUST
98507-05008-00
$3.55
5
STOPPER, HOLDER
8BV-17656-00-00
$22.99
6
SCREW, BINDING
98907-06016-00
$9.49
7
SECONDARY SLIDING SHEAVE
8BV-17670-10-00
Unavailable
8
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
9
BOLT, STUD 3
95617-08630-00
$4.99
10
. PLATE 1
8BV-17665-00-00
Unavailable
11
GASKET, EXHAUST
98507-05008-00
$3.55
12
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
13
WASHER, PLATE (22K)
90201-061H1-00
$4.72
13
WASHER, PLATE (371)
90201-06431-00
$5.60
14
NUT(8BN)
90179-08655-00
$10.49
15
SEAT SPRING SET
8BV-17604-11-00
Unavailable
15
SEAT SPRING SET
8BV-17604-31-00
Unavailable
15
SEAT SPRING SET
8BV-17604-91-00
Unavailable
16
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
17
SPRING, TORSION(8AB)
90508-536A9-00
Unavailable
17
SPRING, TORSION(8BN)
90508-556A2-00
Unavailable
17
SPRING, TORSION(8BT)
90508-556A7-00
Unavailable
18
SHAFT, SECONDARY
8BU-17681-00-00
Unavailable
19
HOUSING, BEARING
8BU-47631-00-00
Unavailable
20
BEARING
93306-30567-00
Unavailable
21
CIRCLIP(MF1)
99009-62500-00
Unavailable
22
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
23
CIRCLIP (256)
93410-25017-00
Unavailable
24
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
24
WASHER, PLATE (888)
90201-25526-00
Unavailable
24
WASHER, PLATE (888)
90201-25527-00
Unavailable
25
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
25
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
26
COLLAR
90387-1405J-00
Unavailable
27
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
28
BOLT, WASHER BASED
90105-10741-00
Unavailable
