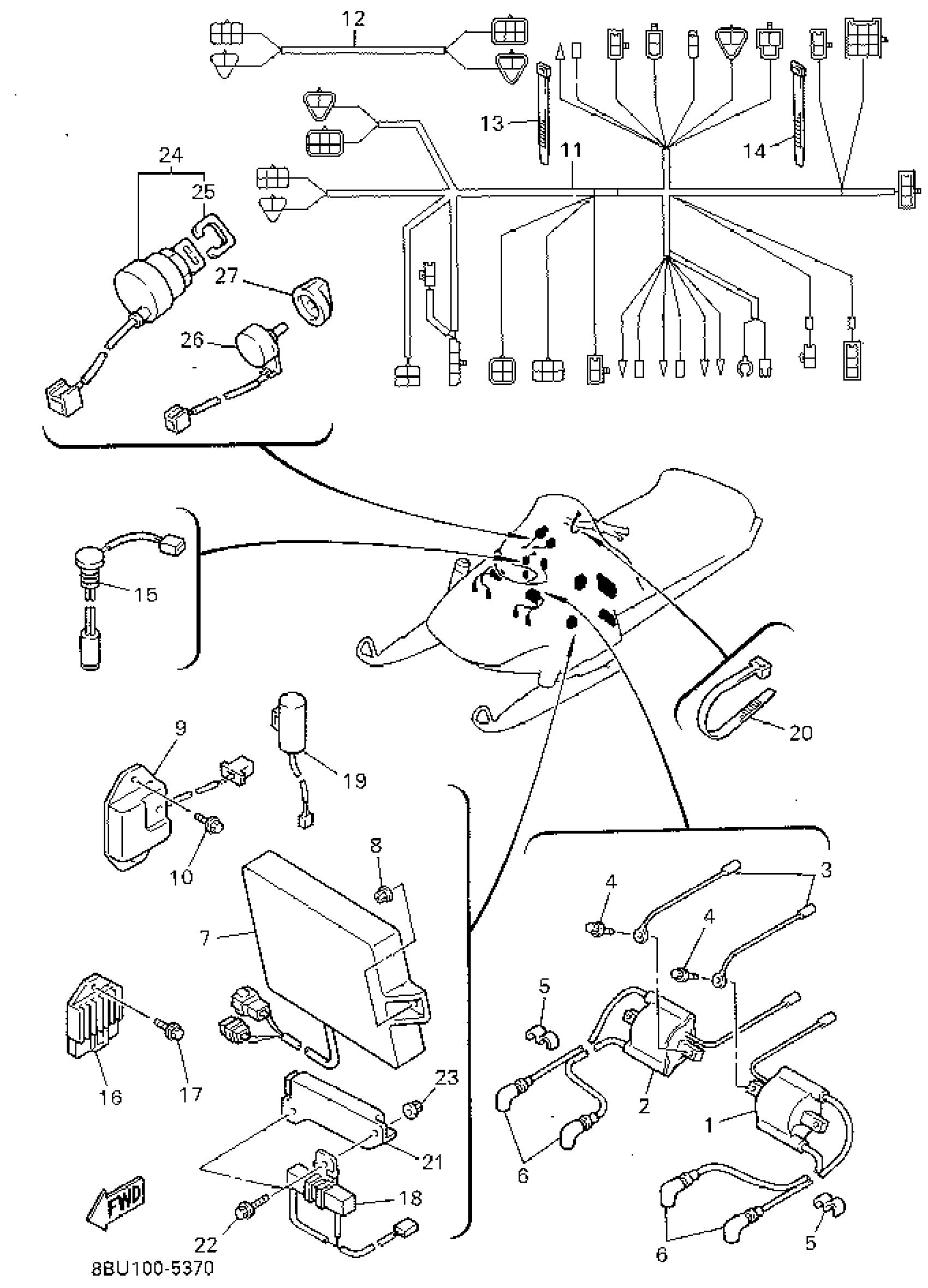

Yamaha VX800V (VMAX-4 800) 8BU1 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

85T-82310-06-00

$79.99

2

IGNITION COIL ASSY

89A-82320-09-00

Unavailable

3

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

4

BOLT, FLANGE DEEP RECESS

95D95-06020-00

Unavailable

5

CLAMP, CORD

861-82361-00-00

Unavailable

6

PLUG CAP ASSY

8DG-82370-00-00

$49.99

7

C. D. I. UNIT ASSEMBLY

8BU-85540-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$2.75

11

WIRE HARNESS ASSEMBLY

8BU-82590-00-00

Unavailable

12

WIRE HARNESS ASSEMBLY 2

8BU-82580-00-00

Unavailable

13

BAND

341-26397-01-00

Unavailable

14

BAND, SWITCH CORD

25G-83936-01-00

$4.78

15

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

16

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

17

BOLT, FLANGE

95817-06016-00

$2.75

18

RESISTOR ASY

89M-85370-00-00

Unavailable

19

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

20

BAND, SWITCH CORD

25G-83936-01-00

$4.78

21

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

Unavailable

22

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

23

NUT,SELF-LOCKING

95607-06200-00

Unavailable

24

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

25

CAP, KEY

526-82579-00-00

Unavailable

26

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

27

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable
