Description

Price

1

HEAD, CYLINDER 1

8BU-11111-00-00

Unavailable

2

BR9ES NGK SOLID TOP PLUG 4PK

BR9-ES01P-C0-00

Unavailable

3

GASKET, CYLINDER HEAD 1

8BU-11181-00-00

Unavailable

4

NUT(55X)

90179-08491-00

$8.49

5

JOINT 2

89A-1247A-00-00

Unavailable

6

GASKET

89A-12435-00-00

Unavailable

7

BOLT, FLANGE

95817-06035-00

$7.49

8

THERMOSTAT

82M-12411-00-00

$75.99

9

SEAL, THERMOSTAT

8A7-12412-01-00

$16.49

10

COVER, THERMOSTAT

89A-12413-00-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER(6TA)

92907-06600-00

$2.72

13

JOINT

8A7-12499-00-00

Unavailable

14

CYLINDER 1

8BU-11311-00-00

Unavailable

15

GASKET, CYLINDER

89A-11351-00-00

$11.99

16

BOLT, STUD (5X4)

90116-08392-00

Unavailable

17

BOLT (248-11361-00)

90116-08064-00

Unavailable

18

BOLT, STUD (24X)

90116-08409-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

20

NUT(55X)

90179-08491-00

$8.49

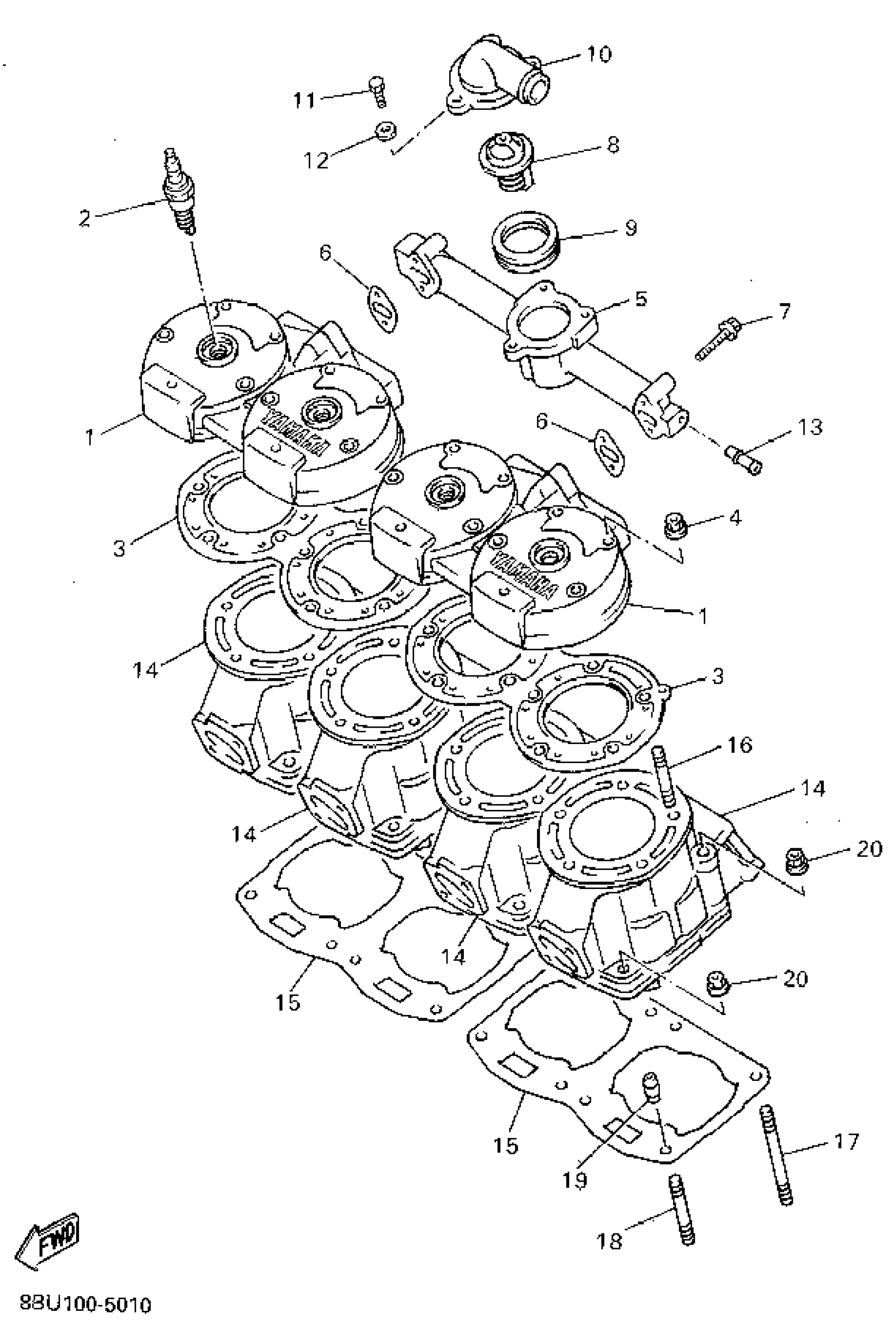

Yamaha VX800V (VMAX-4 800) 8BU1 1995 CYLINDER HEAD Diagram

HEAD, CYLINDER 1

BR9ES NGK SOLID TOP PLUG 4PK

GASKET, CYLINDER HEAD 1

NUT(55X)

JOINT 2

GASKET

BOLT, FLANGE

THERMOSTAT

SEAL, THERMOSTAT

COVER, THERMOSTAT

BOLT, HEXAGON

WASHER(6TA)

JOINT

CYLINDER 1

GASKET, CYLINDER

BOLT, STUD (5X4)

BOLT (248-11361-00)

BOLT, STUD (24X)

PIN, DOWEL(3VD)

NUT(55X)
