Description

Price

1

BUMPER, FRONT 1

89A-77511-00-00

Unavailable

2

STAY 4

8AX-77128-00-00

Unavailable

3

BUMPER, REAR 1

89A-77541-00-00

Unavailable

4

BUMPER, REAR 2

89A-77542-00-00

Unavailable

5

BOLT, HEXAGON

97017-08020-00

$9.49

6

WASHER(JN5)

92907-08100-00

$8.49

7

WASHER(6TC)

92907-08200-00

$8.49

8

BOLT, FLANGE

95817-06020-00

$3.81

9

NUT, NYLON

95707-06300-00

$3.50

10

WASHER, PLATE (8K2)

90201-06778-00

$4.46

11

FLAP

8V9-77595-00-00

Unavailable

12

RIVET, BLIND (8R6)

90267-48086-00

$4.14

13

PROTECTOR 1

82M-77551-00-00

Unavailable

14

RIVET (8M6)

90269-04025-00

$8.49

15

PROTECTOR 4

8AX-77554-00-00

Unavailable

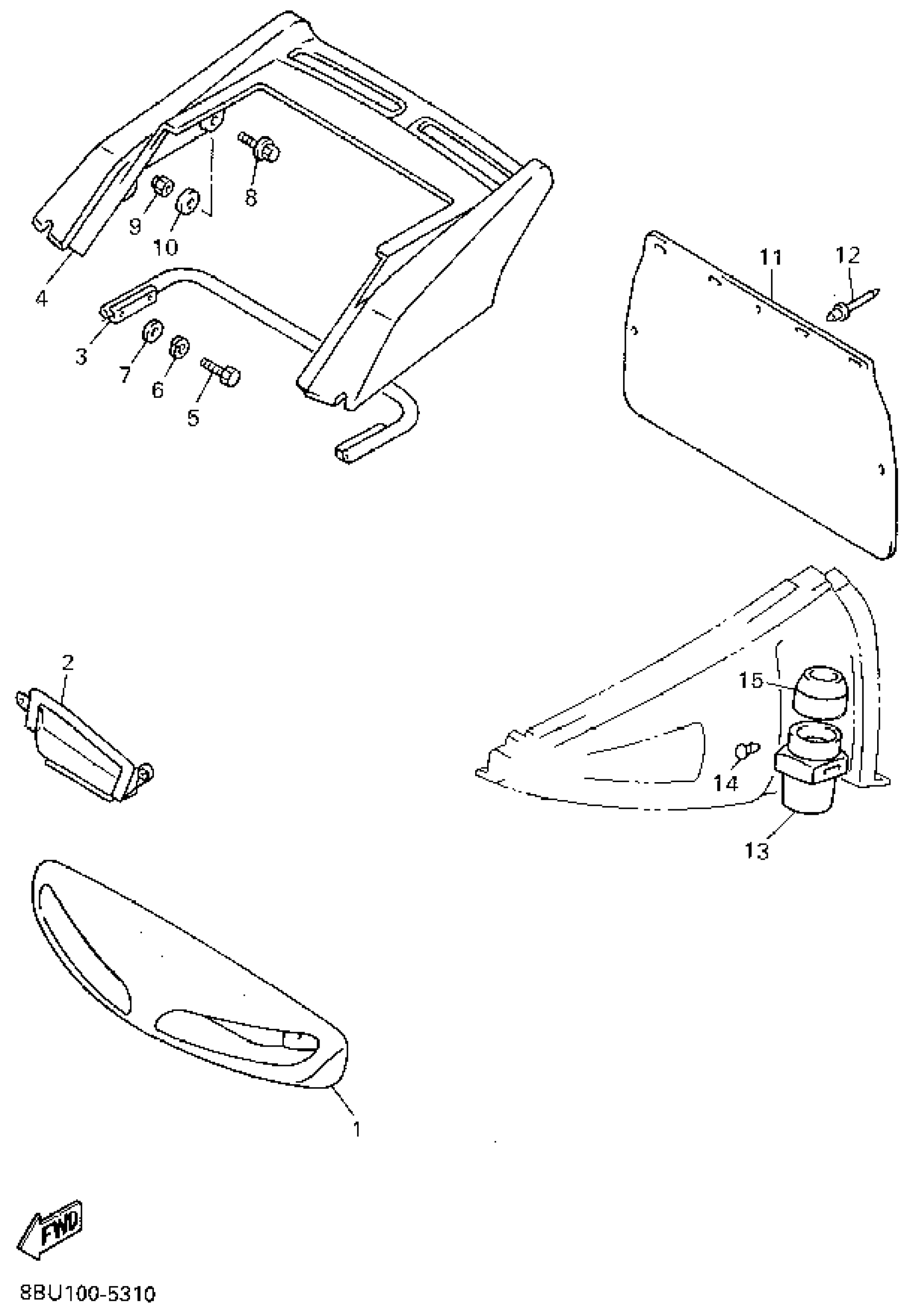

Yamaha VX800V (VMAX-4 800) 8BU1 1995 BUMPER Diagram

BUMPER, FRONT 1

STAY 4

BUMPER, REAR 1

BUMPER, REAR 2

BOLT, HEXAGON

WASHER(JN5)

WASHER(6TC)

BOLT, FLANGE

NUT, NYLON

WASHER, PLATE (8K2)

FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

RIVET (8M6)

PROTECTOR 4
