1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1996 Yamaha Vmax-4 Mountain MAX (VX800STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

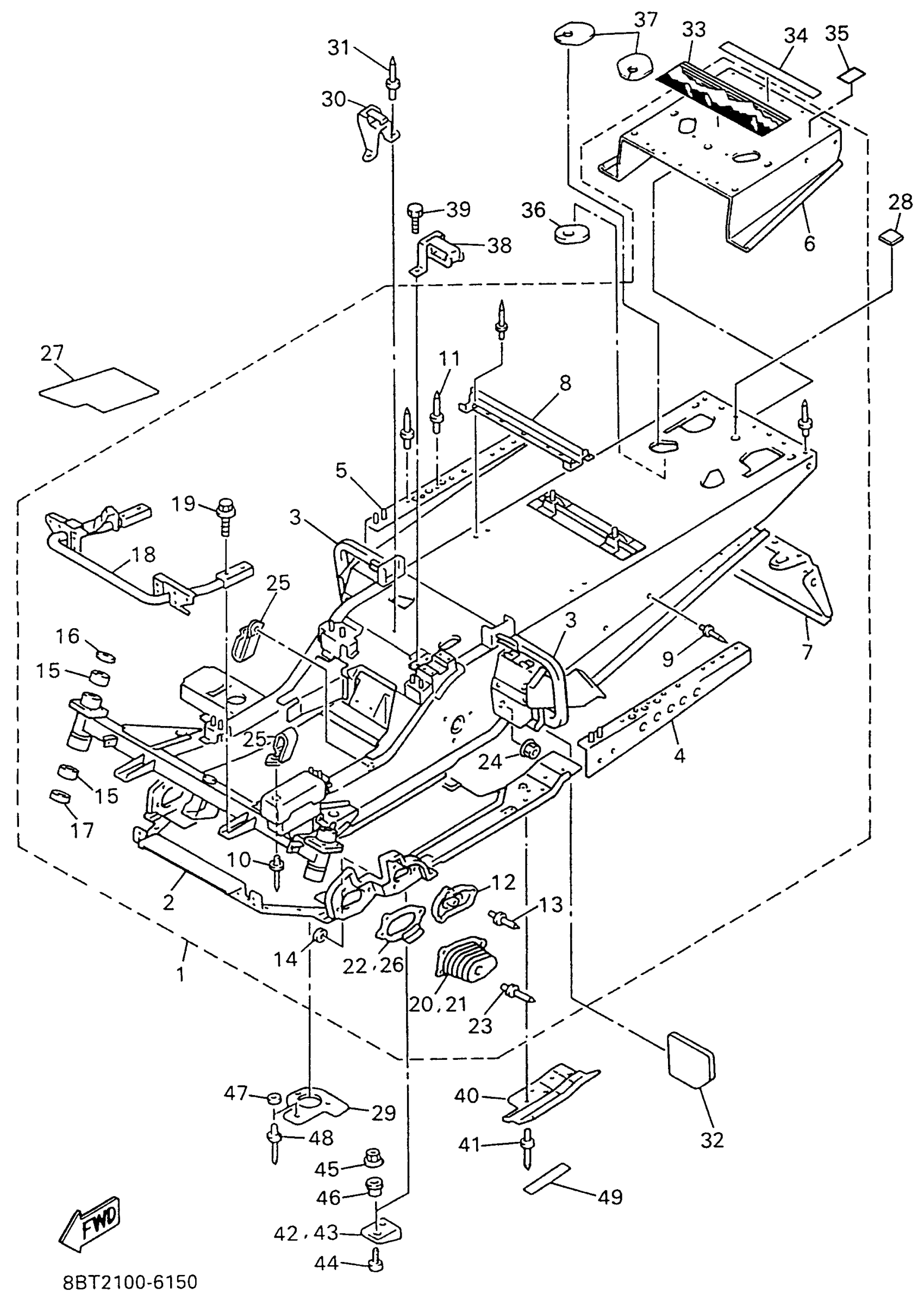

1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BT-21910-00-00

1
Out of stock

2

. PANEL, SUB FRAME 1

89A-21912-00-00

1
Out of stock

3

. REINFORCEMENT, FOOTREST 1

89A-21926-00-00

1
Out of stock

4

. PATCH 4

8AB-21964-00-00

1
Out of stock

5

. PATCH 5

8AB-21965-00-00

1
Out of stock

6

. PANEL, SUB FRAME 5

8BN-21916-00-00

1
Out of stock

7

RNFCMNT,FRAME REAR

89A-21923-20-00

1
Out of stock

8

. BRACKET, SEAT FITTING

8AB-21946-00-00

1
Out of stock

9

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

10

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

11

RIVET(89R)

90269-04044-00

—
Out of stock

12

COVER 1

8M6-2198F-00-00

1

$22.69

In stock

13

. RIVET, BLIND

90267-04325-00

1
Out of stock

14

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

15

. BUSH, SOLID

90380-38205-00

1
Out of stock

16

. OIL SEAL

93102-38441-00

1
Out of stock

17

. OIL SEAL

93103-38172-00

1
Out of stock

18

. BUMPER, FRONT 2

89A-77512-00-00

1
Out of stock

19

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

20

. COVER 1

89A-2198F-00-00

1
Out of stock

21

. COVER 3

89A-2198J-00-00

1
Out of stock

22

. WASHER 2

89A-77526-00-00

1
Out of stock

23

RIVET, BLIND (8M6)

90267-48051-00

—

$1.88

In stock

24

NUT, NYLON

95717-08300-00

—

$2.57

In stock

25

CLAMP(51Y)

90465-08277-00

—
Out of stock

26

. WASHER 1

89A-77525-00-00

1
Out of stock

27

SHIELD, HEAT

89A-2199H-01-00

1
Out of stock

28

DAMPER

5H0-8235Y-M0-00

—

$6.46

In stock

29

SHIELD, NOISE

89A-2199F-00-00

1
Out of stock

30

BRACKET 4

89A-2196G-00-00

1
Out of stock

31

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

32

COVER 2

89A-2198G-10-00

1
Out of stock

33

EMBLEM 1

8BH-77141-00-00

1
Out of stock

34

LABEL, WARNING 2

88X-77762-10-00

—

$23.32

In stock

35

SPACER

8BN-21998-00-00

1
Out of stock

36

PATCH 5

82M-21965-00-00

1
Out of stock

37

PATCH 5

88R-21965-00-00

1
Out of stock

38

BRACKET 3

89A-2196F-00-00

1
Out of stock

39

BOLT(4GV)

97017-05012-00

—

$6.17

In stock

40

FRAME UNDER 1

89A-2196A-01-00

1
Out of stock

41

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

42

PAD 1

89A-77151-00-00

1
Out of stock

43

PAD 2

89A-77152-00-00

1
Out of stock

44

SCREW, WITH WASHER (5U8)

90159-06056-00

—
Out of stock

45

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

46

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

47

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

48

RIVET, BLIND

90267-48018-00

1

$7.35

In stock

49

TRIM, LOWER

89A-77214-00-00

—

$6.66

In stock
