1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1996 Yamaha Vmax-4 Mountain MAX (VX800STW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

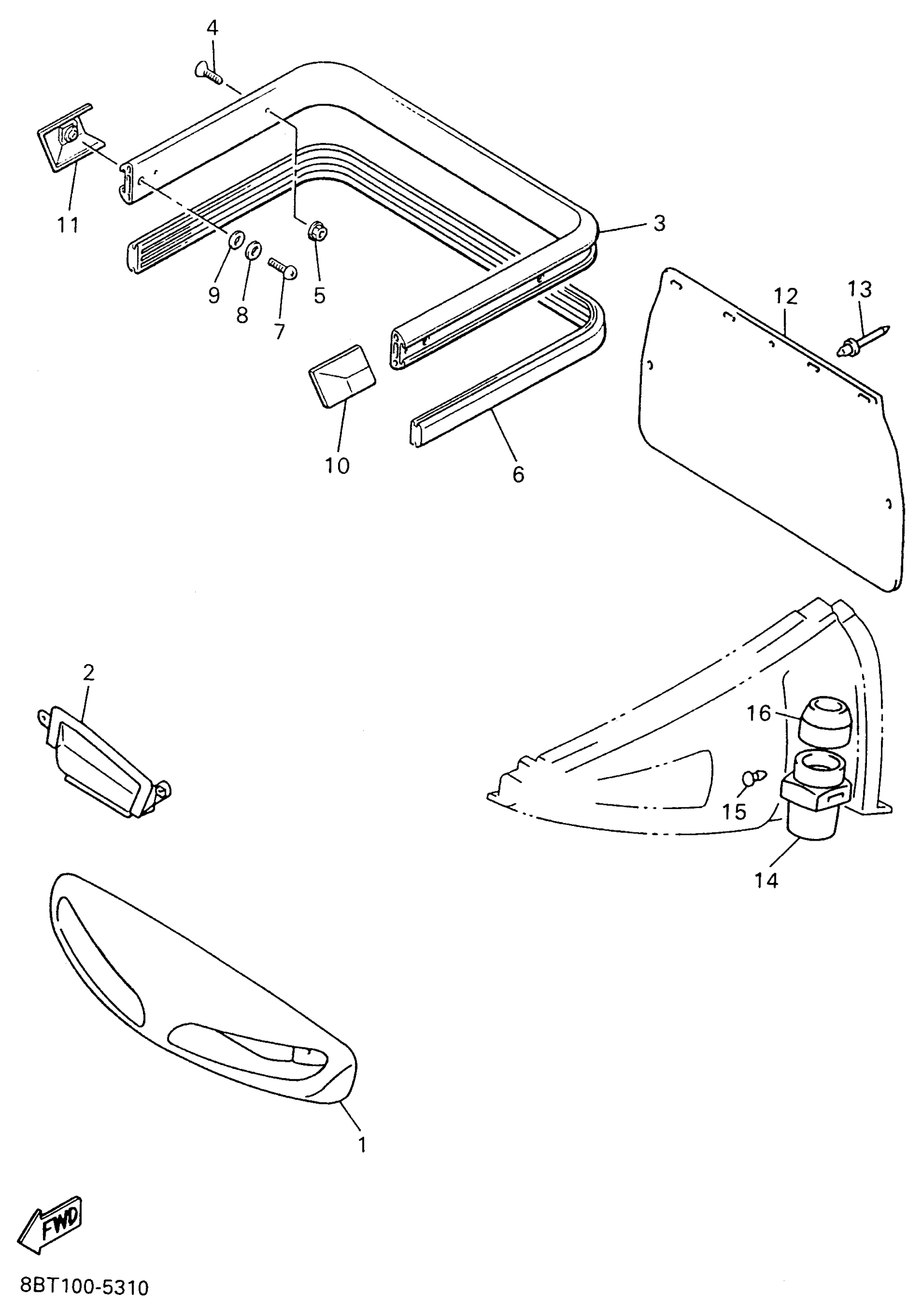

1996 Yamaha Vmax-4 Mountain MAX (VX800STW) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8AB-77511-00-00

1
Out of stock

2

STAY 4

8AX-77128-00-00

1
Out of stock

3

BUMPER, REAR 1

8BX-77541-00-00

1
Out of stock

4

SCREW,FLAT

98707-08025-00

1
Out of stock

5

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

6

BUSH, RUBBER 2

89L-77516-00-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

10

END, BUMPER

8N8-77523-00-00

1
Out of stock

11

END, BUMPER

8N8-77524-00-00

1
Out of stock

12

FLAP

8V9-77595-00-00

1
Out of stock

13

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock

14

PROTECTOR 1

82M-77551-00-00

1
Out of stock

15

RIVET (8M6)

90269-04025-00

1
Out of stock

16

PROTECTOR 4

8AX-77554-00-00

1
Out of stock
