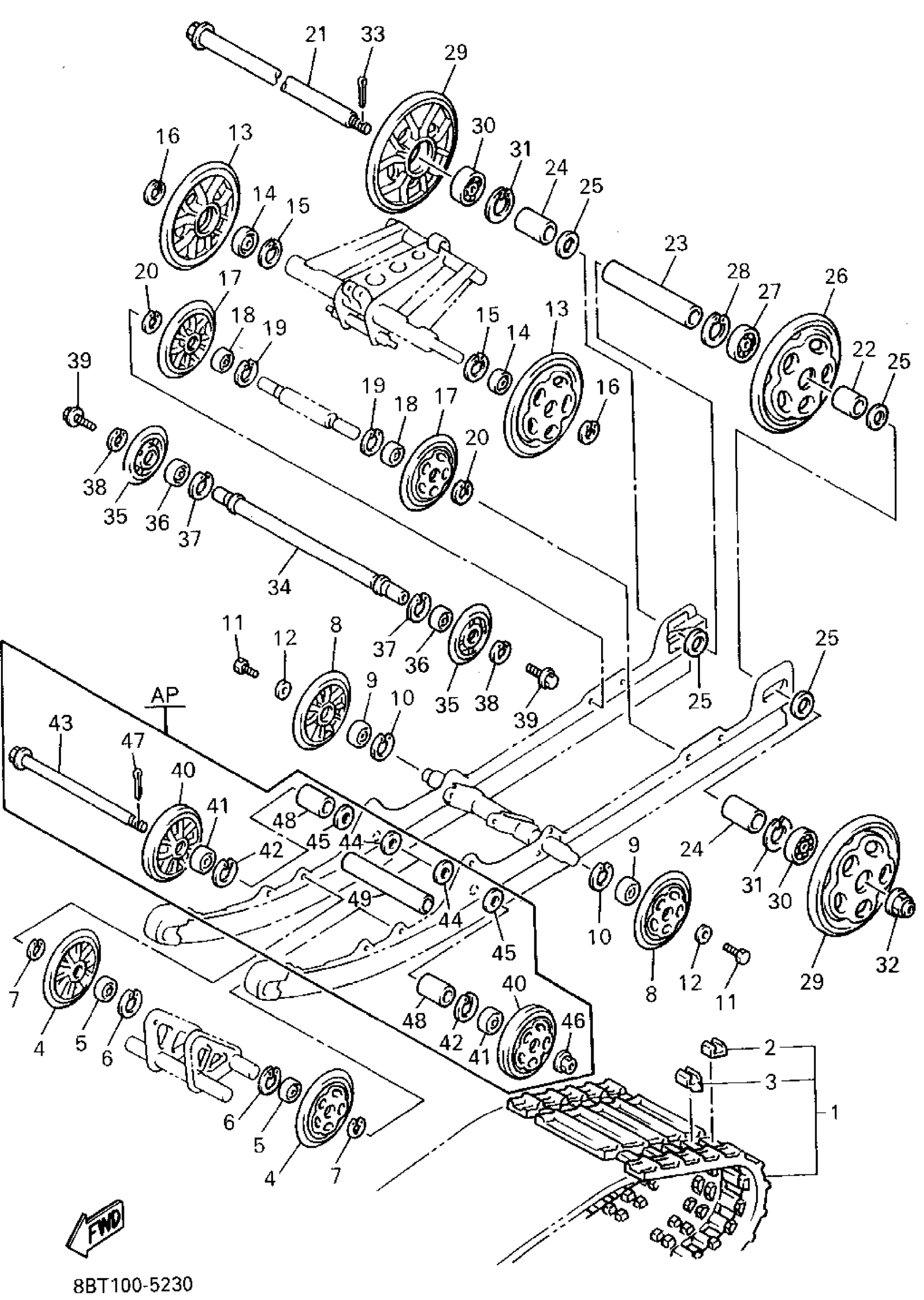

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

8BT-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

5

BEARING(8AB)

93306-00444-00

$34.26

6

CIRCLIP(5U8)

99009-42500-00

$6.32

7

CIRCLIP(1AR)

99009-20400-00

$5.75

8

SUSPENSION WHEEL COMP.

87U-47320-00-00

Unavailable

9

BEARING(8AB)

93306-00444-00

$34.26

10

CIRCLIP(5U8)

99009-42500-00

$6.32

11

BOLT (8K2)

90109-08559-00

$6.82

12

WASHER (8G1)

90201-08681-00

$6.12

13

SUSPENSION WHEEL COMP.

88R-47320-00-00

Unavailable

14

BEARING(8AB)

93306-00444-00

$34.26

15

CIRCLIP(5U8)

99009-42500-00

$6.32

16

CIRCLIP(1AR)

99009-20400-00

$5.75

17

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

18

BEARING(8AB)

93306-00444-00

$34.26

19

CIRCLIP(5U8)

99009-42500-00

$6.32

20

CIRCLIP(1AR)

99009-20400-00

$5.75

21

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

22

COLLAR

90387-204R3-00

Unavailable

23

COLLAR

90387-20023-00

Unavailable

24

COLLAR

90387-20022-00

Unavailable

25

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

26

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

27

BEARING(8AE)

93306-20469-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

GUIDE WHEEL COMP.

8M6-47530-00-00

Unavailable

30

BEARING(8AE)

93306-20469-00

Unavailable

31

CIRCLIP(48Y)

99009-47500-00

Unavailable

32

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

IDLER

89A-47461-01-00

Unavailable

35

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

36

BEARING(8AB)

93306-00444-00

$34.26

37

CIRCLIP(5U8)

99009-42500-00

$6.32

38

CIRCLIP(1AR)

99009-20400-00

$5.75

39

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

40

SUSPENSION WHEEL COMP.

87U-47320-00-00

Unavailable

41

BEARING(8AB)

93306-00444-00

$34.26

42

CIRCLIP(5U8)

99009-42500-00

$6.32

43

SHAFT 5

82M-47487-00-00

Unavailable

44

WASHER, PLATE

90201-164P0-00

Unavailable

45

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

46

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

47

PIN, COTTER

91490-30030-00

Unavailable

48

COLLAR

90387-166M8-00

Unavailable

49

COLLAR

90387-160M7-00

Unavailable
