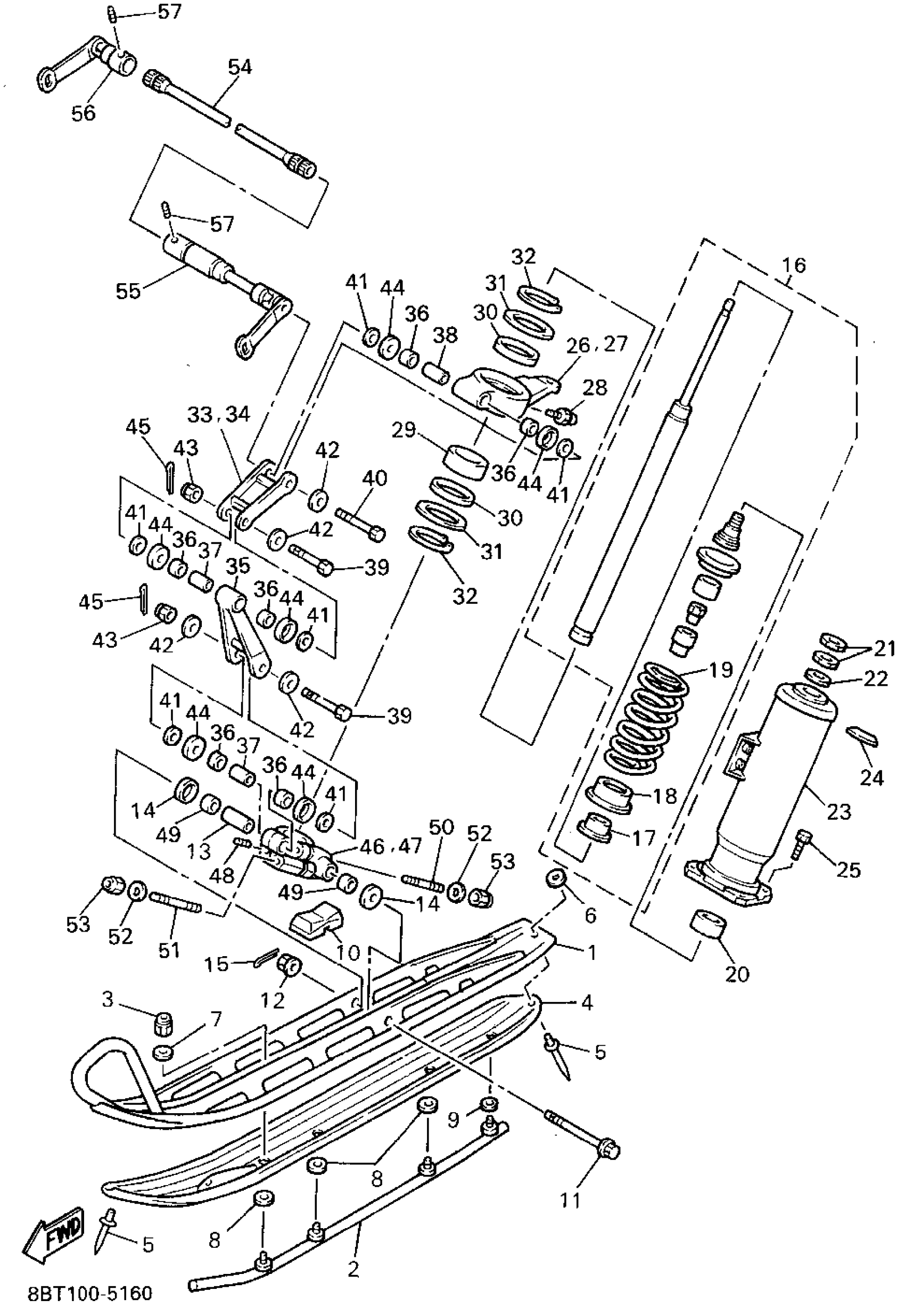

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 SKI Diagram
#
1
SKI 1
8AX-23710-00-00
Unavailable
2
RUNNER 1 (89A-23731-11-00)
89A-23731-10-XX
Unavailable
3
NUT, NYLON
95717-08300-00
$2.70
4
SKISKINS RED VMAX4
89A-23732-01-XX
Unavailable
5
RIVET, BLIND(89A)
90267-48160-00
$7.49
6
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
Unavailable
7
WASHER (853)
90201-08326-00
$8.49
8
WASHER, PLATE(J40)
90201-08455-00
$4.82
9
WASHER PLATE 141181390000
90201-08085-00
$9.49
10
STOPPER 1
89A-23743-00-00
Unavailable
11
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
COLLAR
90387-102Y0-00
Unavailable
14
SPACER
89A-23787-00-00
Unavailable
15
PIN, COTTER
91490-20025-00
$1.99
16
DAMPER SUB-ASSY.
8BU-22401-00-00
Unavailable
17
. SEAT, SPRING UPPER
87F-22213-00-00
Unavailable
18
. SEAT, SPRING 2
8AX-23777-00-00
Unavailable
19
. SPRING, COMPRESSION
90501-852J9-00
Unavailable
20
. WASHER
8AX-23779-00-00
Unavailable
21
NUT(3MA)
90170-18392-00
Unavailable
22
WASHER(8BT)
92907-18200-00
Unavailable
23
HOLDER, ABSORBER L
8AX-2376J-01-00
Unavailable
23
HOLDER, ABSORBER R
8AX-2377J-01-00
Unavailable
24
INDICATOR 2
8AX-77742-00-00
Unavailable
25
BOLT, HEXAGON
97017-06020-00
Unavailable
26
ARM, OUTSIDE 1
89A-23851-00-00
Unavailable
27
ARM, OUTSIDE 2
89A-23852-00-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
BUSH, BIMETAL FORMED
90384-55227-00
Unavailable
30
OIL SEAL
93109-55063-00
Unavailable
31
WASHER, PLATE
90201-555P8-00
Unavailable
31
WASHER, PLATE
90201-555P9-00
Unavailable
32
CIRCLIP(4BB)
99009-55400-00
Unavailable
33
ARM, FRONT 1
89A-2382E-00-00
Unavailable
34
ARM, FRONT 4
89A-2383F-00-00
Unavailable
35
ARM, FRONT 2
89A-2382F-00-00
Unavailable
36
BEARING, STEERING UPPER
89A-23873-00-00
Unavailable
37
COLLAR(89A)
90387-101Y9-00
Unavailable
38
COLLAR
90387-101Y8-00
Unavailable
39
BOLT, WITH HOLE
90102-10077-00
Unavailable
40
BOLT
90101-10743-00
Unavailable
41
WASHER, PLATE (8M6)
90201-105A8-00
Unavailable
42
WASHER, PLATE (8M6)
90201-115A7-00
Unavailable
43
NUT, SELF LOCKING (3G1)
90185-10091-00
Unavailable
44
WASHER(82M)
90209-14296-00
Unavailable
45
PIN, COTTER
91490-20025-00
$1.99
46
BRACKET 1
89A-2376E-00-00
Unavailable
47
BRACKET 2
89A-2377E-00-00
Unavailable
48
BOLT, SET (8K2)
90113-06039-00
Unavailable
49
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
50
BOLT, STUD 3
95617-08655-00
Unavailable
51
BOLT, STUD 3
95617-08640-00
Unavailable
52
WASHER(6TA)
92907-08600-00
Unavailable
53
NUT, NYLON
95717-08300-00
$2.70
54
BAR, STABILIZER FRONT
89A-2386E-00-00
Unavailable
55
JOINT, STABILIZER 1
8BU-2385L-00-00
Unavailable
56
JOINT, STABILIZER2
8BU-2385M-00-00
Unavailable
57
BOLT, SET (8K2)
90113-06039-00
Unavailable
