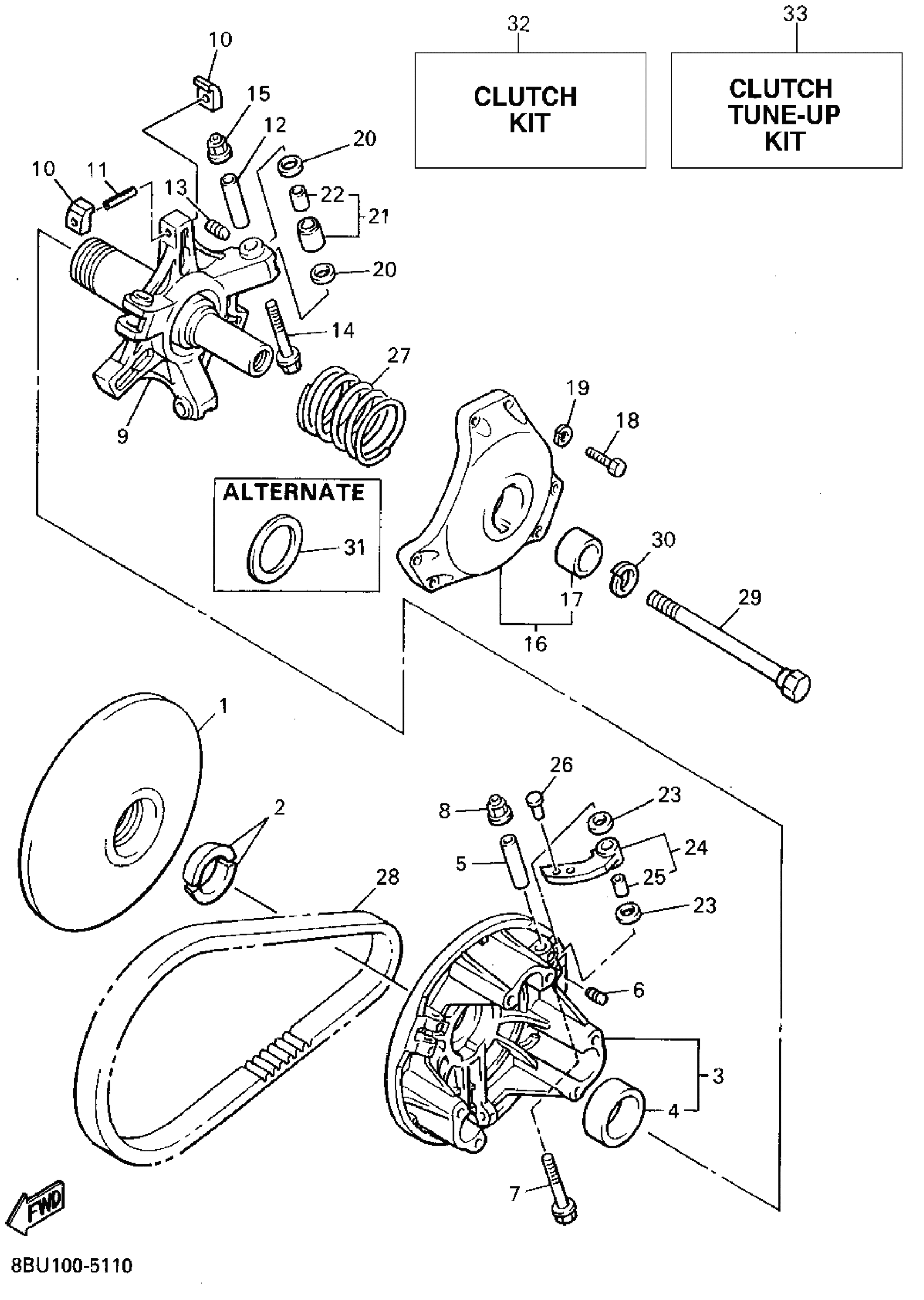

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8BV-17611-19-00

Unavailable

2

STOPPER

8V0-17639-00-00

$14.99

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$437.99

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, SET

90113-05041-00

$8.49

7

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

8

NUT, S/L FLANGE

95607-05200-00

$9.49

9

SPIDER COMPLETE

8BW-17640-11-00

Unavailable

10

SLIDER

8BW-17653-00-00

$16.49

11

PIN, SPRING (7F7)

91609-50032-00

$4.14

12

COLLAR

90387-0514T-00

$16.99

13

BOLT, SET

90113-05041-00

$8.49

14

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

Unavailable

17

. BUSH, BIMETAL FORMED

90384-28244-00

Unavailable

18

BOLT, FLANGE

95817-06030-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

WASHER, PLATE(88R)

90202-08204-00

Unavailable

21

ROLLER, COMP

8BH-17624-10-00

Unavailable

21

ROLLER, COMP

8BH-17624-20-00

Unavailable

22

. BUSH, SOLID

90380-08244-00

Unavailable

22

. BUSH, SOLID

90380-08229-00

Unavailable

23

WASHER, PLATE(88R)

90202-08204-00

Unavailable

24

WEIGHT COMP

8BU-17605-00-00

Unavailable

25

. BUSH, SOLID

90380-08244-00

Unavailable

26

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

Unavailable

26

RIVET, COUNTER SUNK (8G8)

90261-06017-00

Unavailable

26

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

Unavailable

26

RIVET, COUNTERSUNK HEAD(88R)

90261-06028-00

Unavailable

26

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

26

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

Unavailable

27

SPRING, COMPRESSION(89L)

90501-521J6-00

Unavailable

27

PRIMARY SPRING

90501-525J8-00

Unavailable

27

SPRING, COMPRESSION(8AV)

90501-550J8-00

Unavailable

27

SPRING, COMPRESSION(8AY)

90501-582J1-00

Unavailable

27

SPRING, COMPRESSION(8CG)

90501-585J3-00

Unavailable

27

SPRING, COMPRESSION(8AY)

90501-602J0-00

Unavailable

27

SPRING, COMPRESSION(8CG)

90501-605J5-00

Unavailable

28

V-BELT

8BU-17641-01-00

Unavailable

29

. BOLT (L=1653MM)

88R-17647-00-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable

31

WASHER, PLATE(88S)

90201-483P9-00

Unavailable

32

CLUTCH ASSY

8BU-17601-19-00

Unavailable

33

CLUTCH TUNE-UP KIT

8AB-00000-52-00

Unavailable
