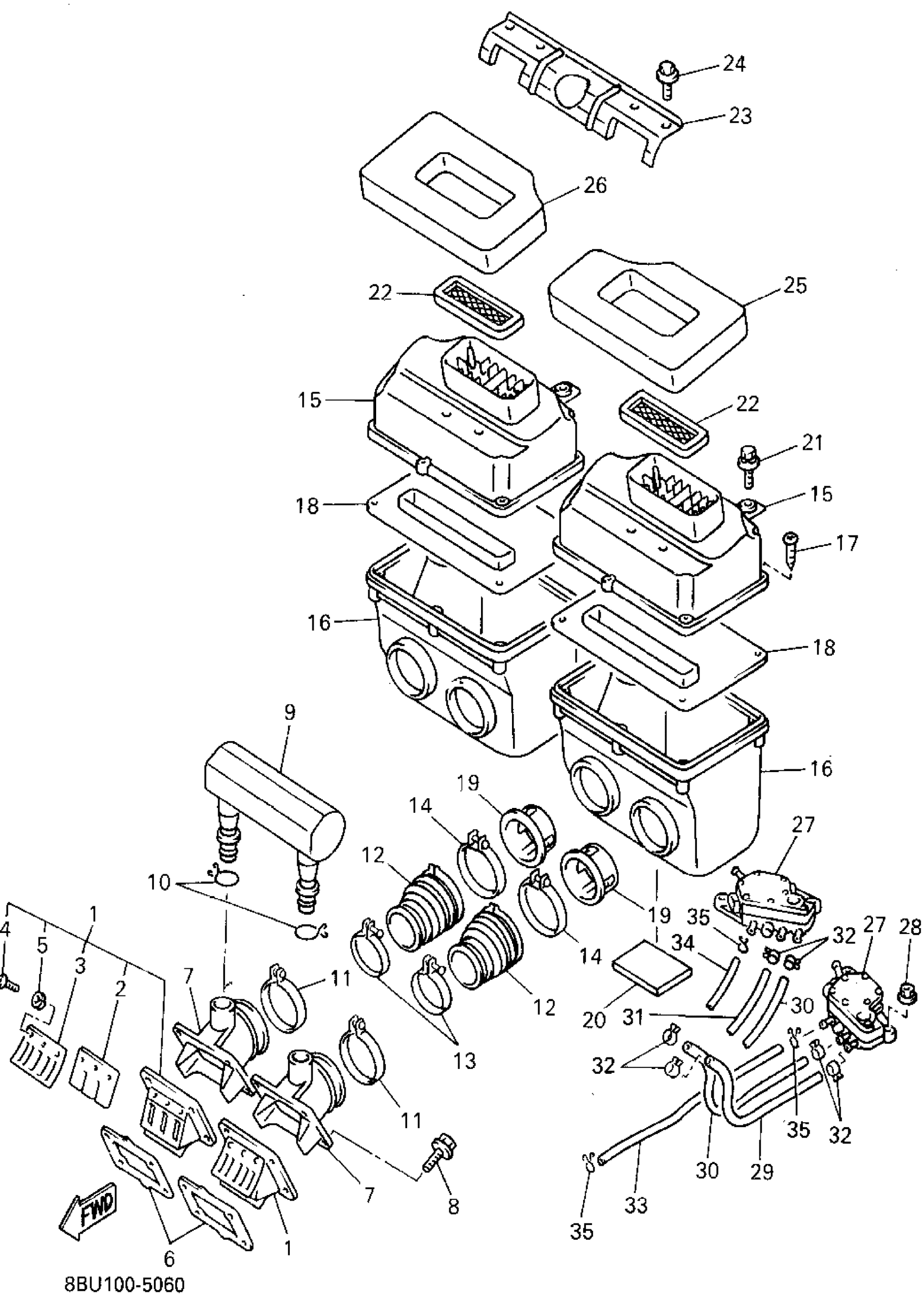

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 INTAKE Diagram
#
1
REED VALVE ASSEMBLY
2VN-13610-00-00
Unavailable
2
. REED, VALVE
1RX-13613-00-00
Unavailable
7
MANIFOLD, INTAKE
8BU-13555-00-00
Unavailable
8
BOLT, FLANGE
95817-06025-00
Unavailable
9
CHAMBER, AIR
89A-13581-00-00
Unavailable
10
CLIP
90467-20M15-00
Unavailable
12
JOINT, AIR CLEANER 1
89A-14453-00-00
Unavailable
15
SILENCER, INTAKE 1
89A-14431-00-00
Unavailable
16
SILENCER, INTAKE 2
89A-14441-00-00
Unavailable
17
SCREW, TAPPING(82M)
90167-05043-00
Unavailable
18
PLATE
89A-14477-00-00
Unavailable
19
PIPE
89A-14465-00-00
Unavailable
20
PROTECTOR
89A-1442F-00-00
Unavailable
21
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
22
ELEMENT, AIR CLEANER
8BU-14451-00-00
Unavailable
23
STAY 1
89A-14493-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
DAMPER 1
89A-14425-00-00
Unavailable
26
DAMPER 2
89A-14426-00-00
Unavailable
27
FUEL PUMP ASSY
89A-24410-01-00
Unavailable
28
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
29
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
30
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
31
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
32
CLIP (8A1)
90467-09026-00
Unavailable
33
HOSE (L450)
90445-10144-00
Unavailable
34
HOSE (L450)
90445-10144-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
