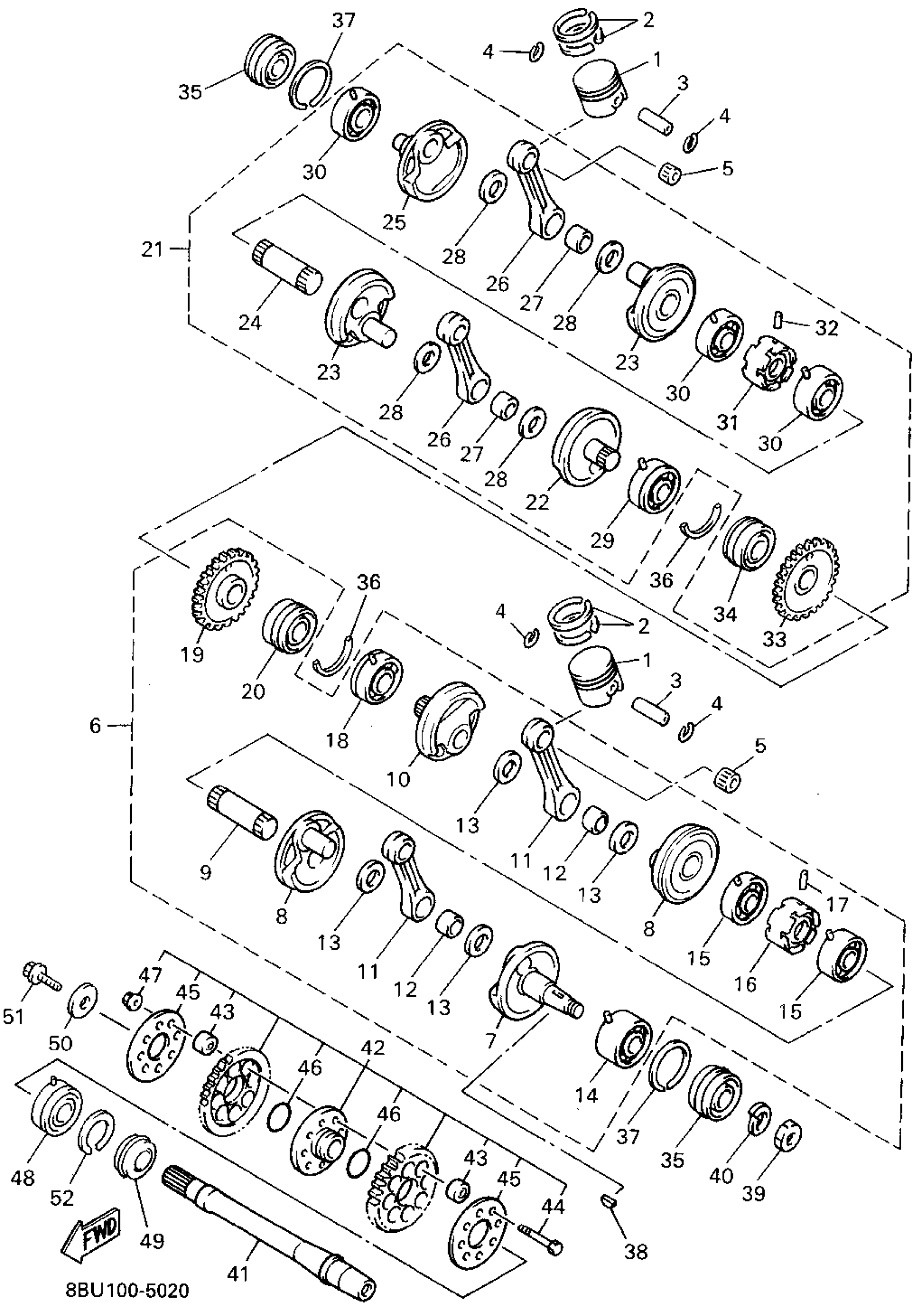

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 CRANKSHAFT PISTON Diagram

#

Description

Price

1

PISTON (STD)

8BU-11631-00-93

Unavailable

2

PISTON RING SET (STD)

8DG-11603-00-00

$63.99

3

PIN, PISTON

81E-11633-00-00

Unavailable

4

CIRCLIP (2F1)

93450-19052-00

$7.49

5

BEARING, CYLINDRICAL

93310-318P4-00

Unavailable

6

CRANKSHAFT

8BU-11410-00-00

Unavailable

7

. CRANK 1

8BU-11412-00-00

Unavailable

8

. CRANK 2

8BU-11422-00-00

Unavailable

9

. CRANK 3

89A-11431-00-00

Unavailable

10

. CRANK 4

8BU-11442-00-00

Unavailable

11

. ROD, CONNECTING

8BU-11651-00-00

Unavailable

12

BEARING, CYLINDRICAL(8BT)

93310-524P8-00

$74.99

13

WASHER(3XV)

90209-24317-00

Unavailable

14

. BEARING

93305-20606-00

Unavailable

15

. BEARING

93306-20643-00

Unavailable

16

. SEAL, LABYRINTH 1

89A-11515-00-00

Unavailable

17

PIN, SPRING (663)

91690-30010-00

Unavailable

18

BEARING

93306-30571-00

Unavailable

19

. GEAR, 1

8BU-11543-00-00

Unavailable

20

. OIL SEAL

93103-40174-00

Unavailable

21

CRANKSHAFT

8BU-11420-00-00

Unavailable

22

. CRANK 4

8BU-11442-00-00

Unavailable

23

. CRANK 2

8BU-11422-00-00

Unavailable

24

. CRANK 3

89A-11431-00-00

Unavailable

25

. CRANK 5

8BU-11452-00-00

Unavailable

26

. ROD, CONNECTING

8BU-11651-00-00

Unavailable

27

BEARING, CYLINDRICAL(8BT)

93310-524P8-00

$74.99

28

WASHER(3XV)

90209-24317-00

Unavailable

29

BEARING

93306-30571-00

Unavailable

30

. BEARING

93306-20643-00

Unavailable

31

. SEAL, LABYRINTH 1

89A-11515-00-00

Unavailable

32

PIN, SPRING (663)

91690-30010-00

Unavailable

33

. GEAR, 1

8BU-11543-00-00

Unavailable

34

. OIL SEAL

93103-40174-00

Unavailable

35

OIL SEAL

93103-30175-00

Unavailable

36

CIRCLIP

278-17424-01-00

Unavailable

37

CIRCLIP(MF1)

99009-62500-00

Unavailable

38

KEY, WOODRUFF (8R9)

90280-05033-00

Unavailable

39

NUT

90170-16425-00

Unavailable

40

WASHER(JN5)

92907-16100-00

Unavailable

41

SHAFT 1

8BU-11455-00-00

Unavailable

42

PRIMARY DRIVEN GEAR COMP.

8BU-16150-00-00

Unavailable

43

. ABSORBER

8BU-16165-00-00

Unavailable

44

. BOLT

90101-08557-00

Unavailable

45

. PLATE, SIDE

89A-16158-00-00

Unavailable

46

O-RING(7JV)

93210-32695-00

Unavailable

47

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

48

BEARING(89A)

93305-20509-00

Unavailable

49

OIL SEAL

93102-30435-00

Unavailable

50

WASHER, PLATE

90201-101P4-00

Unavailable

51

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

52

CIRCLIP (256)

93440-52014-00

Unavailable
