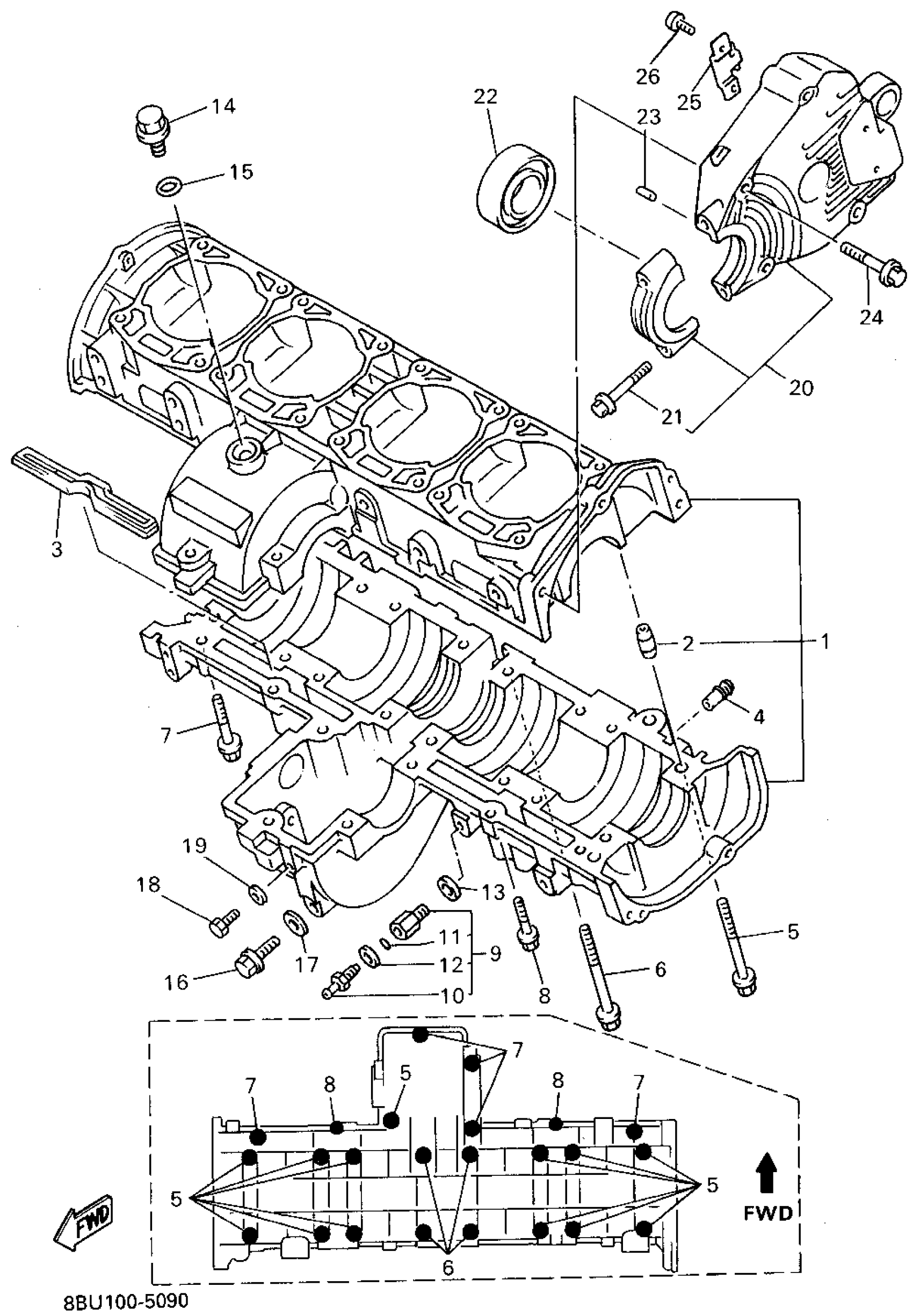

Yamaha VX800STV (VMAX-4 ST (LONG TRACK)) 1995 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

8BU-15100-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PLATE

89A-15113-00-00

Unavailable

4

JOINT, BREATHER

J38-11116-00-00

$3.80

5

BOLT, FLANGE(8BN)

95817-08085-00

$4.08

6

BOLT, FLANGE(8BT)

95817-08095-00

$4.24

7

BOLT, FLANGE

95817-08050-00

$2.44

8

BOLT, FLANGE

95817-06035-00

$7.49

9

DRAIN COCK ASSEMBLY.

89A-12560-00-00

Unavailable

10

. COCK, DRAIN

89A-12478-00-00

Unavailable

11

. O-RING

93210-041A6-00

Unavailable

12

WASHER(6TA)

92907-10600-00

$8.49

13

GASKET (5R6)

90430-10171-00

$3.18

14

PLUG, STRAIGHT SCREW

90340-14119-00

Unavailable

15

O-RING (26H)

93210-14579-00

$7.49

16

BOLT, SMALL FLANGE

95027-10016-00

Unavailable

17

GASKET (5R6)

90430-10171-00

$3.18

18

BOLT(3JP)

97017-06010-00

Unavailable

19

WASHER, SEAL (7G5)

90210-06006-00

Unavailable

20

CRANKCASE COVER ASSEMBLY 1

89A-15410-02-00

Unavailable

21

BOLT, FLANGE

95817-08050-00

$2.44

22

BEARING(89A)

93306-20640-00

Unavailable

23

PIN STRAIGHT 257185520000

90250-06013-00

Unavailable

24

BOLT, FLANGE

95817-08055-00

Unavailable

25

CLAMP 2

89A-15484-00-00

Unavailable

26

SCREW, PAN

98517-05012-00

Unavailable
