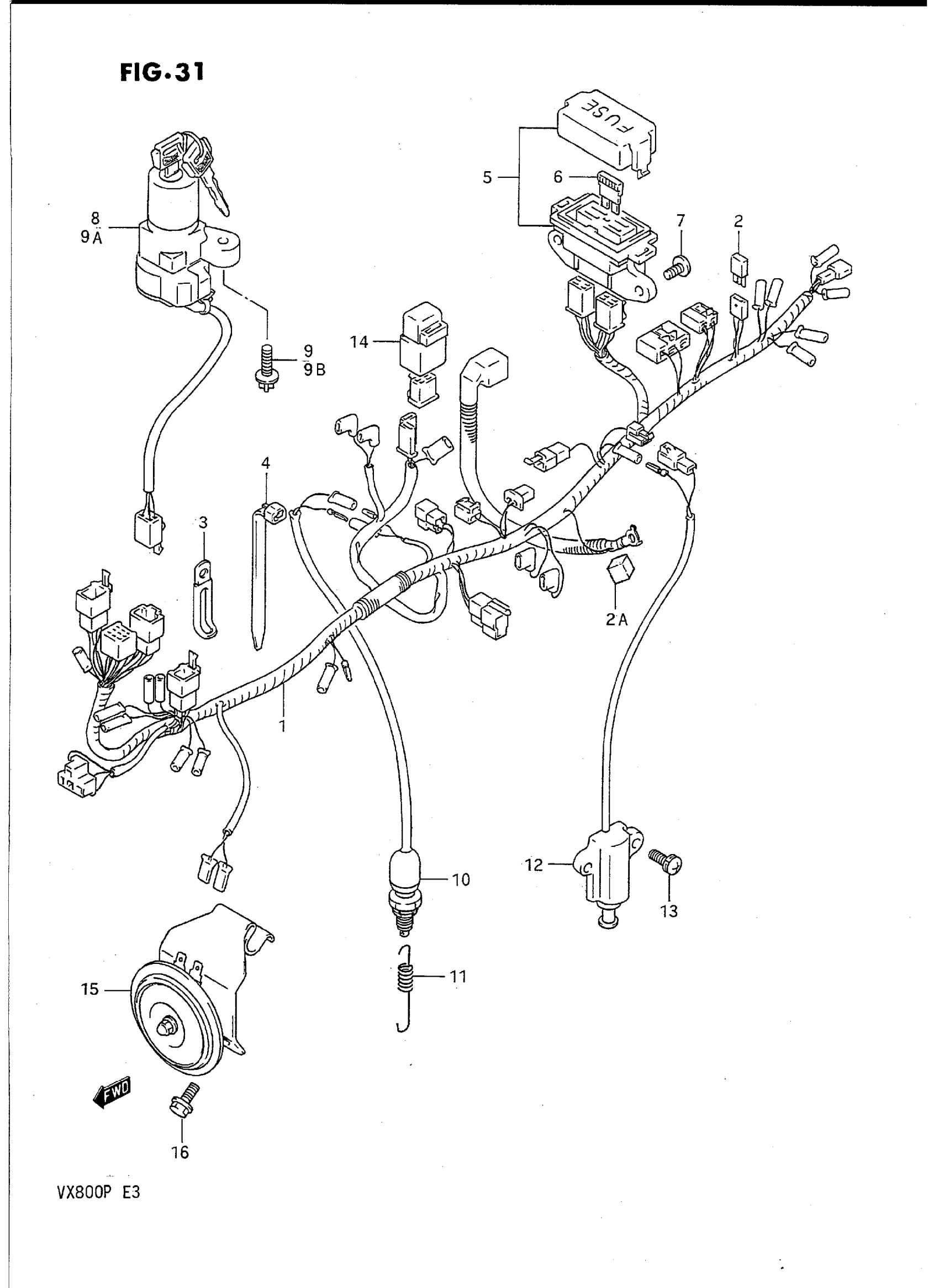

Suzuki VX800P (1993) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL L/M/N

36610-45C20

Unavailable

1

HARNESS, WIRING | MODEL P; Includes Item(s) 2 - 2A

36610-45C60

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

2A

CAP, BATTERY (+) TERMINAL This part replaces 33624-27A00.

33624-43500

$5.50

3

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

3

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

3

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

3

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

3

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

3

CLAMP This part replaces 09404-08403.

09404-08420

$3.16

4

CLAMP

09407-10404

$2.90

4

CLAMP

09407-14403

$2.26

4

CLAMP

09407-12402

$3.04

4

CLAMP

09407-18402

$2.19

5

FUSE BOX ASSY | Includes Item(s) 6 - 6 This part replaces 36740-34C01.

36740-10D10

Unavailable

6

FUSE (10A)

09481-10101

$2.07

6

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

7

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

8

LOCK ASSY, STEERING | MODEL L; Includes Item(s) 9 This part replaces 37100-17C00.

37100-26D03

$194.77

9

BOLT | MODEL L

09139-06026

$2.50

9A

LOCK ASSY, STEERING | MODEL M This part replaces 37100-17C01.

37100-26D03

$194.77

9A

LOCK ASSY, STEERING | MODEL N This part replaces 37100-17C02.

37100-26D03

$194.77

9A

LOCK ASSY, STEERING | MODEL P This part replaces 37100-33D00.

37100-26D03

$194.77

9B

BOLT | MODEL M/N/P

09139-06026

$2.50

10

SWITCH ASSY, STOP LAMP | MODEL L/M/N

37740-04A10

$23.32

10

SWITCH ASSY, STOP LAMP | MODEL P

37740-45D00

$18.27

11

SPRING This part replaces 09443-06043.

09443-06073

$3.42

12

SWITCH ASSY,SID This part replaces 37840-20A11.

37840-44X52

$57.00

13

SCREW This part replaces 02112-76165.

02112-7616A

$2.12

14

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

$45.20

15

NO DESCRIPTION AVAILABLE This part replaces 38500-45C00.

38500-45C01

Unavailable

16

BOLT | MODEL L/M/N This part replaces 01517-06128.

01550-06127

$2.30

16

BOLT | MODEL P This part replaces 01134-06125.

01570-0612A

$2.63
